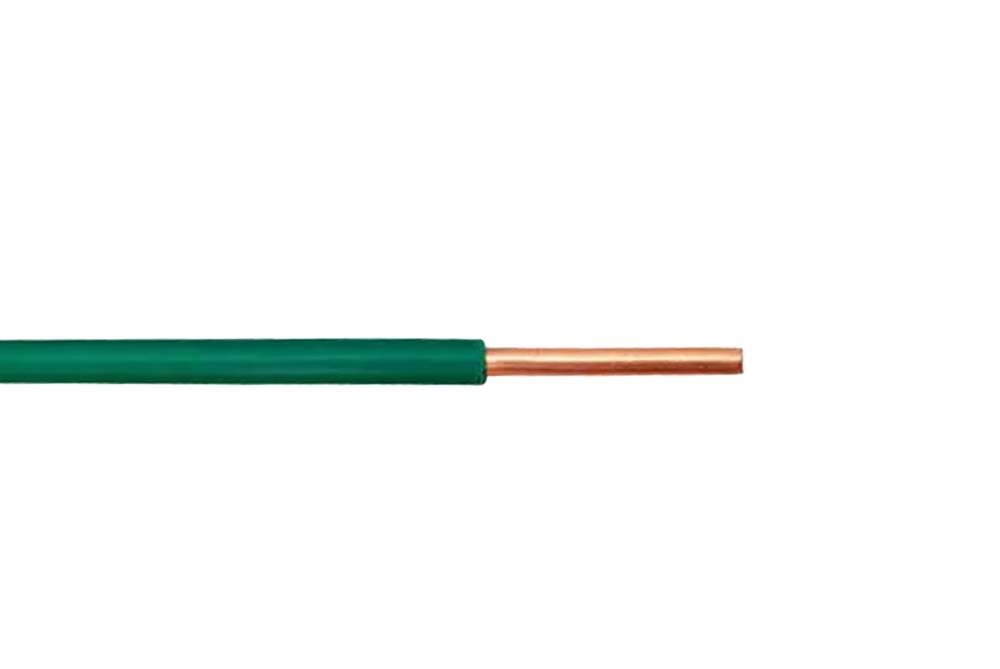

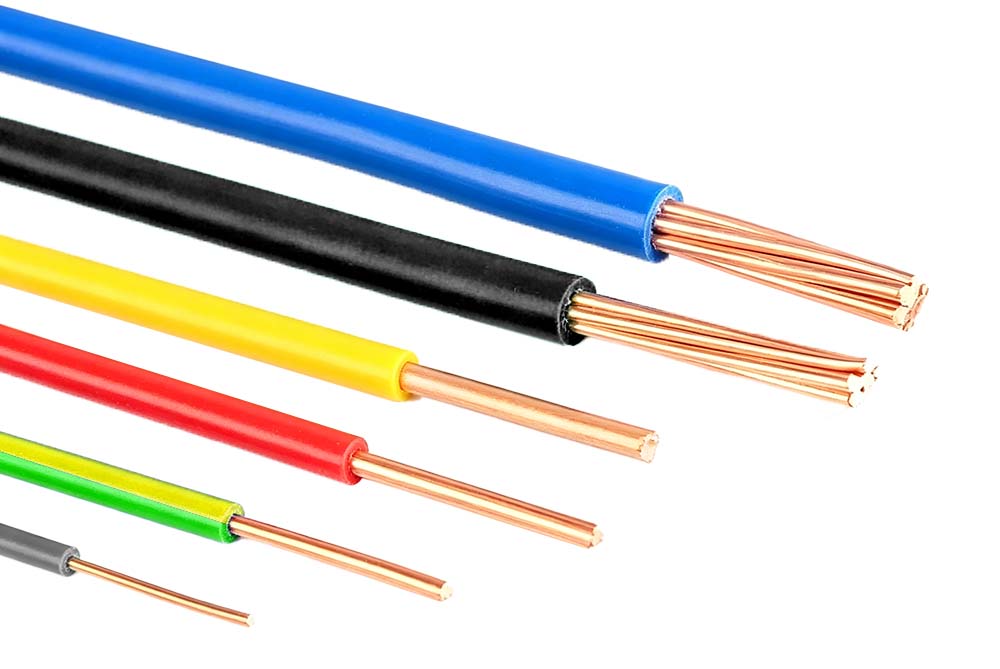

H07V-R / H07V-U Cable
Voltage:	450/750V
Structure:	Conductor	Class 2 stranded copper conductor
	Insulation	PVC (Polyvinyl Chloride)
	Insulation Colour	Red Black Blue Yellow White Green/Yellow Grey Brown

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

H07V-R/H07V-U is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

Voltage Rating Uo/U

450/750V

Temperature Rating

-15°C to +70°C

Minimum Bending Radius

Up to 10mm²: 3 x overall diameter

10mm² to 25mm²: 4 x overall diameter

Above 25mm²: 5 x overall diameter

STANDARDS

EN 50525-2-31

Flame Retardant according to IEC/EN 60332-1-2

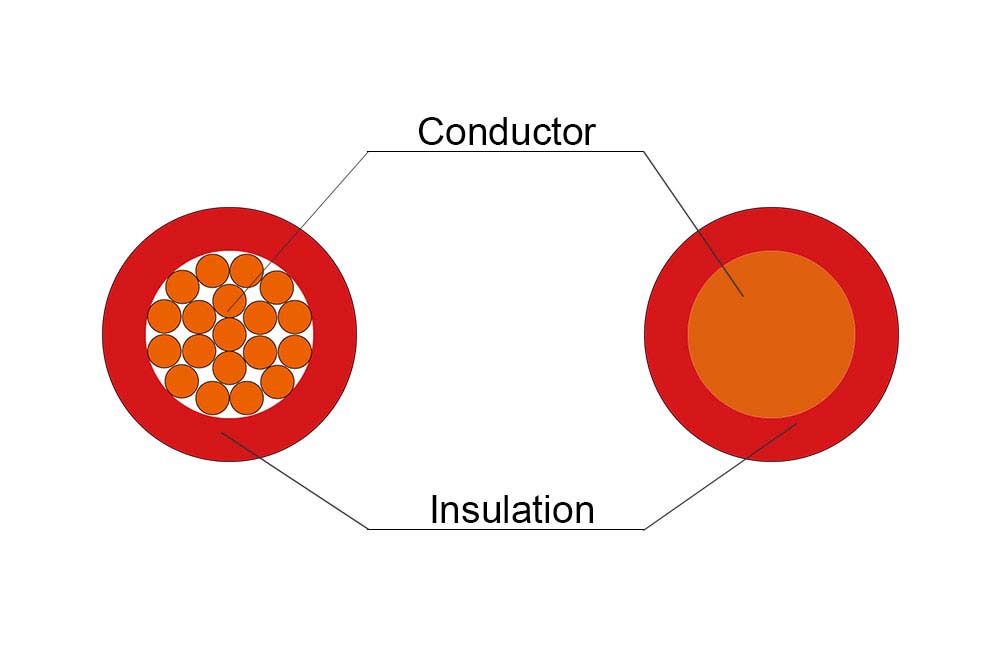

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Insulation

PVC (Polyvinyl Chloride)

Insulation Colour

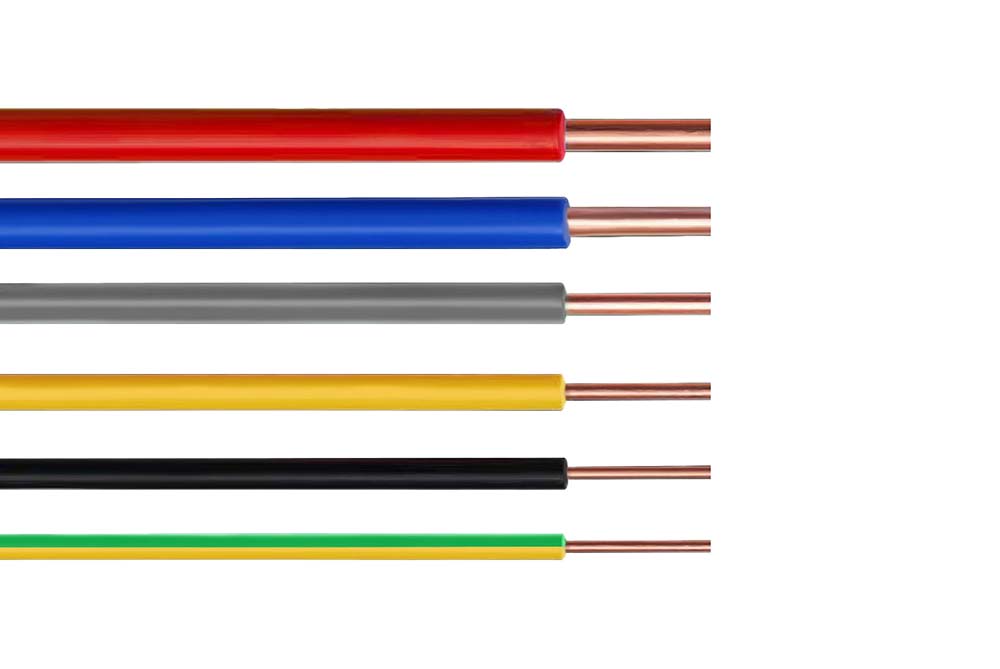

Red Black Blue Yellow White Green/Yellow Grey Brown

Note

5mm² to 10mm² also available as H07V-U Class 1 solid copper conductor

NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
mm2	mm	mm	kg/km
1.5	0.7	2.9	22
2.5	0.8	3.6	32
4	0.8	4.1	50
6	0.8	4.7	71
10	1	5.9	110
16	1	6.8	164
25	1.2	8.4	256
35	1.2	9.4	346
50	1.4	11	473
70	1.4	12.7	674
95	1.6	14.7	913
120	1.6	16.2	1150
150	1.8	18	1416
185	2	20	1749
240	2.2	23	2317
300	2.4	25.2	3049
400	2.6	28.4	3657
500	2.8	31.8	4700
630	2.8	38.1	5890

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
