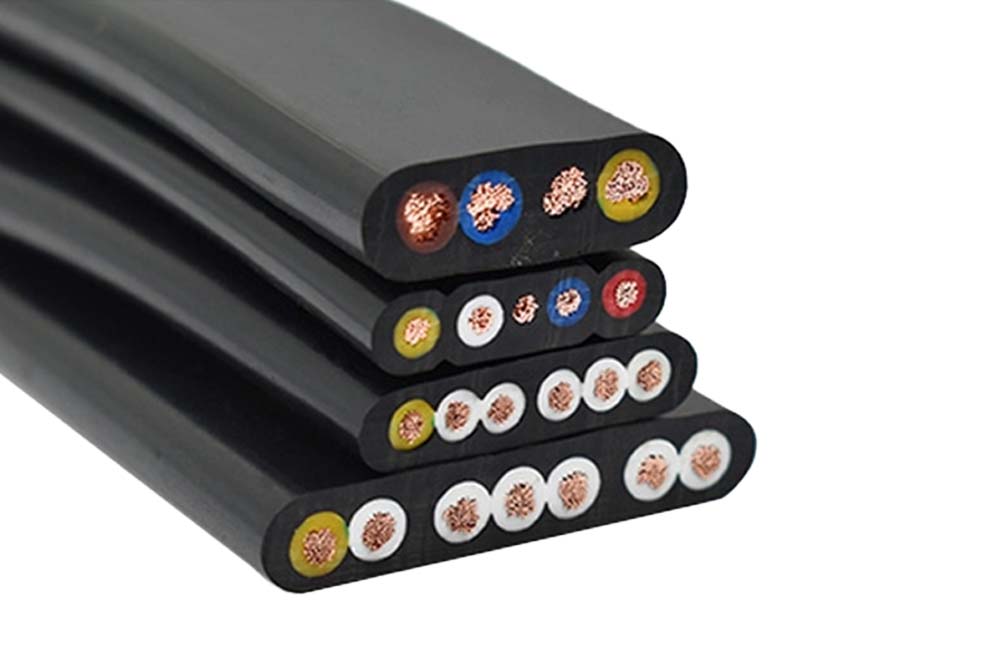

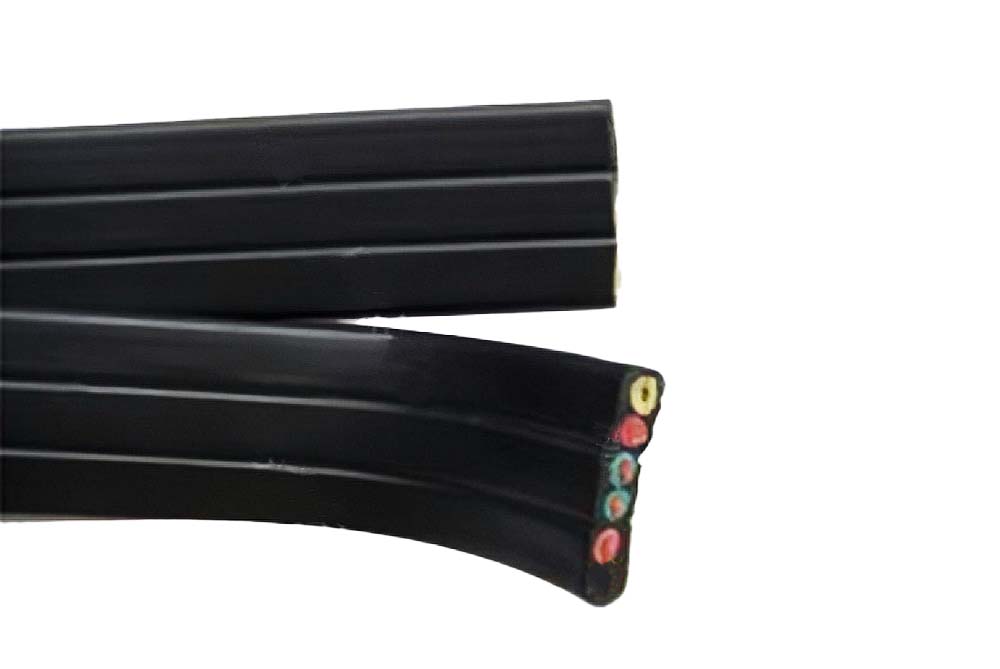

H07RNH6-F Cable
Voltage:	450/750V
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	Rubber
	Sheath	Rubber
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

This cable is used for outdoor medium-sized mobile electrical equipment and tools. It has the characteristics of softness, and has certain weather resistance and certain oil resistance, it also can be used outdoors.

Voltage Rating Uo/U

450/750V

Temperature Rating

- 15°C to +60°C

STANDARDS

IEC 60245-4, IEC 60228

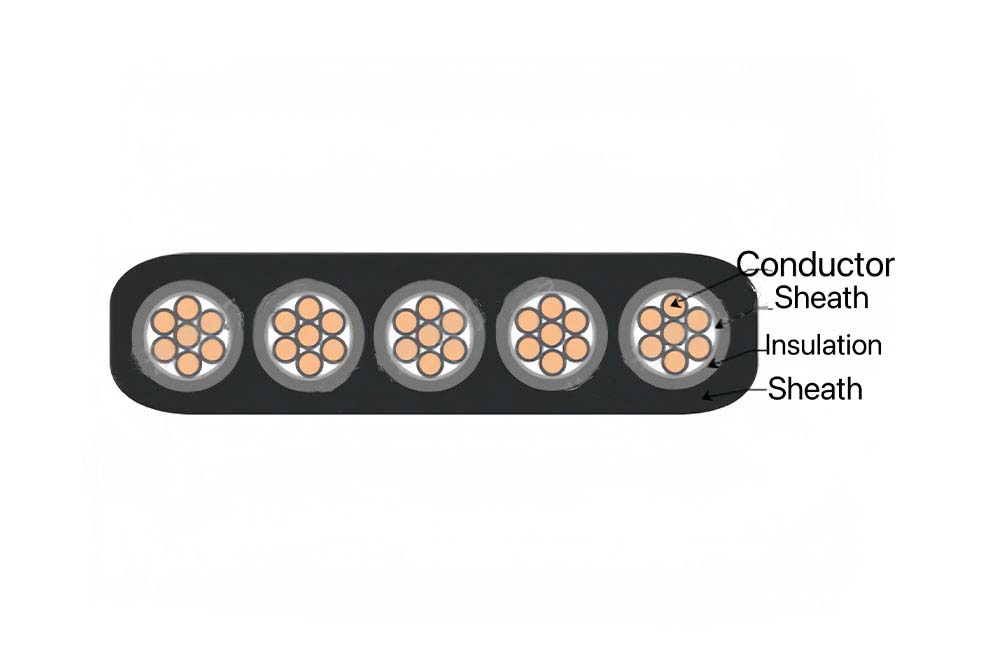

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

Rubber

Sheath

Rubber

Sheath Colour

Black, Other colours available on request

Core Identification

2 core: No preference for chromatography;

3 core: Green/Yellow, Light Blue, Brown or Light Blue, Black, Brown;

4 core: Green/Yellow, Light Blue, Black, Brown or Light Blue, Black, Brown, Black or Brown;

5 core: Green/Yellow, Light Blue, Black, Brown, Black or Brown, or Light Blue, Black, Brown, Black or Brown, Black or Brown

SPECIFICATION	CONDUCTOR STRUCTURE	OUTER DIAMETER OF CONDUCTOR	BELT	INSULATION THICKNESS	SHEATH THICKNESS	OUTSIDE DIAMETER	WEIGHT	MAXIMUM DC RESISTANCE AT 20℃	TESTING VOLATAGE	MAXIMUM ALLOWABLE TRACTIVE FORCE
SPECIFICATION	CONDUCTOR STRUCTURE	mm	mm	mm	mm	mm	kg/km	Ω/km	kv/min	n
2×0.75	24/0.20	1.12	8×0.05	0.6	0.8	4.1×6.6	45.5	26	2/5	105
2×1.0	32/0.20	1.29	5×0.05/8×0.05	0.6	0.9	4.4×7.0	54.8	19.5	2/5	140
2×1.5	30/0.25	1.56	8×0.05	0.8	1	5.4×8.6	80.5	13.3	2/5	210
2×2.5	49/0.25	2	8×0.05	0.9	1.1	6.2×10.2	116	7.98	2/5	350
2×4	56/0.30	2.56	8×0.05	1.0	1.2	7.1×11.8	166.3	4.95	2/5	560
2×6	84/0.30	3.54	10×0.05	1.0	1.3	8.2×13.8	225.4	3.3	2/5	840
3×0.75	24/0.20	1.12	8×0.05	0.6	0.9	4.3×6.8	60.2	26	2/5	158
3×1.0	32/0.20	1.29	8×0.05	0.6	0.9	4.4×7.0	69.4	19.5	2/5	210
3×1.5	30/0.25	1.56	8×0.05	0.8	1.0	5.3×8.6	102.8	13.3	2/5	315
3×2.5	49/0.25	2	8×0.05	0.9	1.1	6.2×10.2	150.1	7.98	2/5	525
3×4	56/0.30	2.56	8×0.05	1.0	1.2	7.1×11.8	218.8	4.95	2/5	840
3×6	84/0.30	3.54	10×0.05	1.0	1.3	8.2×13.8	298.4	3.3	2/5	1260
4×0.75	24/0.20	1.12	8×0.05	0.6	0.9	4.3×6.8	72.0	26	2/5	210
4×1.0	32/0.20	1.29	8×0.05	0.6	0.9	4.4×7.0	84.0	19.5	2/5	280
4×1.5	30/0.25	1.56	5×0.05	0.8	1.0	5.8×9.3	137.4	13.3	2/5	420
4×2.5	49/0.25	2	5×0.05	0.9	1.1	6.6×10.7	198.0	7.98	2/5	700
4×4	56/0.30	2.56	5×0.05	1.0	1.2	7.6×12.5	290.1	4.95	2/5	1120
4×6	84/0.30	3.54	10×0.05	1.0	1.3	9.2×15.5	411.8	3.3	2/5	1680
5×0.75	24/0.20	1.12	5×0.05	0.6	1.0	4.7×7.3	92.3	26	2/5	263
5×1.0	32/0.20	1.29	5×0.05	0.6	1.0	4.9×7.7	108.5	19.5	2/5	350
5×1.5	30/0.25	1.56	5×0.05	0.8	1.1	5.8×9.3	160.8	13.3	2/5	525
5×2.5	49/0.25	2	5×0.05	0.9	1.3	6.8×10.9	238.3	7.98	2/5	875
5×4	56/0.30	2.56	5×0.05	1.0	1.4	7.8×12.7	350.1	4.95	2/5	1400
5×6	84/0.30	3.54	10×0.05	1.0	1.6	9.7×16.0	506.8	3.3	2/5	2100
6×0.75	24/0.20	1.12	5×0.05	0.6	1.0	4.7×7.3	104.7	26	2/5	315
6×1.0	32/0.20	1.29	5×0.05	0.6	1.1	5.1×7.9	127.2	19.5	2/5	420
6×1.5	30/0.25	1.56	5×0.05	0.8	1.2	6.0×9.5	188.2	13.3	2/5	630
6×2.5	49/0.25	2	5×0.05	0.9	1.4	7.0×11.1	278.7	7.98	2/5	1050
6×4	56/0.30	2.56	5×0.05	1.0	1.5	8.1×13.0	413.0	4.95	2/5	1680
6×6	84/0.30	3.54	10×0.05	1.0	1.7	9.9×16.2	591.9	3.3	2/5	2520

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
