H07RN-F Flexible Rubber Cable
Voltage:	450/750V Suitable for 1kV in fixed application
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	EPR (Ethylene Propylene Rubber)
	Sheath	PCP (Polychloroprene)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audiovisual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments. AD8 rated and suitable for installation in buried ducts.

Voltage Rating Uo/U

450/750V Suitable for 1kV in fixed application

Temperature Rating

Fixed: -30°C to +90°C

Flexed: - 15°C to +90°C

Minimum Bend Radius

Fixed: 4 x overall diameter

Flexed: 6 x overall diameter

STANDARDS

EN 50525-2-21, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Water Resistant according to AD8

UV Resistant

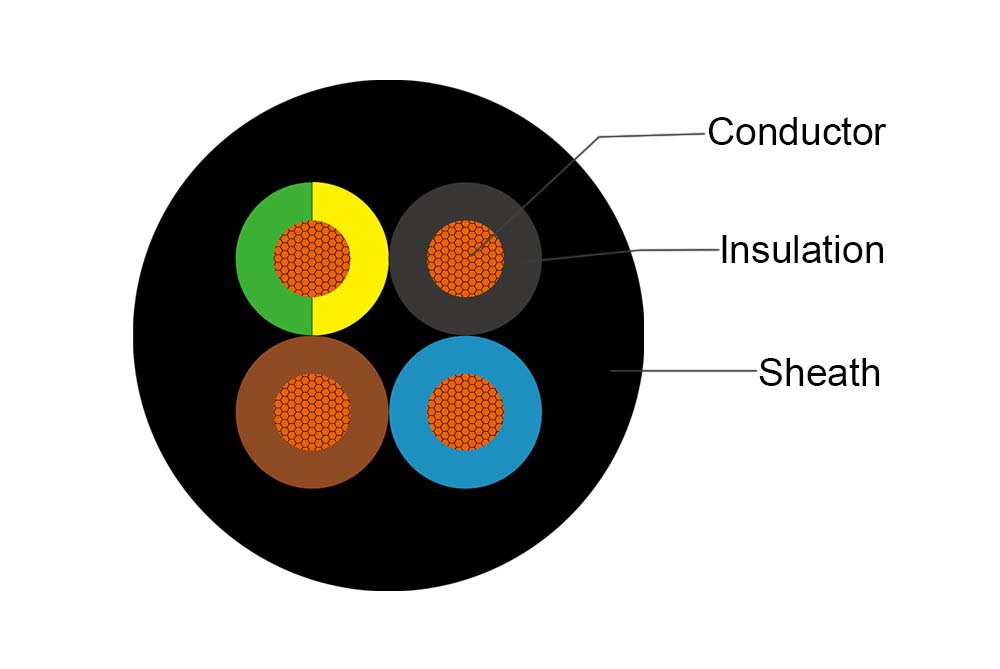

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

EPR (Ethylene Propylene Rubber)

Sheath

PCP (Polychloroprene)

Sheath Colour

Black, Other colours available on request

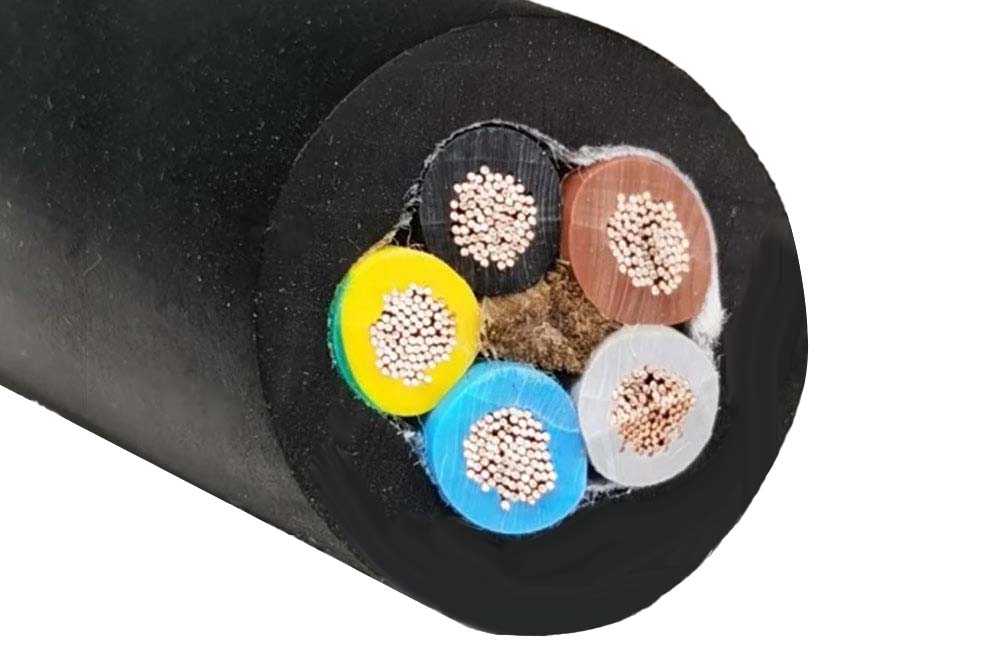

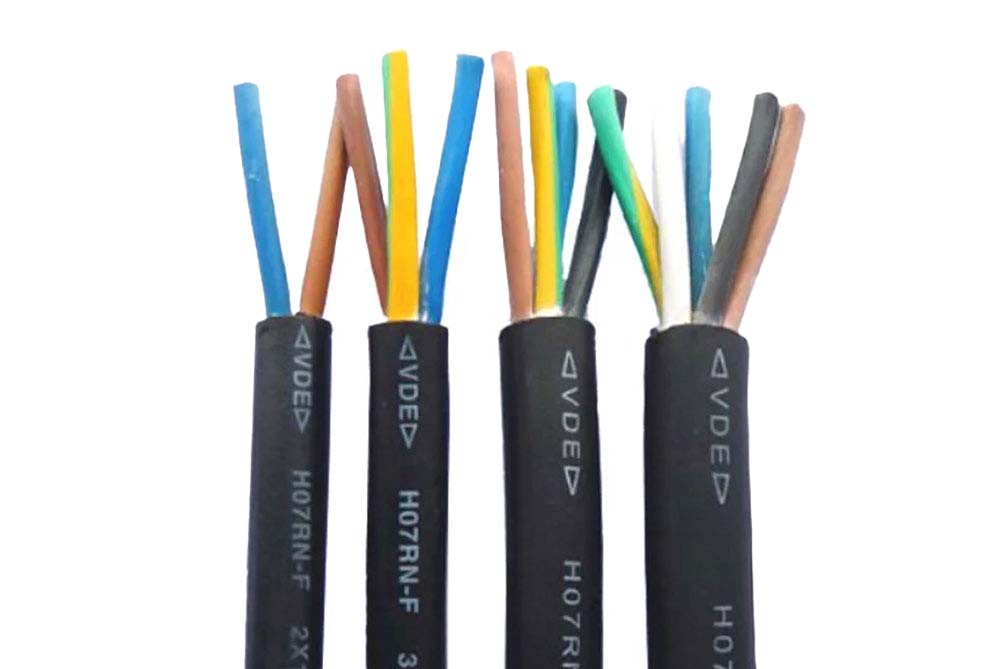

Core Identification

1 core: Black

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers Green/Yellow

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT	A2 GLANDS	A2PL GLAND
NO. OF CORES	mm2	mm	mm	kg/km	Brass	Plastic
1	1.5	0.8	5.8	52	20/16	20S
1	2.5	0.9	6.5	67	20/16	20S
1	4	1	7.4	92	20/16	20S
1	6	1	8.1	119	20S	20S
1	10	1.2	9.8	185	20S	20S
1	16	1.2	11.35	258	20	20
1	25	1.4	13.3	375	25	20
1	35	1.4	14.6	485	25	25
1	50	1.6	17.2	669	25	25
1	70	1.6	19.35	892	32	32
1	95	1.8	22.2	1160	32	32
1	120	1.8	24.3	1436.0	32	32
1	150	2	25.9	1748	40	40
1	185	2.2	29.7	2142.0	40	40
1	240	2.4	31.5	2698	50S	50S
1	300	2.6	36.5	3348	50	50S
1	400	2.8	40.4	4293	50	50
1	500	3	42.6	5262	50	50
1	630	3	47.2	6790	63S	63S
2	1	0.8	8.1	94	20S	20S
2	1.5	0.8	9	120	20S	20S
2	2.5	0.9	10.7	173	20S	20S
2	4	1	12.3	239	20	20
2	6	1	13.8	313	25	25
2	10	1.2	18.6	563	32	25
2	16	1.2	21.7	830	32	32
2	25	1.4	25.8	1211	40	40
3	1	0.8	8.74	117	20S	20S
3	1.5	0.8	9.68	147	20S	20S
3	2.5	0.9	11.48	123	20	20
3	4	1	13.2	297	25	25
3	6	1	14.78	390	25	25
3	10	1.2	19.9	705	32	32
3	16	1.2	23.31	1031	32	32
3	25	1.4	27.7	1512	40	40
3	35	1.4	30.2	1907	50S	50S
3	50	1.6	35.8	2651	50	50S
3	70	1.6	40.1	3484	50	50
3	95	1.8	46.4	4594	63S	63S
4	1	0.8	9.63	142	20S	20S
4	1.5	0.8	10.63	180	20S	20S
4	2.5	0.9	12.6	260	20	20
4	4	1	14.6	336	25	25
4	6	1	16.4	449	25	32
4	10	1.2	21.8	833	32	32
4	16	1.2	25.4	1138	40	40
4	25	1.4	30.7	1714	50S	50
4	35	1.4	33.4	2204	50S	50
4	50	1.6	39.6	3029	50	-
4	70	1.6	44.9	4121	63	-
4	95	1.8	51.9	5361	63	-
4	120	1.8	55.3	6546	-	-
4	150	2	60.8	8095	-	-
4	185	2.2	65.7	9652	-	-
4	240	2.4	75.7	12614	-	-
5	2.5	0.9	14	297	25	25
5	6	1	18.2	567	32	32
5	16	1.2	28.2	1400	40	40
5	35	1.4	37.2	2700	50	50
5	50	1.6	44	3730	63S	63S
5	70	1.6	48	5033	63	-
5	95	1.6	53.2	6271	63	-
7	1.5	0.8	15.13	315	25	25
7	2.5	0.9	17.6	445	25	32
12	1.5	0.8	18.2	493	25	32
12	2.5	0.9	21.4	702	32	32
19	1.5	0.8	22.1	710	32	32

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
