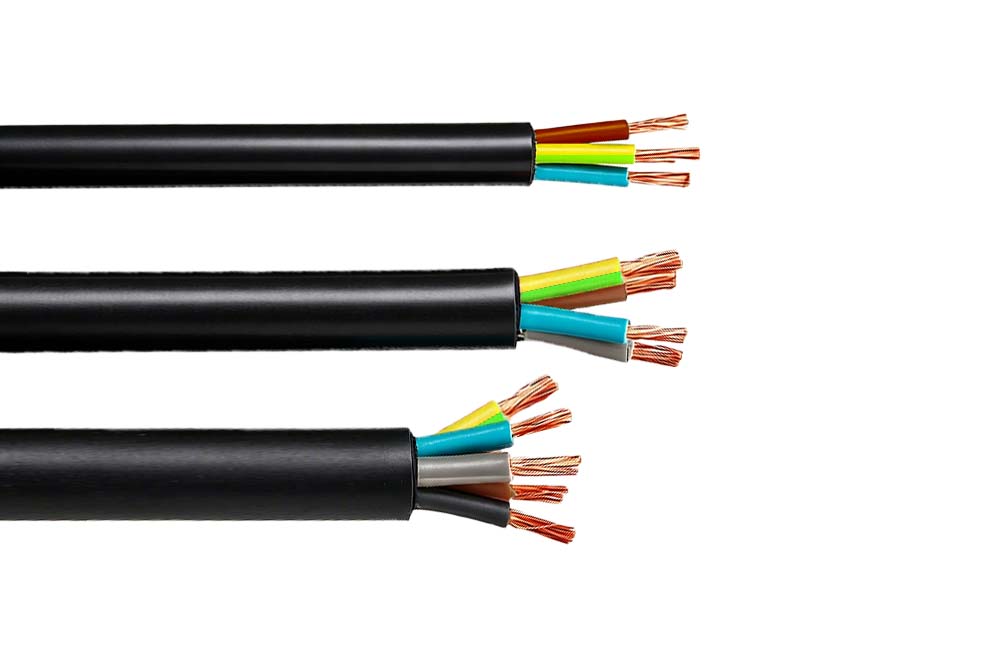

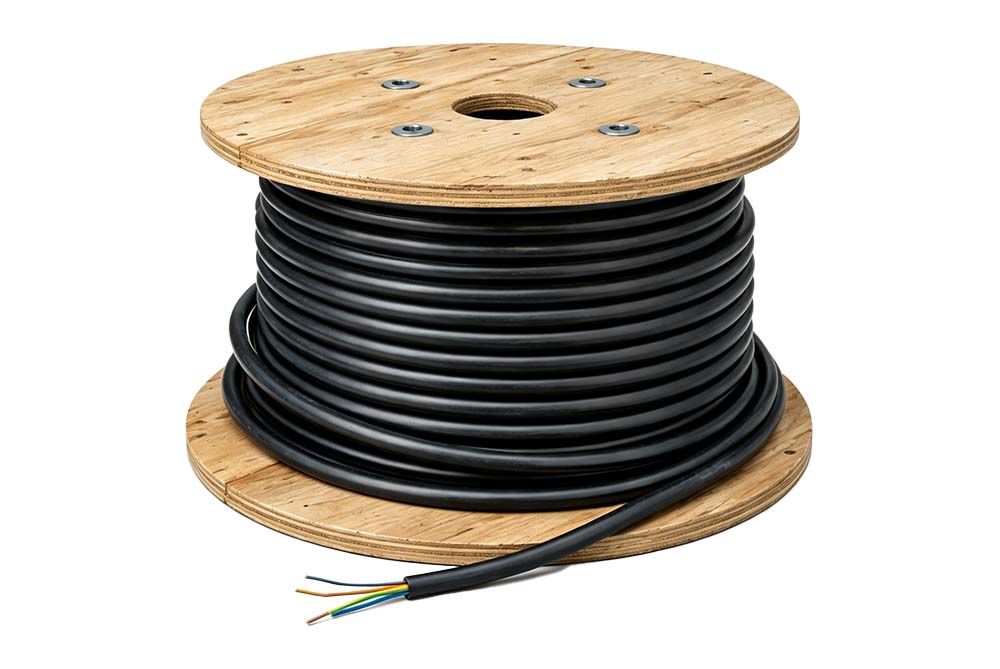

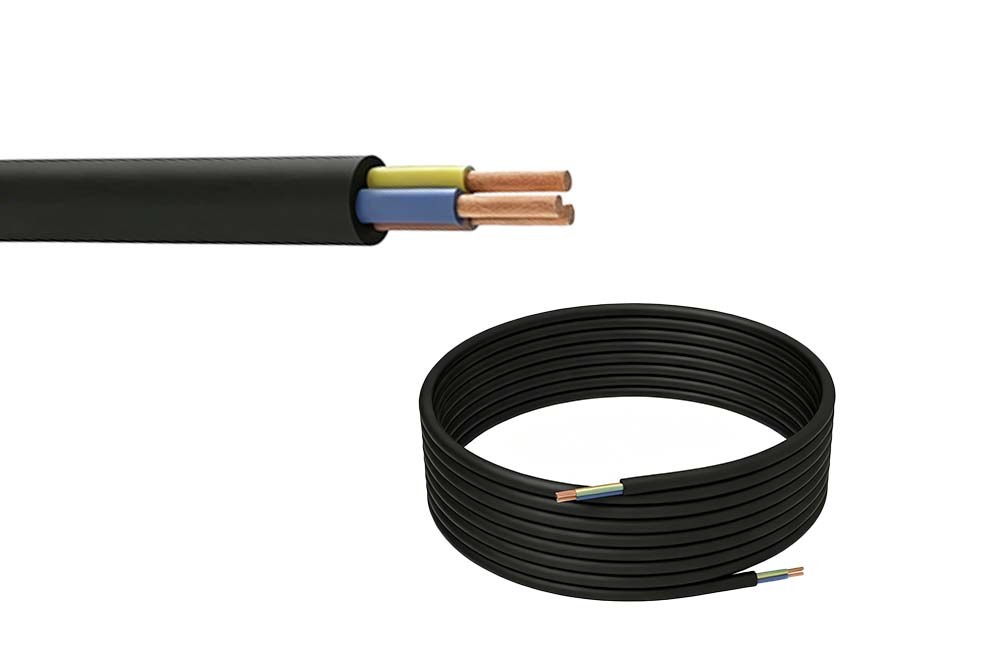

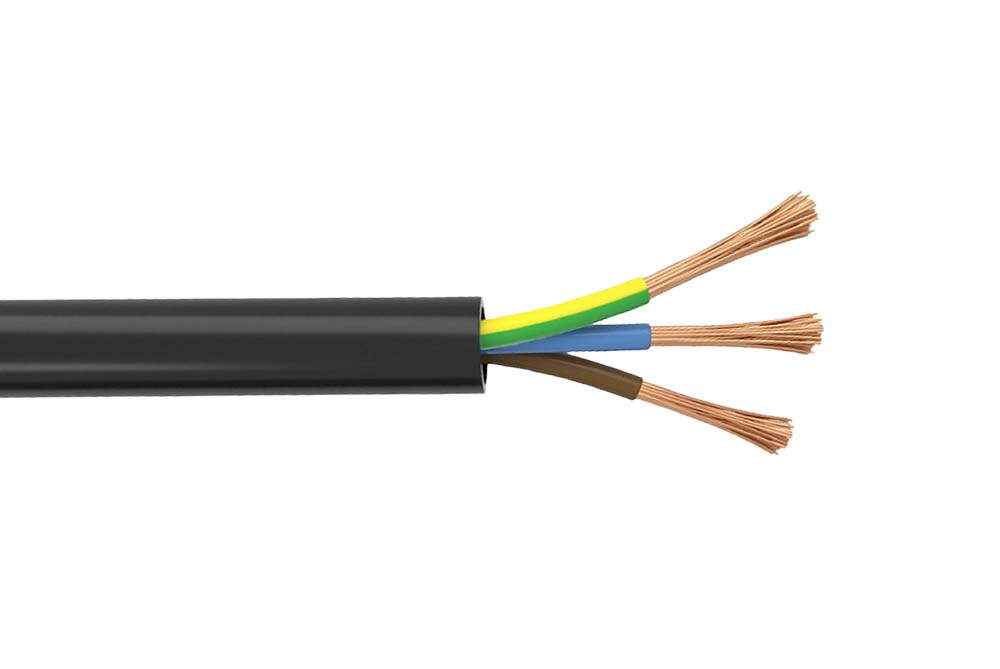

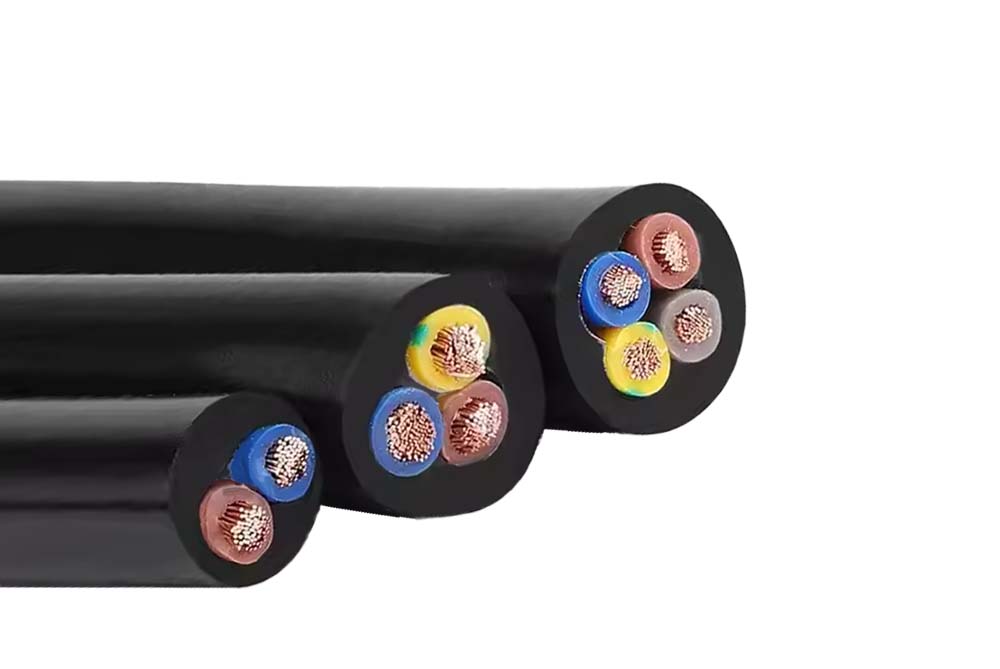

H07RN-8-F Flexible Rubber Cable
Voltage:	450/750V
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	Rubber
	Sheath	Rubber
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

For installation in dry, damp or wet environments, in workshops with explosive atmospheres: it can be immersed in fresh water up to 10m depth and it could be used as energy supply cable for submersed pumps. Not suitable for underwater power transmission or installation in a waterway or where mechanical damage might occur and cause hazard. For connections liable to moderate mechanical stresses, i.e. industrial or agricultural workshop apparatus, large boilers, electric appliances on building sites; also for fixed installations along floors or shelving on temporary job sites, for connecting structural elements in lifting apparatus, machinery, etc.

Voltage Rating Uo/U

450/750V

Temperature Rating

Fixed: -40°C to +60°C

Flexed: -15°C to +60°C

Minimum Bend Radius

Fixed: 4 x overall diameter

Flexed: 6 x overall diameter

STANDARDS

EN 50525-2-21, HD 22.4S3, CEI 20-19 Part 16, EN 60228, VDE 0295

Flame Retardant according to IEC/EN 60332-1-2

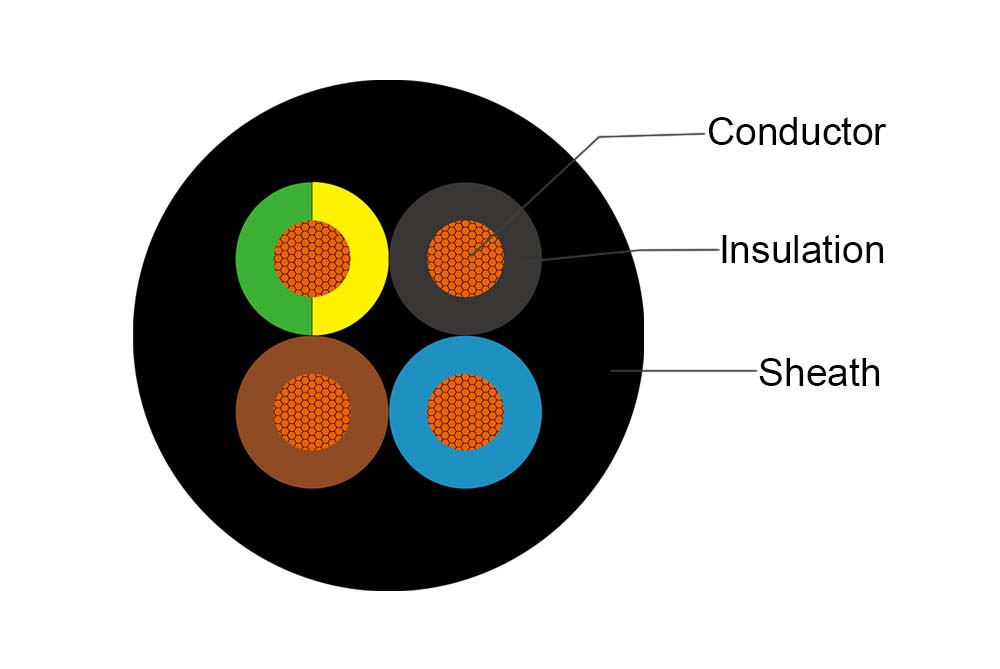

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

Rubber

Sheath

Rubber

Sheath Colour

Black, Other colours available on request

Core Identification

1 core: Black

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Blue Brown Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers Green/Yellow

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm2	mm	mm	mm	kg/km
1	1.5	1.5	5.7	7.1	50
1	2.5	1.9	6.3	7.9	70
1	4	2.4	7.2	9	100
1	6	3	7.9	9.8	130
1	10	3.9	9.5	11.9	200
1	16	4.9	10.8	13.4	280
1	25	6.1	12.7	15.8	400
1	35	7.3	14.3	17.9	510
1	50	8.9	16.5	20.6	710
3	1.5	1.5	9.2	11.9	150
3	2.5	1.9	10.9	14	210
3	4	2.4	12.7	16.2	280
3	6	3	14.1	18	370
3	10	3.9	19.1	24.2	660
3	16	4.9	21.8	27.6	920
3	25	6.1	26.1	33	1360
3	35	7.3	29.3	37.1	1820
3	50	8.9	34.1	42.9	2500
4	1	1.2	9.2	11.9	150
4	1.5	1.5	10.2	13.1	190
4	2.5	1.9	12.1	15.5	260
4	4	2.4	14	17.9	350
4	6	3	15.7	20	460
4	10	3.9	20.9	26.5	830
4	16	4.9	23.8	30.1	1190
4	25	6.1	28.9	36.6	1720
4	35	7.3	32.5	41.1	2260
7	1.5	1.5	15	19	340
7	2.5	1.9	17.5	21.5	500
12	1.5	1.5	17.6	22.4	530
12	2.5	1.9	20.6	26.2	720
18	1.5	1.5	20.7	26.3	700
24	1.5	1.5	24.3	30.7	960
36	1.5	1.5	27.8	35.2	1360

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
