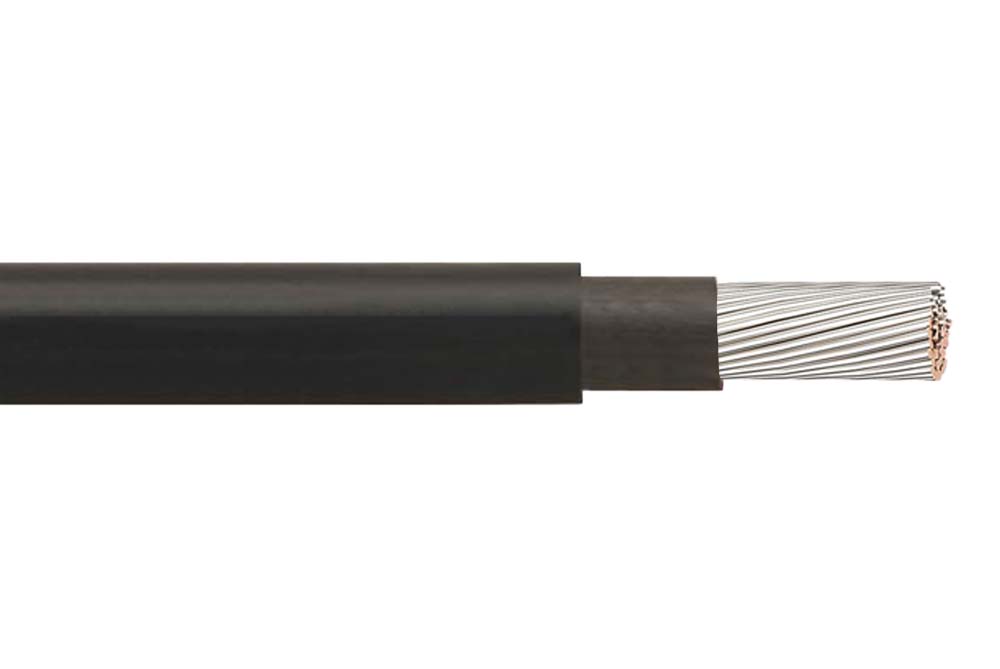

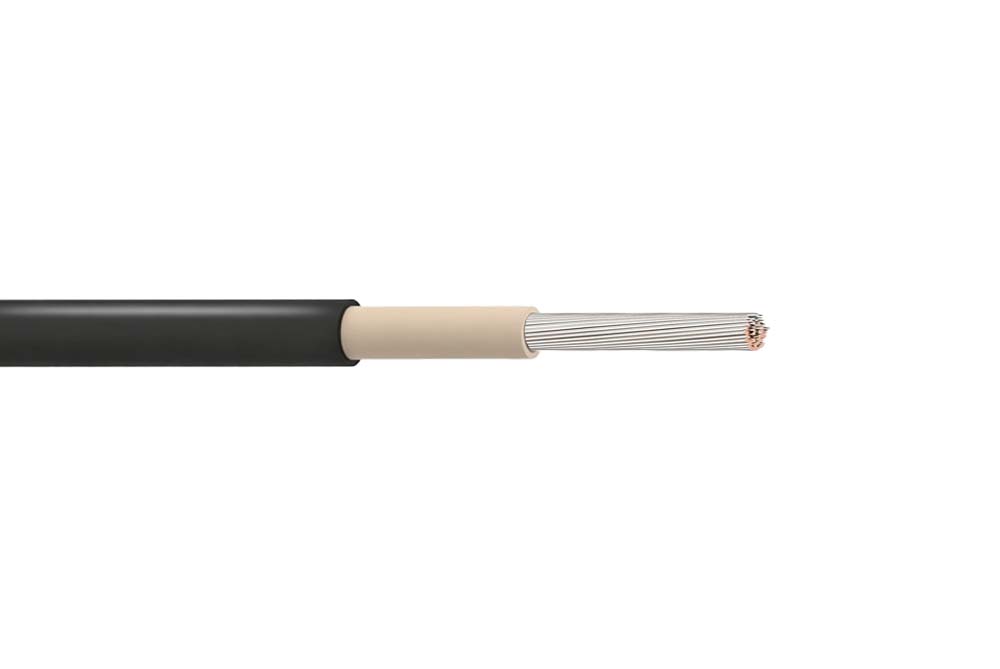

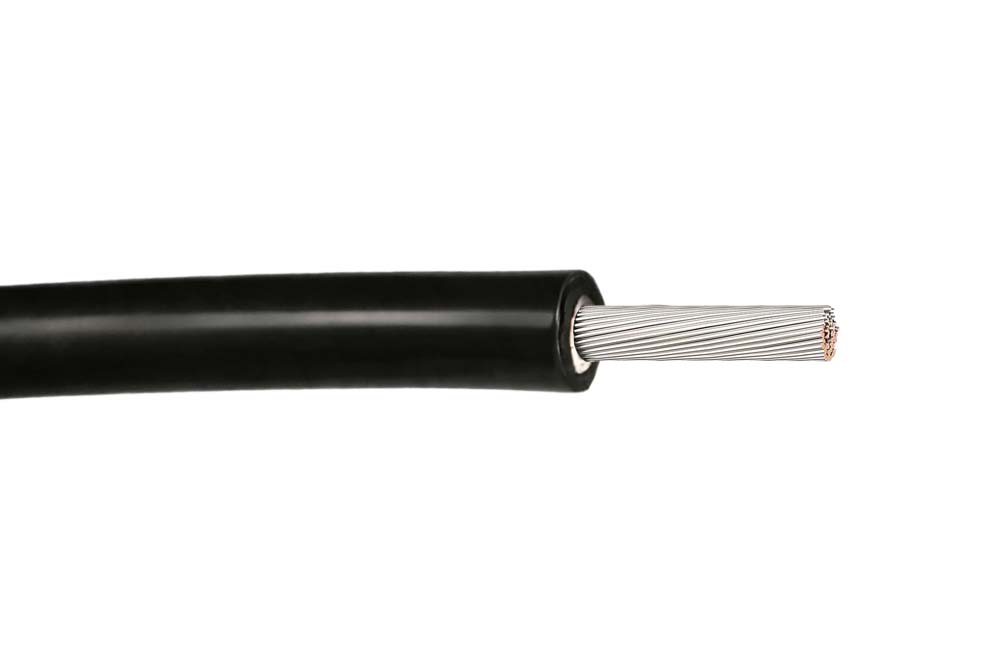

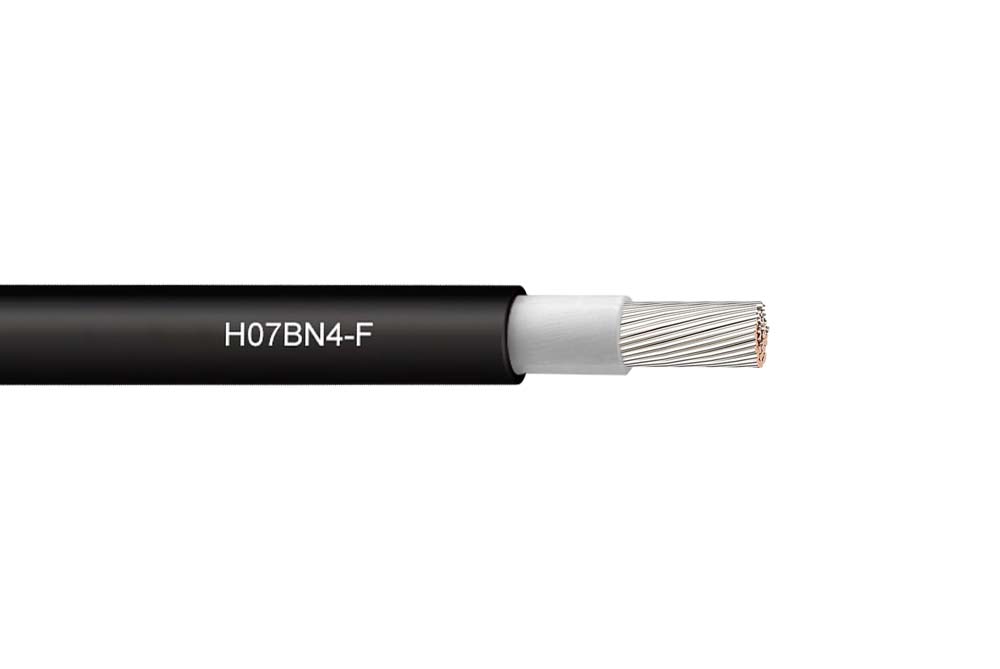

H07BN4-F Flexible Rubber Cable
Voltage:	450/750V
Structure:	Conductor	Class 5 flexible tinned copper conductor
	Insulation	EPR (Ethylene Propylene Rubber)
	Sheath	HOFR CSP (Heat and Oil Resistant and Flame Retardant Chlorosulphonated Polyethylene)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Flexible rubber cable with high temperature resistance suitable for most industrial applications such as connecting equipment. The mains supply and generally for use in arduous industrial environments where good flexibility and resistance mechanical abrasion is essential.

Voltage Rating Uo/U

450/750V

The use of up to 1kV in alternative current is authorised for protected static installations and for the connection of motors in lifting appliances

Temperature Rating

Fixed: -40°C to +90°C

Flexed: - 15°C to +90°C

Minimum Bend Radius

Up to 25mm² - Flexed: 6 x overall diameter

Above 25mm² - Flexed: 8 x overall diameter

STANDARDS

EN 50525-2-21, HD22.12, EN 60228, CEI 20-19 part 12

Flame Retardant according to IEC/EN 60332-1-2

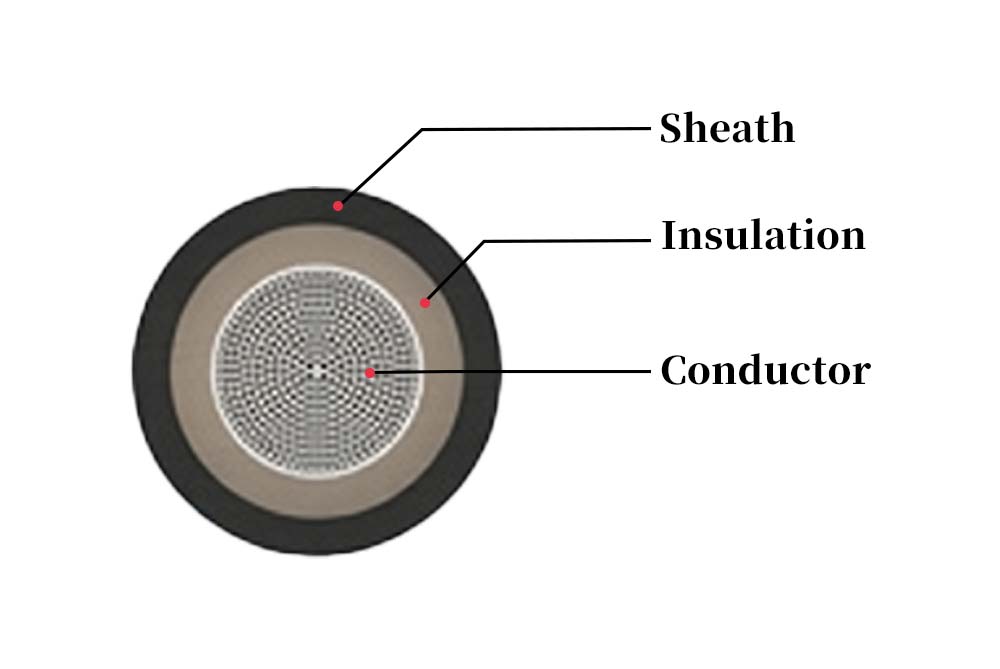

CONSTRUCTION

Conductor

Class 5 flexible tinned copper conductor

Insulation

EPR (Ethylene Propylene Rubber)

Sheath

HOFR CSP (Heat and Oil Resistant and Flame Retardant Chlorosulphonated Polyethylene)

Sheath Colour

Black, Other colours available on request

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm2	mm	mm	kg/km
1	10	1.2	10.7	200
1	16	1.2	12.1	270
1	25	1.4	14.25	380
1	35	1.4	16.1	510
1	50	1.6	18.55	680
1	70	1.6	21	930
1	95	1.8	23.4	1200
1	120	1.8	25.7	1460
1	150	2	28.3	1800
1	185	2.2	31	2200
1	240	2.4	34.5	2800
1	300	2.6	35.6	3350
1	400	2.8	42.1	4400
1	500	3	46.7	5400
1	630	3	51.3	6900

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
