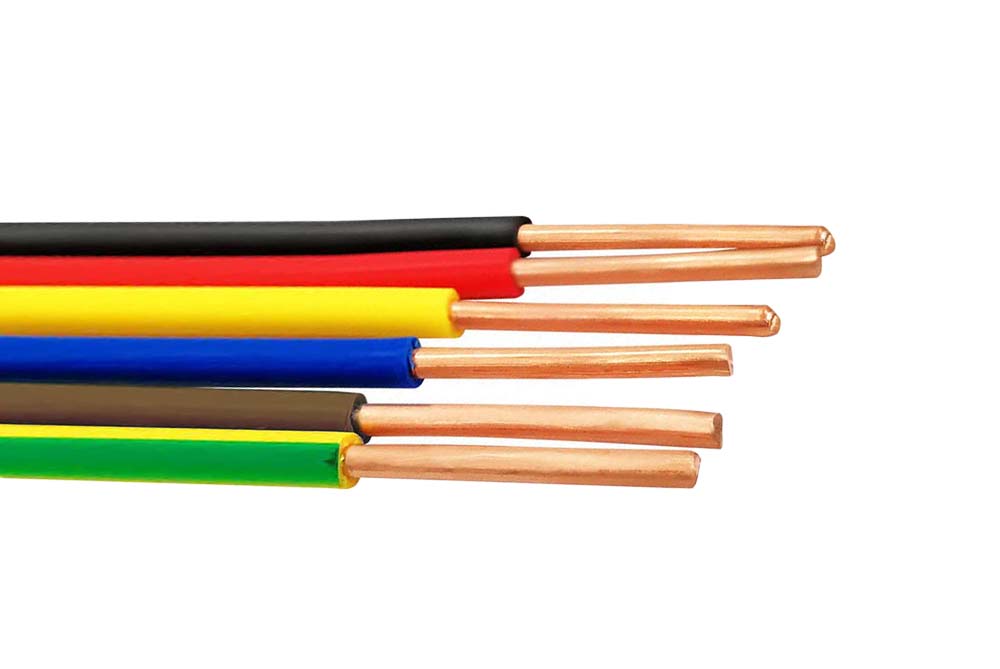

H05Z-U / H07Z-U LSZH Cable
Voltage:	H05Z-U: 300/500V H07Z-U: 450/750V
Structure:	Conductor	Class 1 solid Copper
	Insulation	LSZH (Low Smoke Zero Halogen)
	Insulation Colour	Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Single core rubber insulated H05Z and H07Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V or 450/750V.

Voltage Rating Uo/U

H05Z-U: 300/500V

H07Z-U: 450/750V

Temperature Rating

Maximum conductor operating temperature: 90°C

Maximum conductor short-circuit temperature: 250°C

Minimum installation temperature: 5°C

STANDARDS

EN 50525-1, 50525-3-41, IEC/EN 60228, IEC 60245-2, DIN VDE 0282-1/9/300, DIN VDE 0295, VDE 0298-4, EN 50395, EN 50396, HD 22.1/9, HD 308, HD 383, HD 516

Flame Retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2 and IEC/EN 61034-1/2

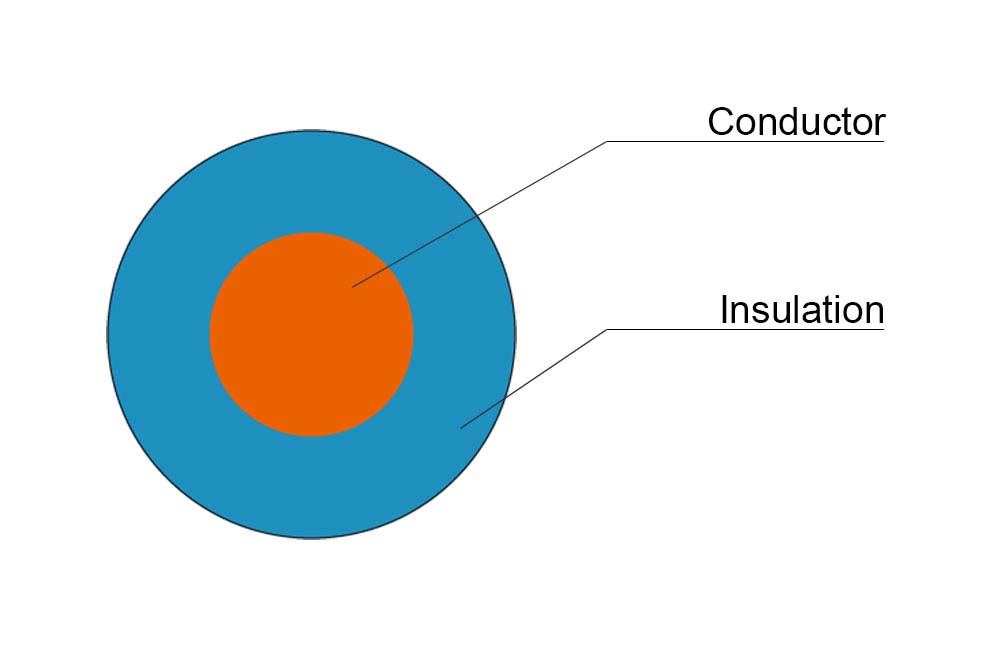

CONSTRUCTION

Conductor

Class 1 solid Copper

Insulation

LSZH (Low Smoke Zero Halogen)

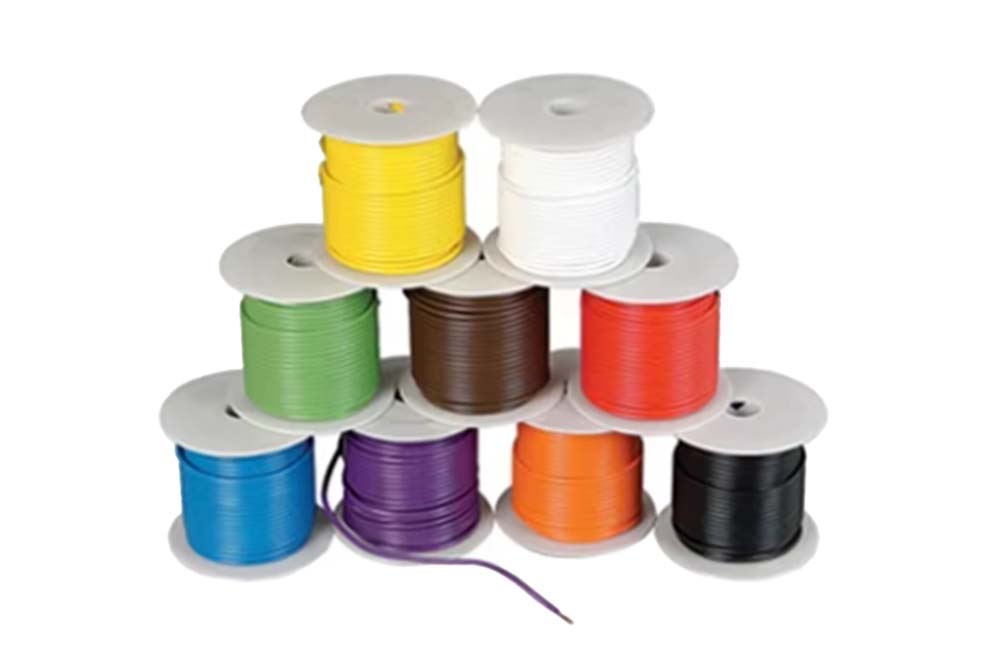

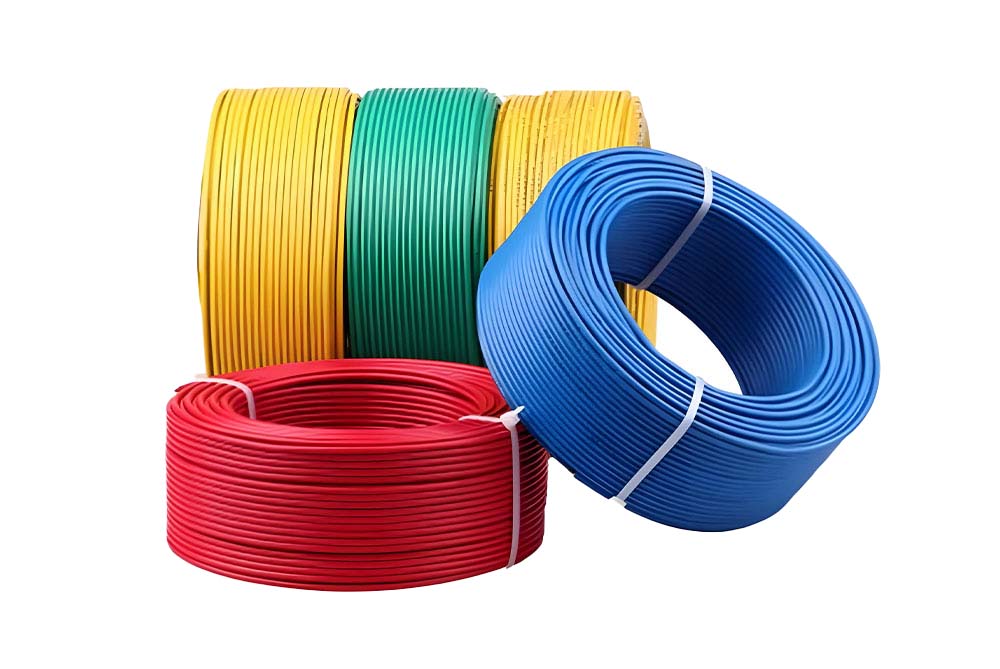

Insulation Colour

Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink

H05Z-U

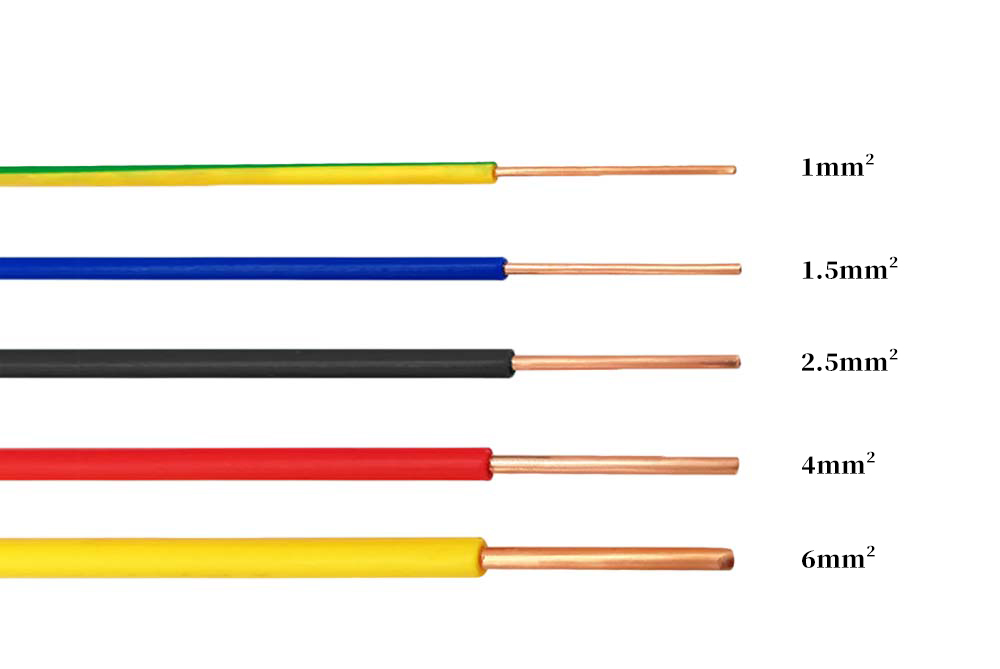

NOMINAL CROSS SECTIONAL AREA	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	NOMINAL CABLE WEIGHT
mm2	mm	mm	kg/km
0.5	1.9	2.4	7.1
0.75	2.1	2.6	9.7
1	2.2	2.8	12.1

H07Z-U
NOMINAL CROSS SECTIONAL AREA	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	NOMINAL CABLE WEIGHT
mm2	mm	mm	kg/km
1.5	2.6	3.3	18
2.5	3.2	4	29
4	3.6	4.6	44
6	4.1	5.2	62
10	5.3	6.6	103

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
