H05Z-K / H07Z-K LSZH Cable
Voltage:	H05Z-K - 0.5mm² to 1mm²: 300/500V H07Z-K - 1.5mm² to 400mm²: 450/750V
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	LSZH (Low Smoke Zero Halogen)
	Insulation Colour	Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

LSZH panel wiring for appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

Voltage Rating Uo/U

H05Z-K - 0.5mm² to 1mm²: 300/500V

H07Z-K - 1.5mm² to 400mm²: 450/750V

Temperature Rating

-20°C to +90°C

Minimum installation temperature: 0°C

Minimum Bending Radius

Up to 35mm2: 4 x overall diameter

50mm2 and above: 6 x overall diameter

STANDARDS

EN 50525-3-41, EN 60228,

Flame Retardant according to IEC/EN 60332-1-2, IEC/EN 60332-3-24

Halogen Free according to IEC/EN 61034-1/2, IEC/EN 60754-1/2

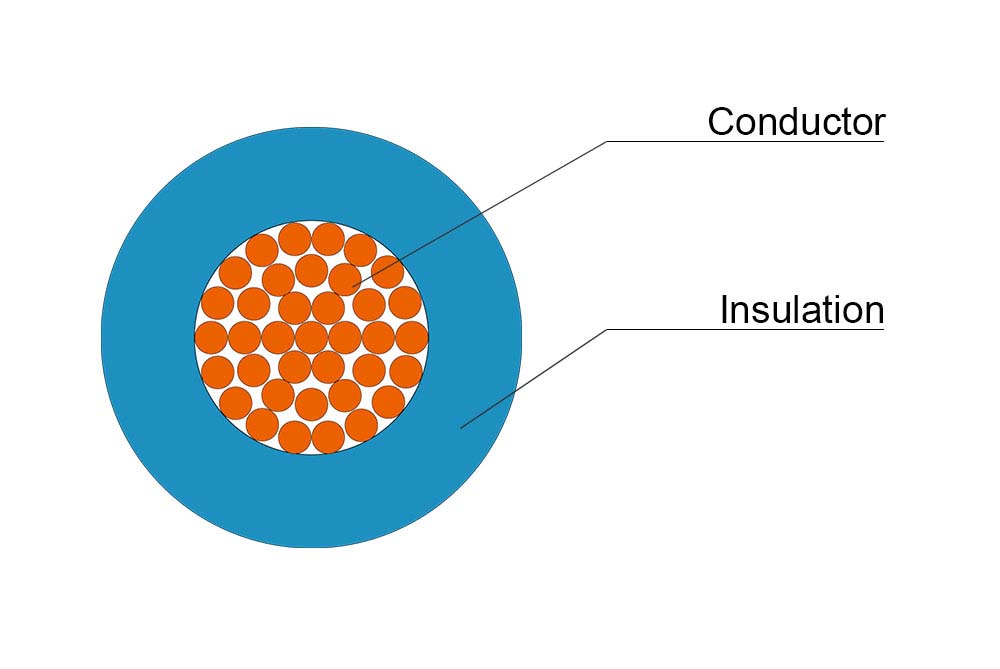

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

LSZH (Low Smoke Zero Halogen)

Insulation Colour

Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink

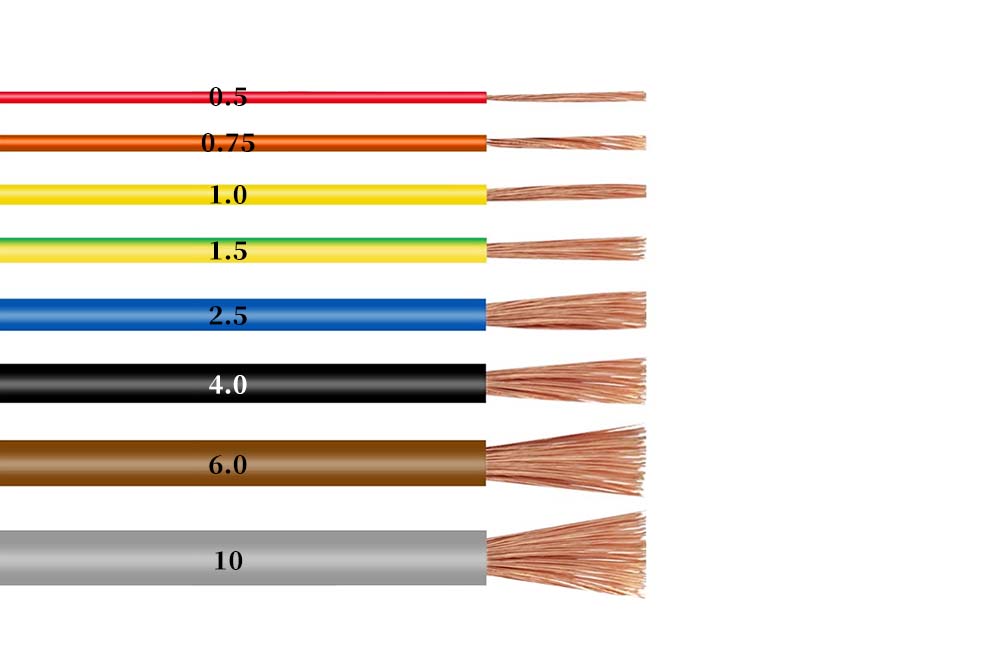

NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER mm		MINIMUM RESISTANCE OF INSULATION AT 90°C	NOMINAL WEIGHT
mm2	mm	Lower Limit	Upper Limit	Mohms/km	kg/km
0.5	0.6	2.1	2.6	0.015	8.7
0.75	0.6	2.2	2.8	0.011	11.3
1	0.6	2.4	2.9	0.01	13.9
1.5	0.7	2.8	3.5	0.01	19.3
2.5	0.8	3.4	4.3	0.009	30.9
4	0.8	3.9	4.9	0.007	44.9
6	0.8	4.4	5.5	0.006	64.2
10	1	5.7	7.1	0.0	108.2
16	1	6.7	8.4	0.0046	163.4
25	1.2	8.4	10.6	0.0044	248.1
35	1.2	9.7	12.1	0.0038	340.6
50	1.4	11.5	14.4	0.0037	484.2
70	1.4	13.2	16.6	0.0032	671
95	1.6	15.1	18.8	0.0032	895.8
120	1.6	16.7	20.9	0.0029	1111.1
150	1.8	18.6	23.3	0.0029	1389.2
185	2	20.6	25.8	0.0029	1724.1
240	2.2	23.5	29.4	0.0028	2225.4
300	2.4	26.8	29.8	0.0028	2770
400	2.6	30.6	32.6	0.0028	3605

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
