H05VVH6-F Elevator Flatform Cable
Voltage:	300/500V
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	PVC (Polyvinyl Chloride)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

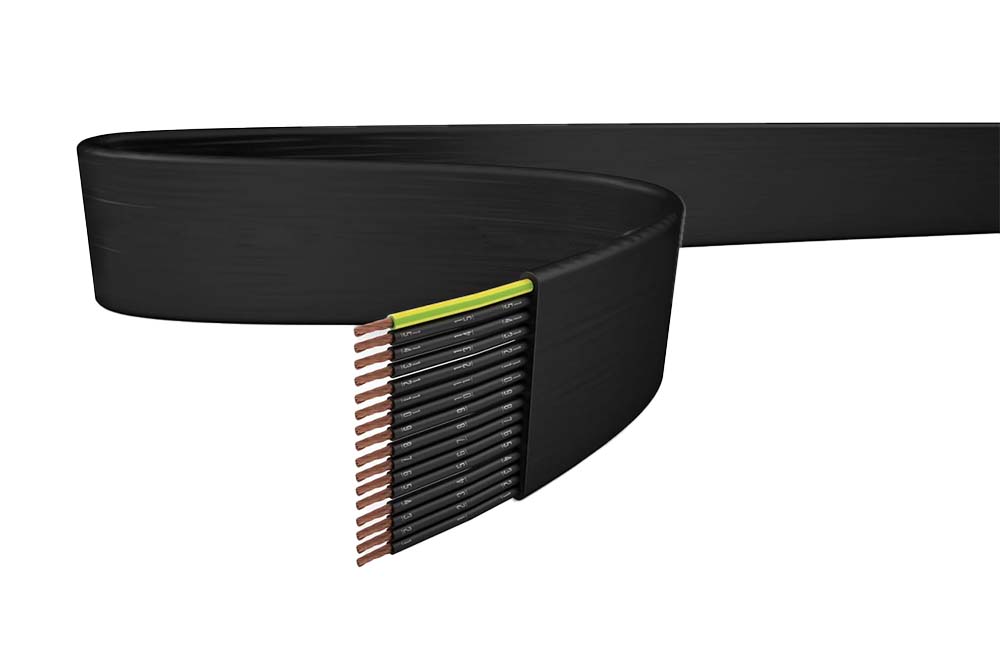

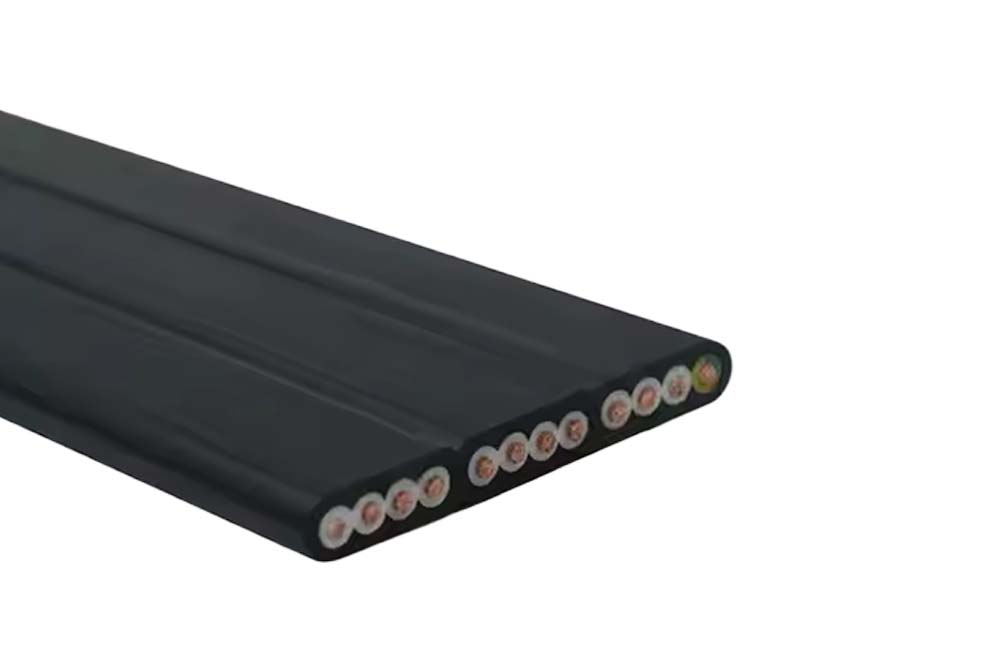

Elevator Flatform H05VVH6-F Cable is a flat travelling PVC cable used in conveyor and hoist equipment. This cable is suitable for internal and panoramic elevator applications with a freely suspended length up to 45 metres.

Voltage Rating Uo/U

300/500V

Temperature Rating

Flexed: - 20°C to +70°C

Minimum Bend Radius

Flexed: 8 x overall diameter

STANDARDS

EN 50124, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

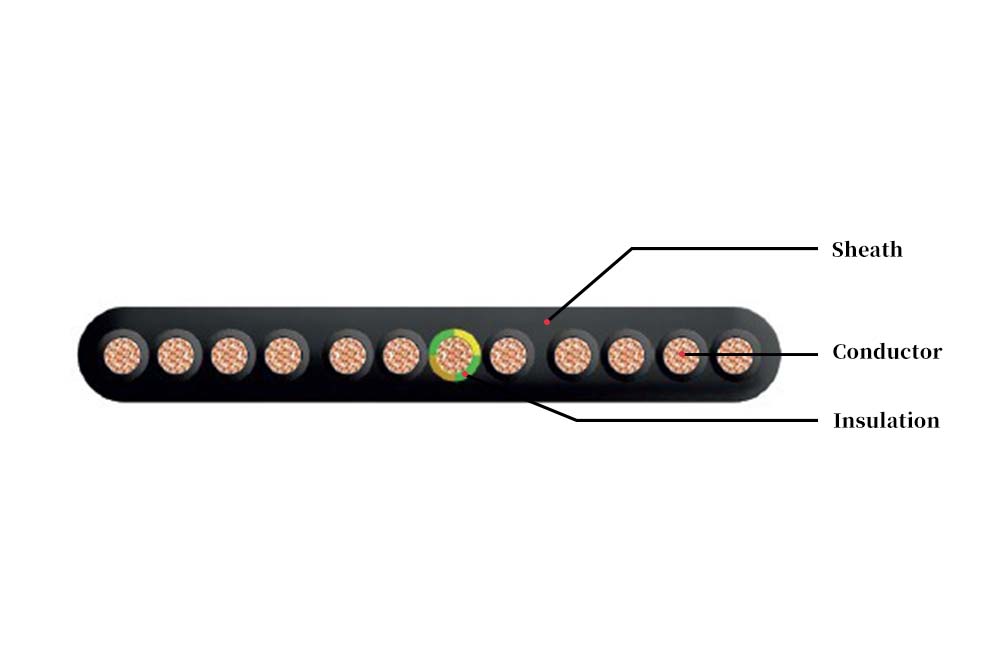

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, Other colours available on request

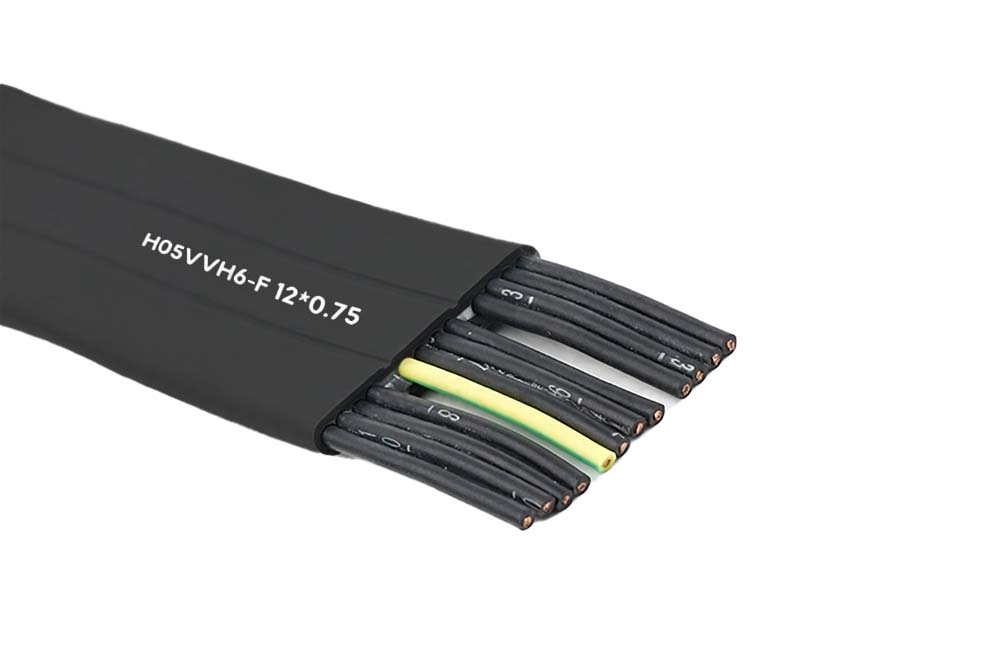

Core Identification

Black with White numbers

Green/Yellow earth conductor

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OVER CONDUCTOR	NOMINAL THICKNESS OF INSULATION	CABLE DIMENSIONS WIDTH	NOMINAL WEIGHT
NO. OF CORES	mm2	mm	mm	mm	kg/km
6	0.75	1.3	0.6	72	118
12	0.75	1.3	0.6	128	227
18	0.75	1.3	0.6	184	336
20	0.75	1.3	0.6	208	376
24	0.75	1.3	0.6	248	450

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
