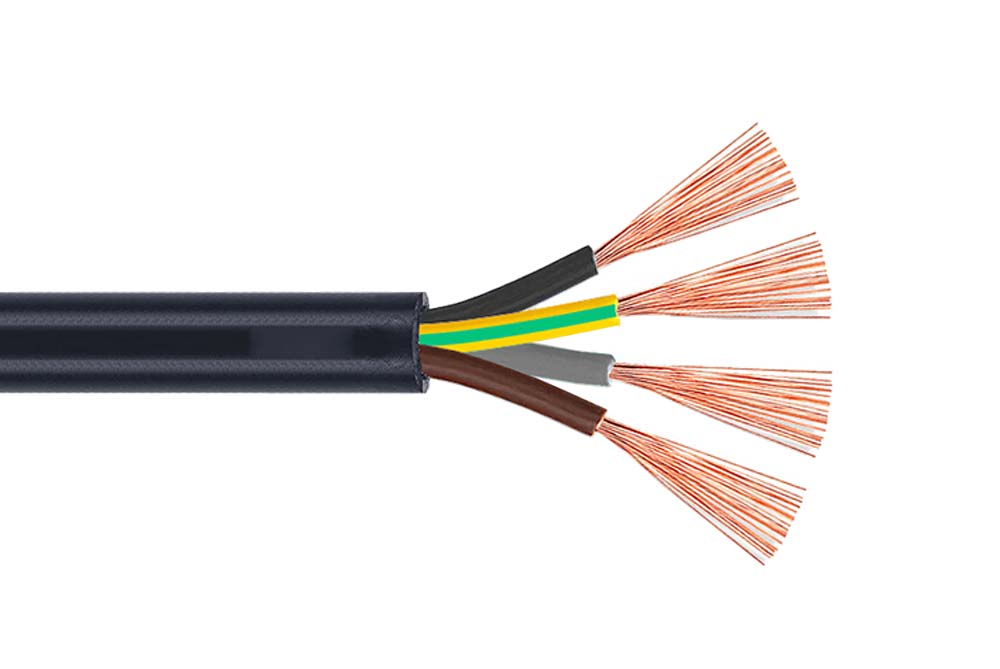

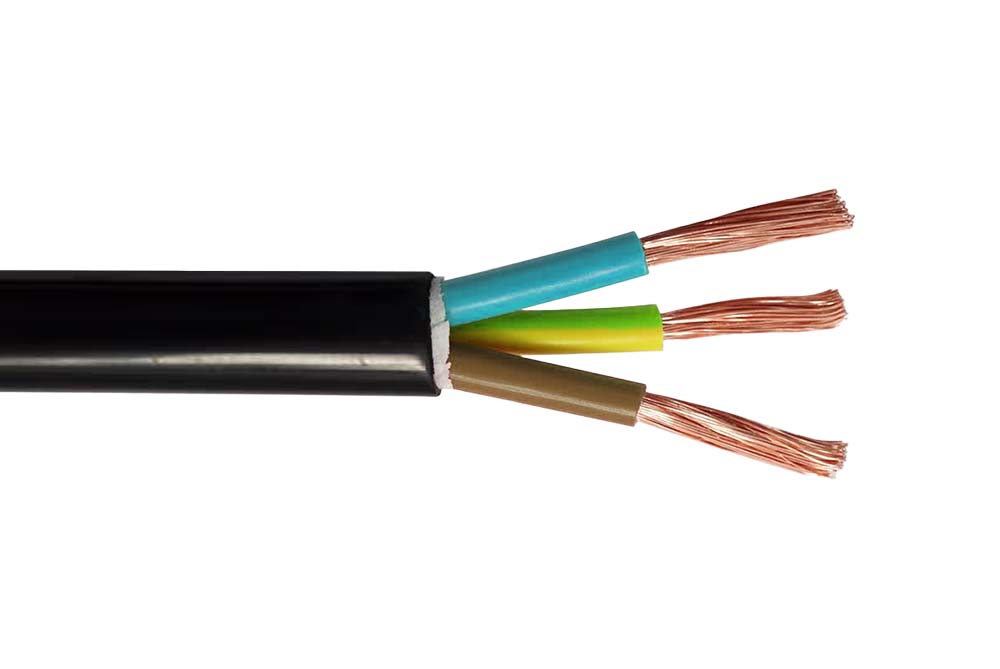

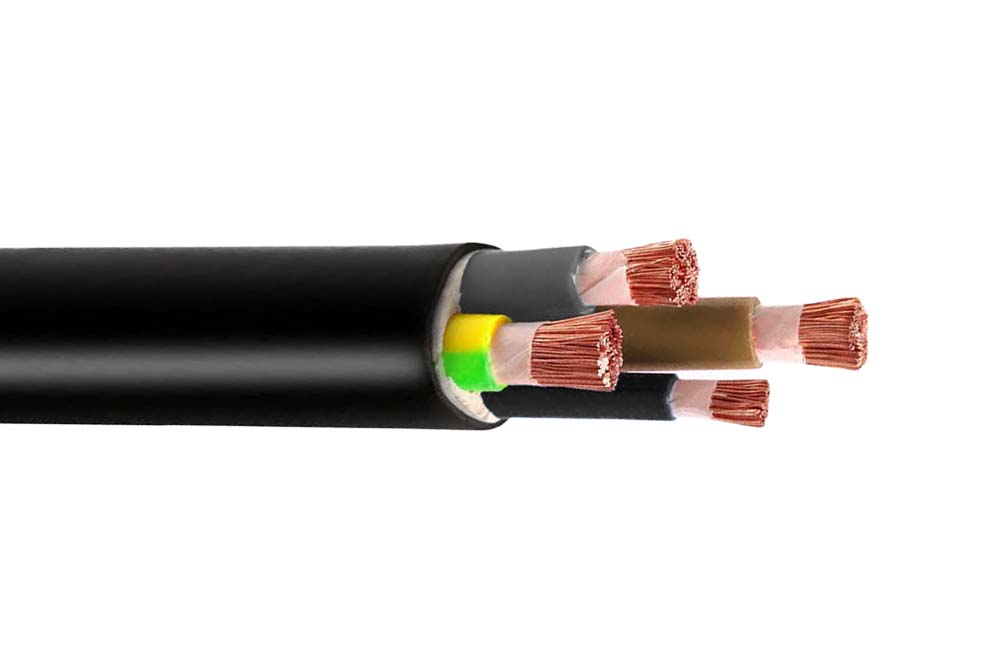

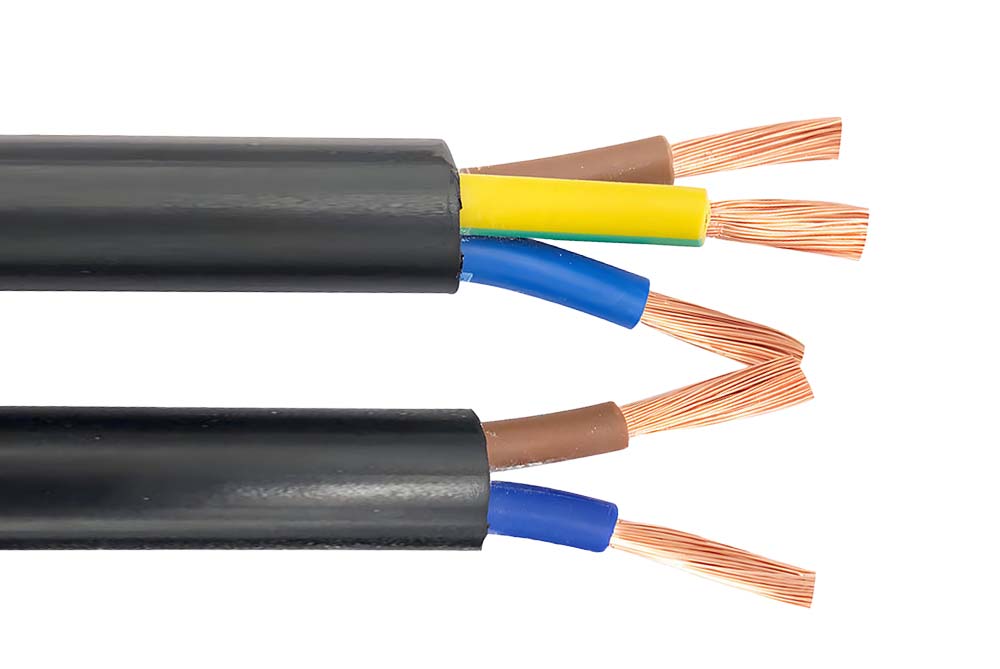

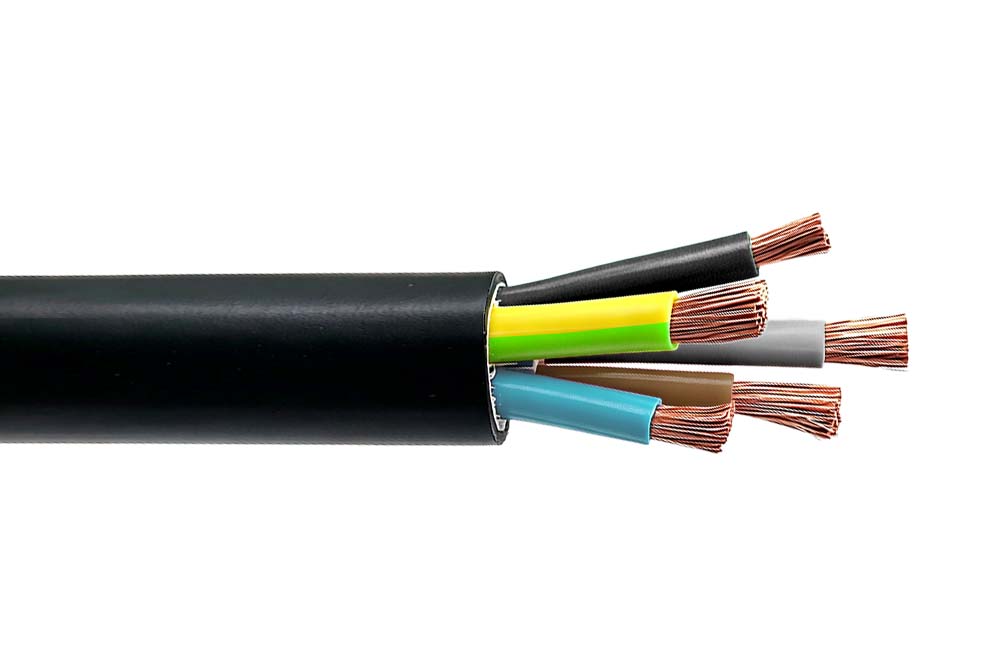

H05VV-F Flexible Cable
Voltage:	300/500V
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	PVC (Polyvinyl Chloride)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	White Black, Customization available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.

Voltage Rating Uo/U

300/500V

Temperature Rating

Flexed: +5°C to +70°C

Minimum Bending Radius

Flexed: 8 x overall diameter

STANDARDS

EN 50525-2-11, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

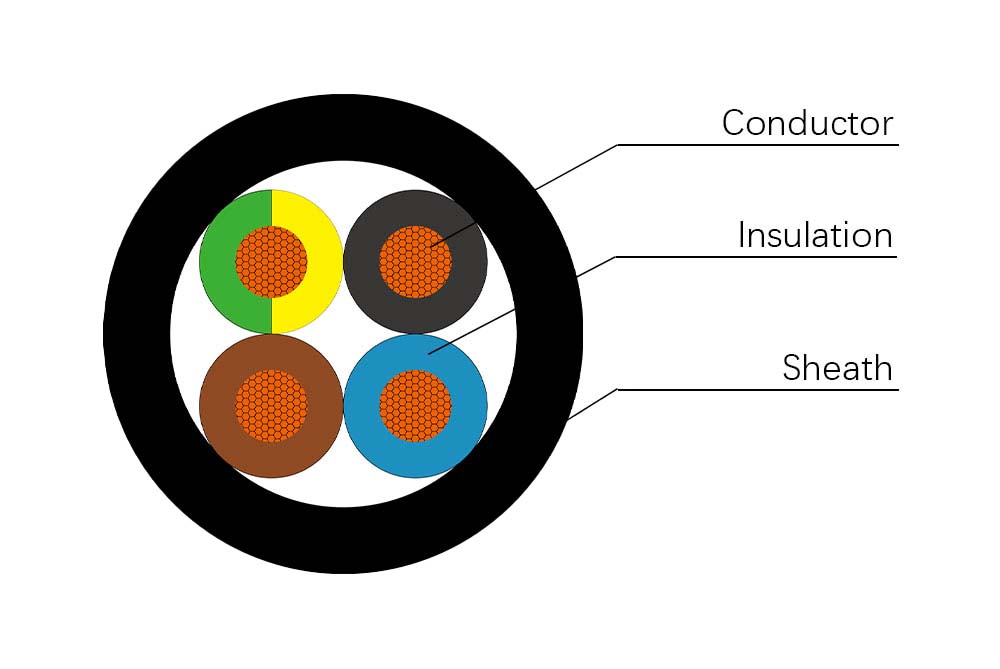

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Brown Black Grey Blue

Sheath Colour

White Black, Customization available

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm2	mm	mm	kg/km
2	0.75	0.6	6.3	57
2	1	0.6	6.6	65
2	1.5	0.7	7.4	84
2	2.5	0.8	9.1	130
3	0.75	0.6	6.7	68
3	1	0.6	7	78
3	1.5	0.7	8.1	108
3	2.5	0.8	9.9	163
3	4	0.8	11.3	227
4	0.75	0.6	7.3	82
4	1	0.6	7.9	100
4	1.5	0.7	9	134
4	2.5	0.8	10.8	201
5	0.75	0.6	8.1	102
5	1	0.6	8.6	120
5	1.5	0.7	10	166

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
