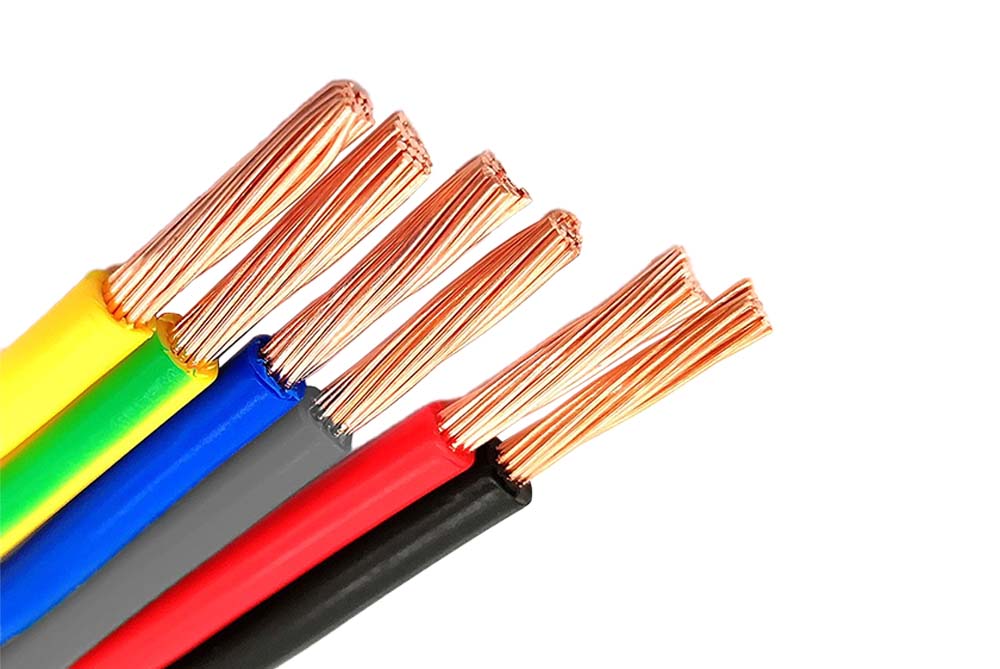

H05V-K / H07V-K Flexible Cable | ||
| Voltage: | H05V-K: 300/500V H07V-K: 450/750V | |

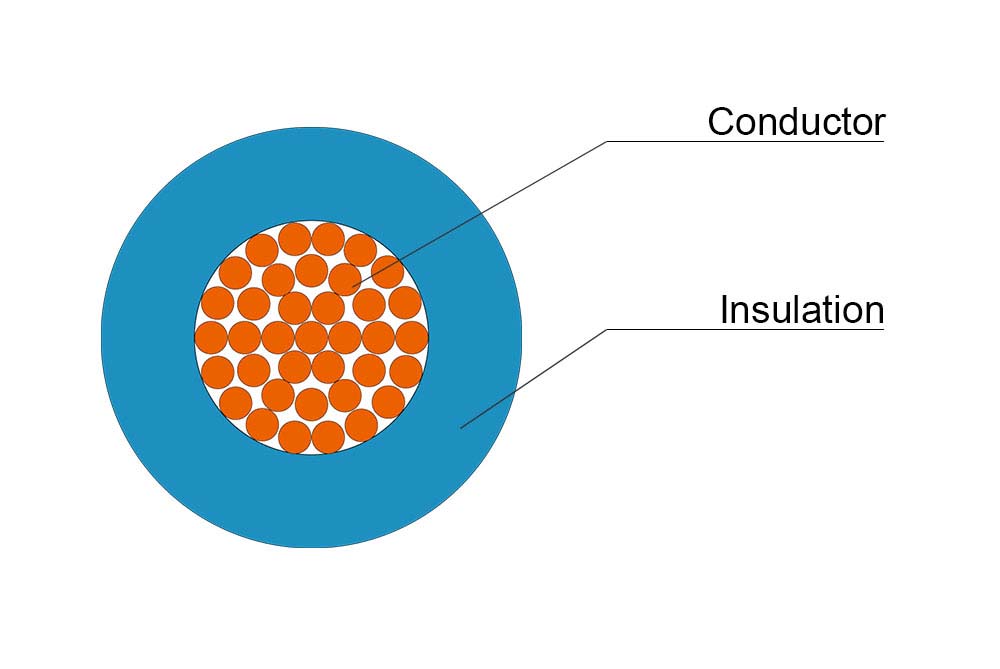

| Structure: | Conductor | Class 5 flexible copper conductor |
| Insulation | PVC (Polyvinyl Chloride) | |

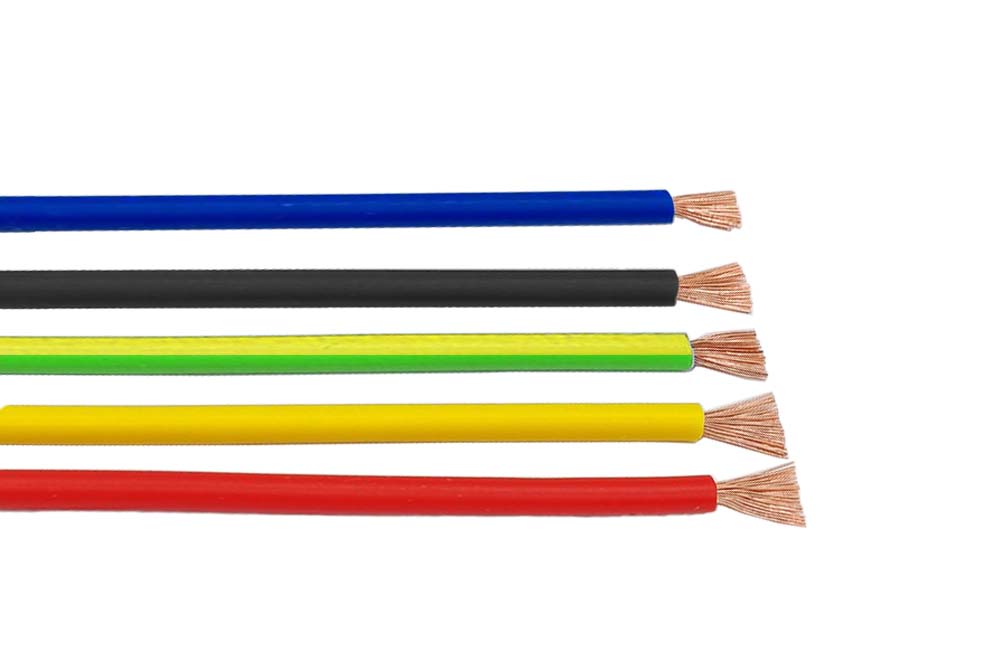

Insulation Colour | Red Black Blue Orange Yellow White Green/Yellow Grey Brown Violet Pink | |
PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
H05V-K: 300/500V
H07V-K: 450/750V
Fixed: -30°C to +70°C
Flexed: -5°C to +70°C
Fixed: 6 x overall diameter
EN 50525-2-31, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
UV Resistant
Class 5 flexible copper conductor
PVC (Polyvinyl Chloride)
Red Black Blue Orange Yellow White Green/Yellow Grey Brown Violet Pink
| H05V-K | ||
| NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | kg/km |
| 0.5 | 2.2 | 9.1 |
| 0.75 | 2.4 | 11.7 |
| 1 | 2.55 | 14.4 |
| H07V-K | ||
| NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | kg/km |
| 1.5 | 3 | 20.1 |
| 2.5 | 3.65 | 31.5 |
| 4 | 4.2 | 46.2 |
| 6 | 4.8 | 65.1 |
| 16 | 7.4 | 165.2 |
| 35 | 10.4 | 345.5 |
| 70 | 14.1 | 669.3 |
| 95 | 17.2 | 910.4 |
| 120 | 17.7 | 1129.4 |
| 150 | 19.6 | 1401 |
| 185 | 23 | 1741 |
| 240 | 26.4 | 2267.5 |
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Generally, we can deliver regular machines to customers immediately within 7-30 days.
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；The sheathed average thickness and thinnest point
Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
