H05RR-F Cable
Voltage:	300/500V
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	Rubber compound
	Sheath	Rubber compound
	Sheath Colour	Black, White, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Ordinary duty flexible rubber cords suitable for use in domestic premises, such as kitchens and offices.

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -25°C to +60°C

Minimum Bend Radius

Fixed: 3 x overall diameter

Flexed: 4 x overall diameter

STANDARDS

EN 50525-2-21, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

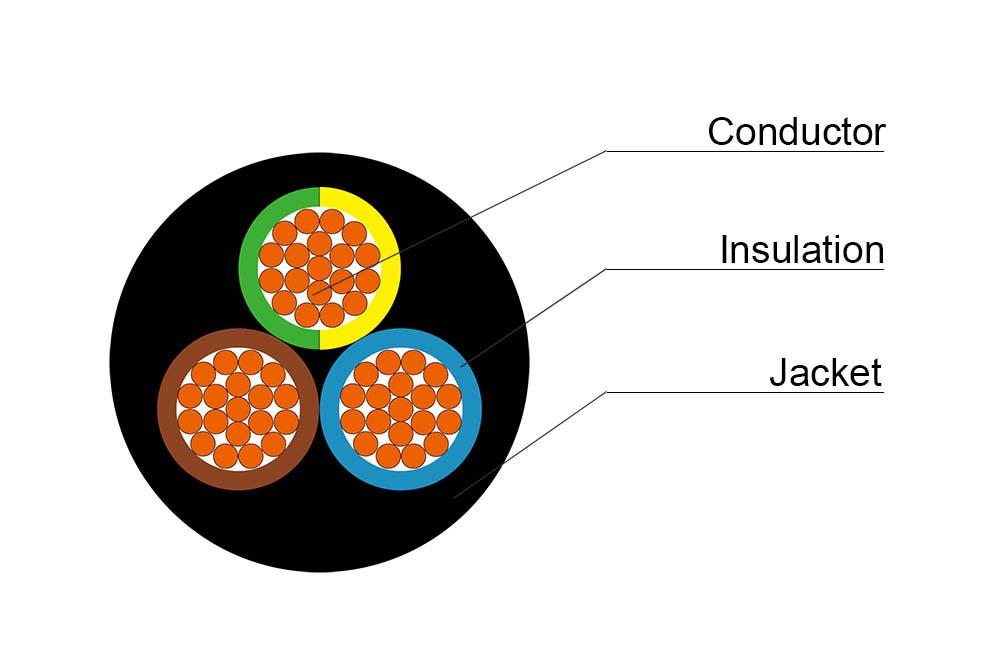

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

Rubber compound

Sheath

Rubber compound

Sheath Colour

Black, White, Other colours available on request

Core Identification

2 core: Blue Brown

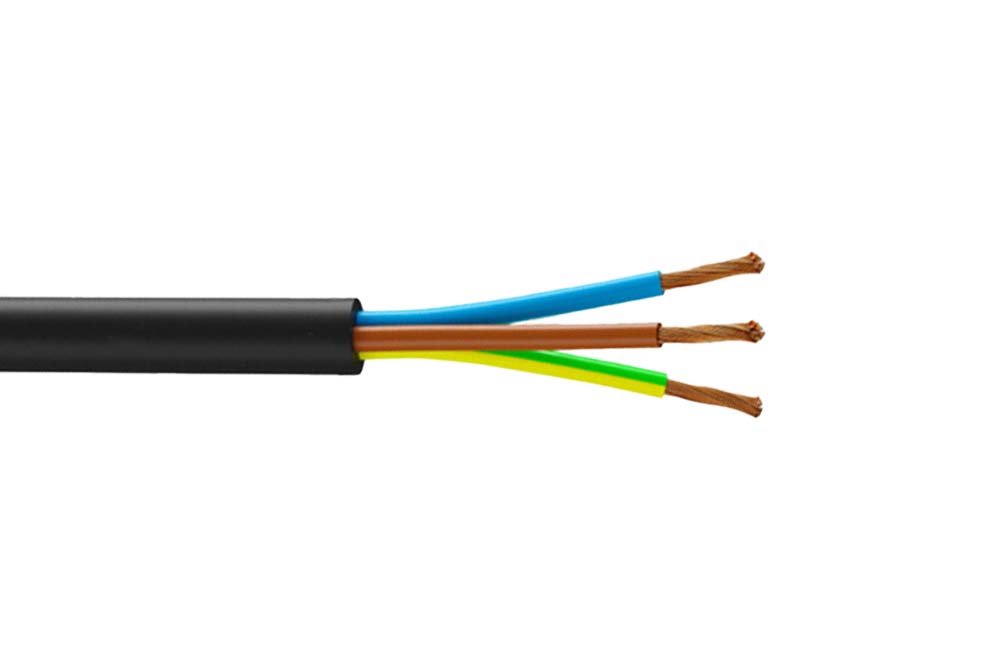

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

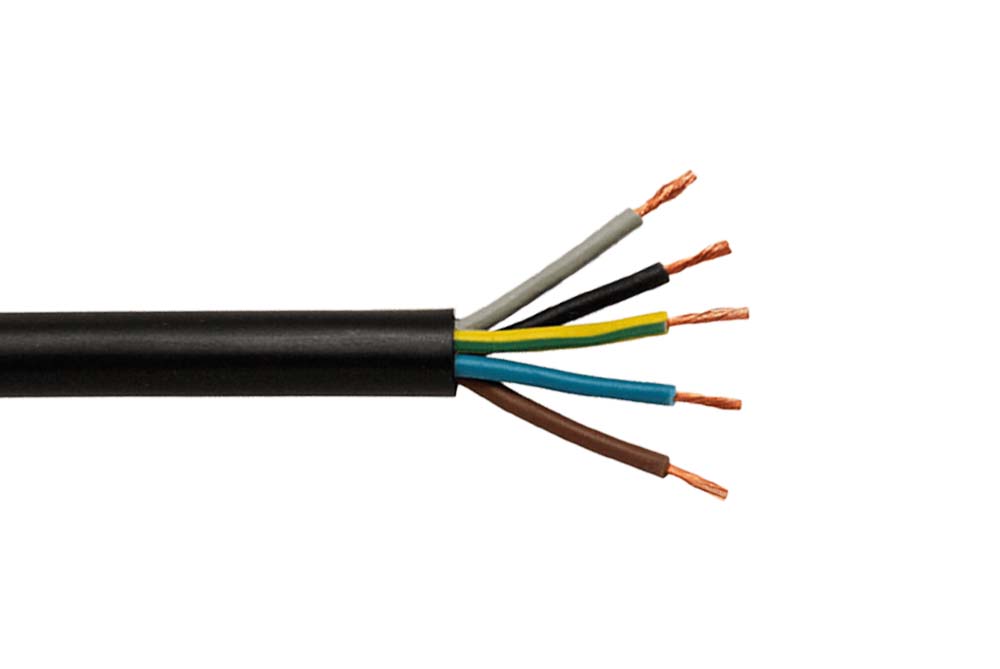

5 core: Green/Yellow Brown Black Grey Blue

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER
NO. OF CORES	mm2	mm	mm
2	0.75	0.6	6.1
2	1	0.6	6.6
2	1.5	0.8	7.8
2	2.5	0.9	9.2
2	4	1	10.8
3	0.75	0.6	6.6
3	1	0.6	7
3	1.5	0.8	8.4
3	2.5	0.9	9.9
3	4	1	11.7
3	6	1	13.3
4	0.75	0.6	7.3
4	1	0.6	7.6
4	1.5	0.8	9.4
4	2.5	0.9	11.1
4	4	1	13
4	6	1	14.5
5	0.75	0.6	8.1
5	1	0.6	8.4
5	1.5	0.8	10.3
5	2.5	0.9	12.4
5	4	1	14.5

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
