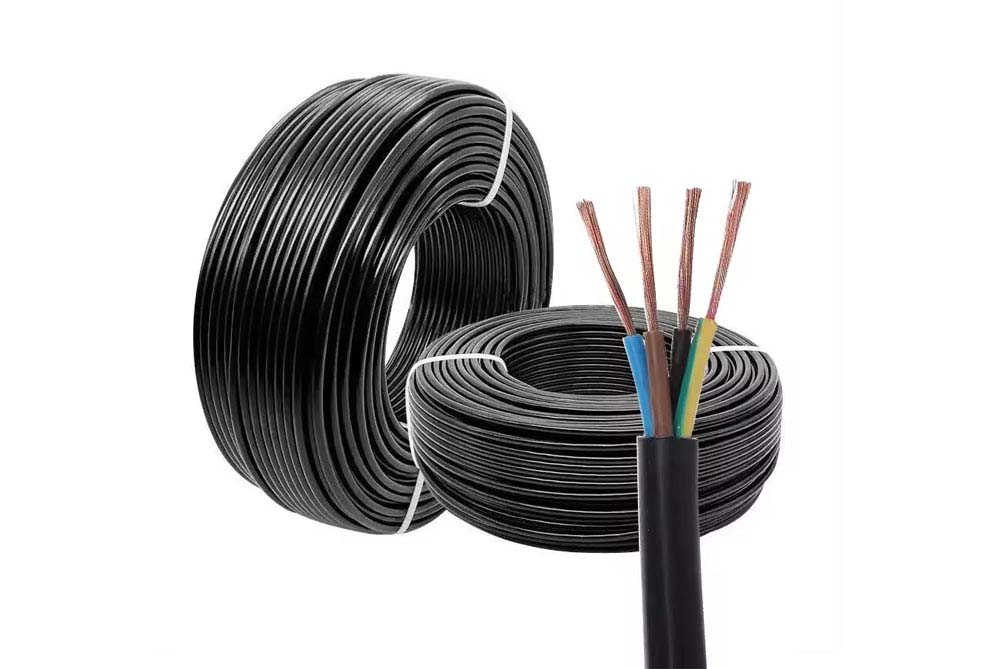

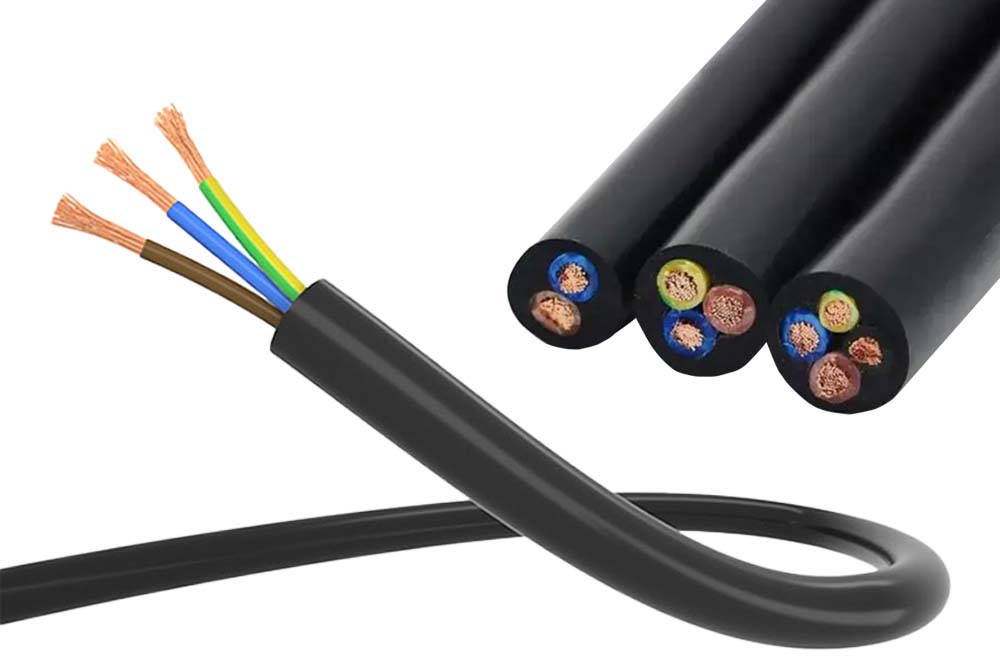

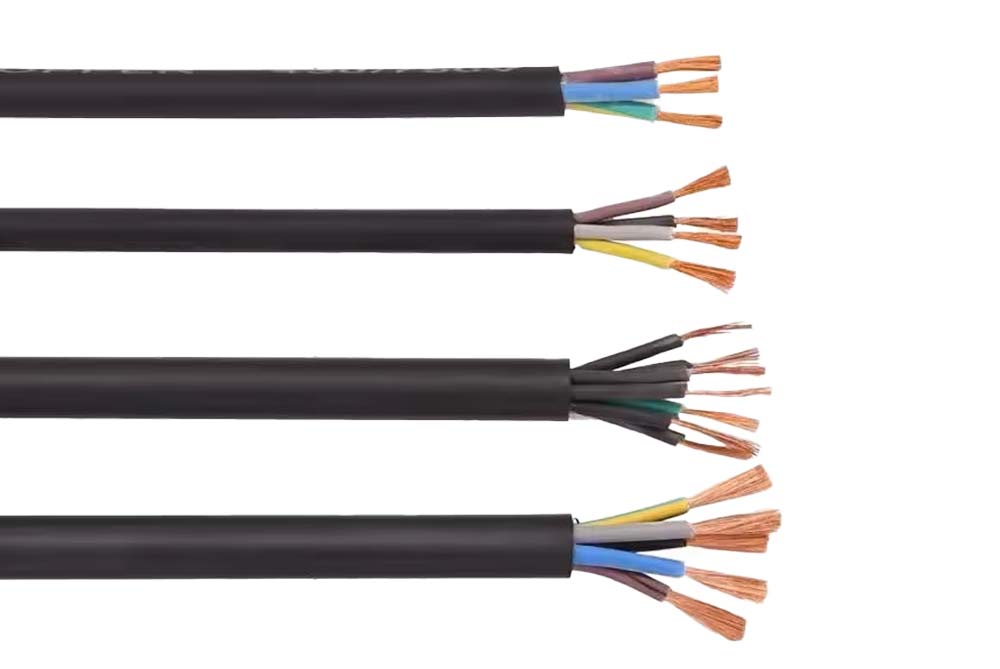

H05RN-F Flexible Rubber Cable
Voltage:	300/500V
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	EPR (Ethylene Propylene Rubber) EI4
	Sheath	PCP (Polychloroprene) EM2
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

For general use in domestic premises, kitchens, offices and industrial equipment where the cables are subjected to low mechanical stress. Suitable for dry, damp and wet installations, including temporary outdoor power. Supply of electricity and communications in buildings and other civil engineering works with the objective of limiting the generation and spread of fire.

Voltage Rating Uo/U

300/500V

Temperature Rating

-40°C to +60°C

Minimum installation and use temperature: -25°C

Maximum temperature of short circuit: +200°C

Minimum Bend Radius

Fixed: 4 x overall diameter

Mobile: 6 x overall diameter

STANDARDS

IEC/EN 50525-2-21, CEI 20-107/2-21, CEI 20-19/4

(CENELEC HD 22.4 S4), BS 6500:2000, NF C 32-102-4

VDE 0282-4, EN 50575:2014 + EN 50575/A1:2016

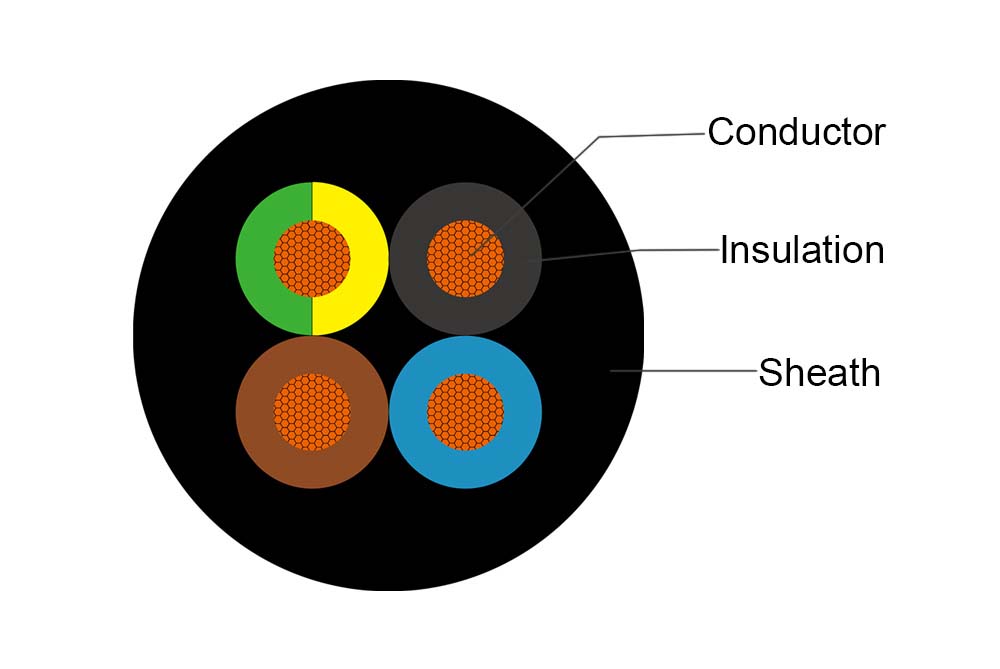

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

EPR (Ethylene Propylene Rubber)EI4

Sheath

PCP (Polychloroprene)EM2

Sheath Colour

Black, Other colours available on request

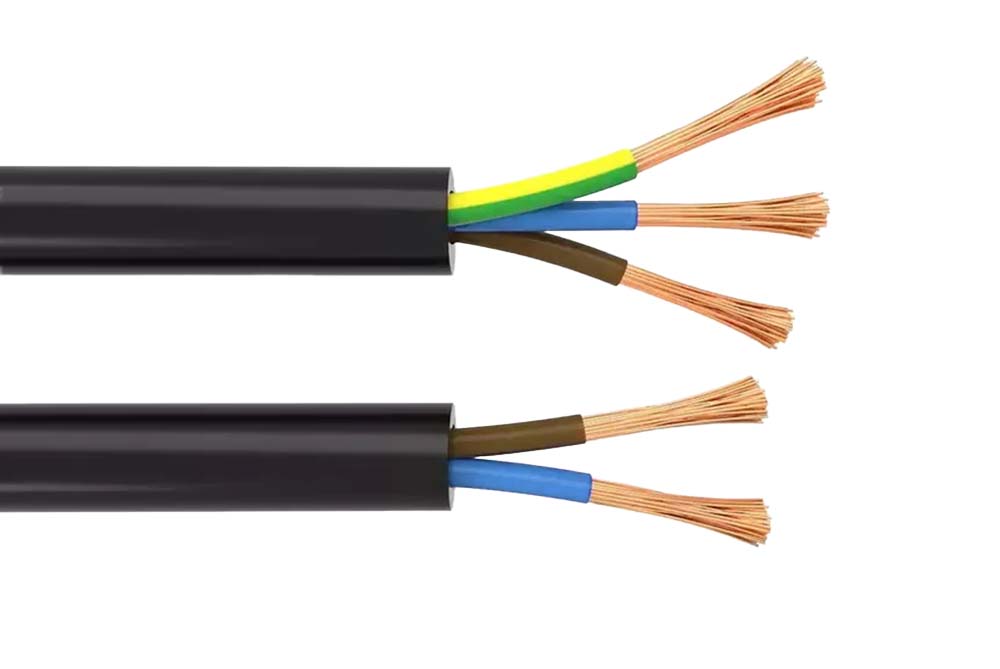

Core Identification

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	MAXIMUM CONDUCTOR DIAMETER	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER mm		NOMINAL WEIGH
NO. OF CORES	mm2	mm	mm	Minimum	Maximum	kg/km
2	0.75	0.95	0.6	5.7	7.4	44
2	1	1.3	0.6	6.1	8.0	55
3	0.75	0.95	0.6	6.2	8.1	60
3	1	1.3	0.6	6.5	8.5	72
4	0.75	0.95	0.6	6.8	8.8	82
4	1	1.30	0.6	7.1	9.3	87

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
