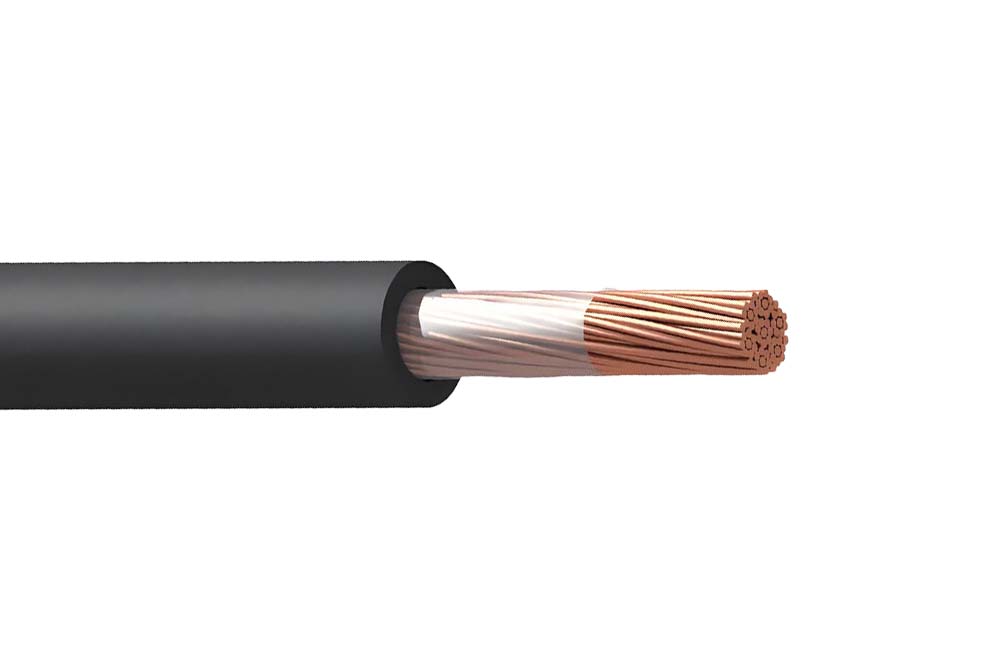

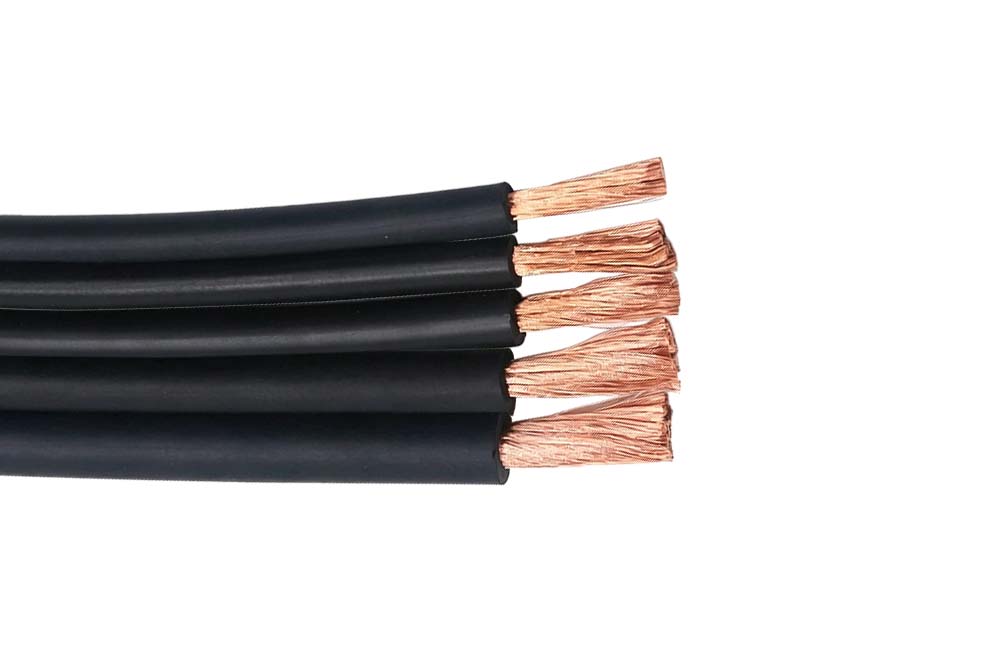

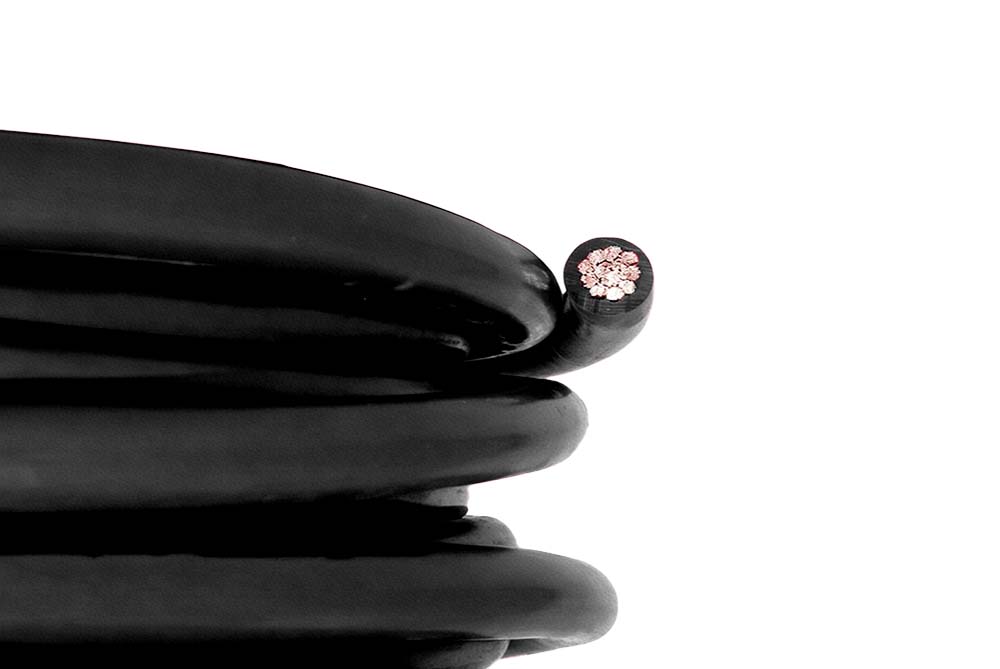

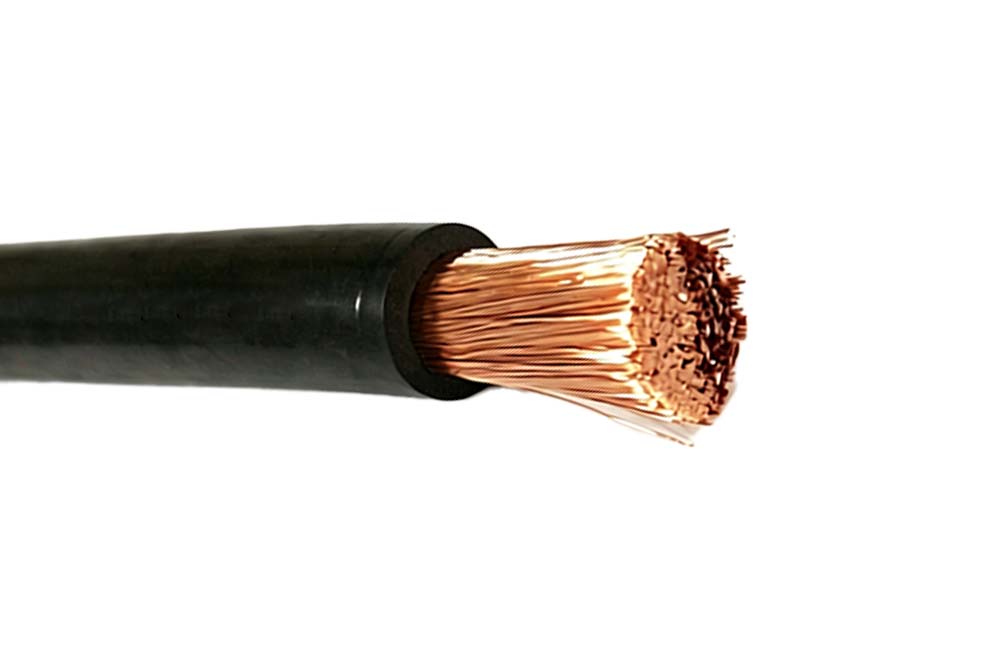

H01N2-E Welding Cable
Voltage:	100V
Structure:	Conductor	Generally to Class 6 flexible copper conductor
	Separator	PET (Polyester Tape)
	Sheath	Rubber compound
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.

Voltage Rating Uo/U

100V

Temperature Rating

Fixed: -40°C to +85°C

Flexed: - 20°C to +85°C

Minimum Bend Radius

Flexed: 6 x overall diameter

STANDARDS

EN 50525-2-81, EN 60228, HD 22.6, VDE 0282-6

Flame Retardant according to IEC/EN 60332-1-2

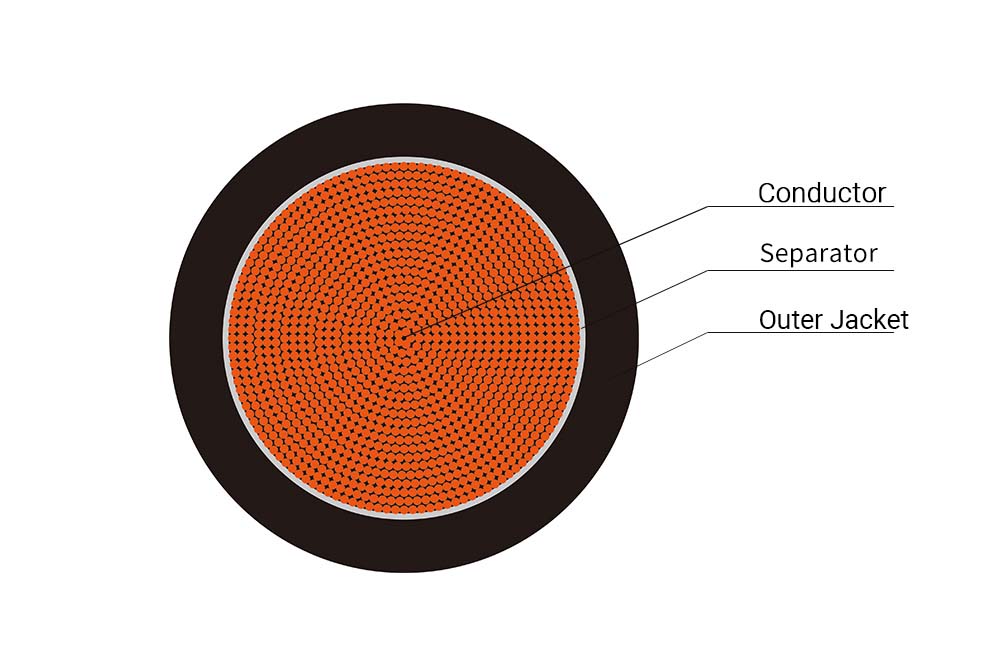

CONSTRUCTION

Conductor

Generally to Class 6 flexible copper conductor

Separator

PET (Polyester Tape)

Sheath

Rubber compound

Sheath Colour

Black, Other colours available on request

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm2	mm	mm	kg/km
1	120	1.8	18.5	1195
1	150	1.8	21.3	1485

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
