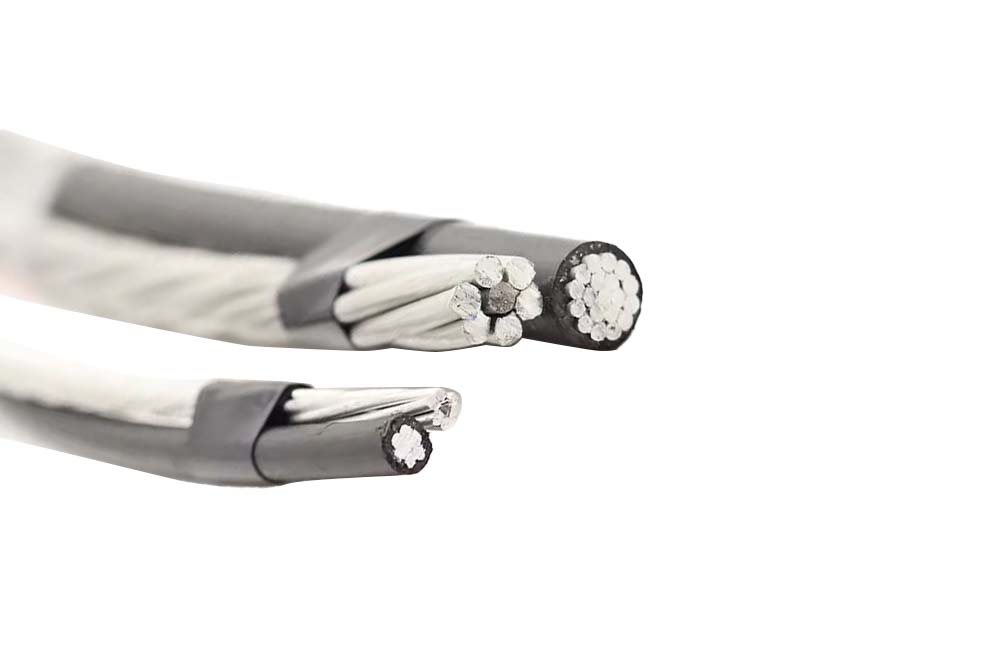

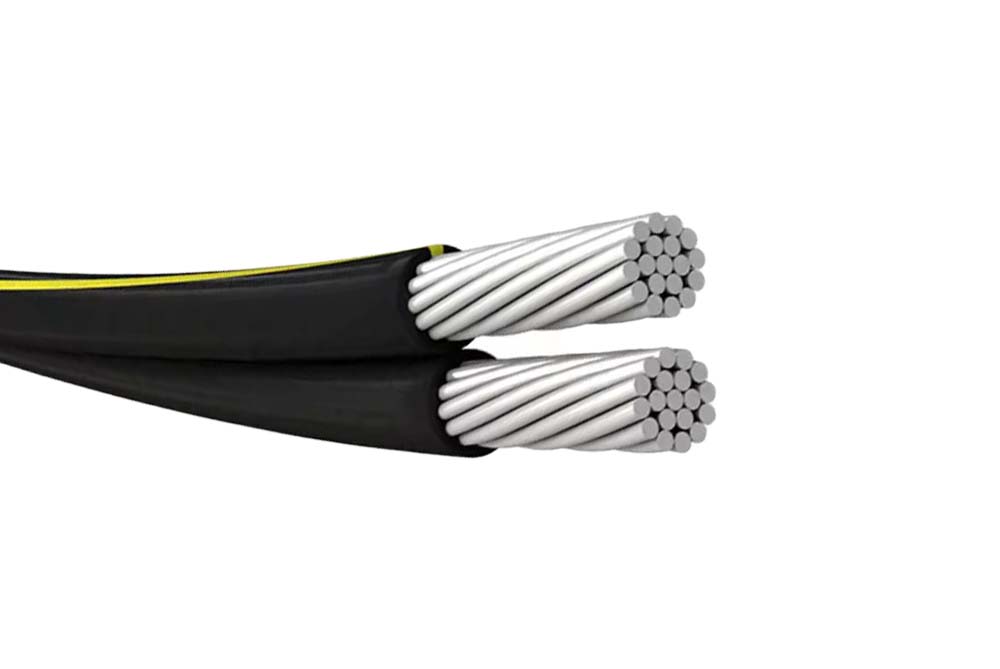

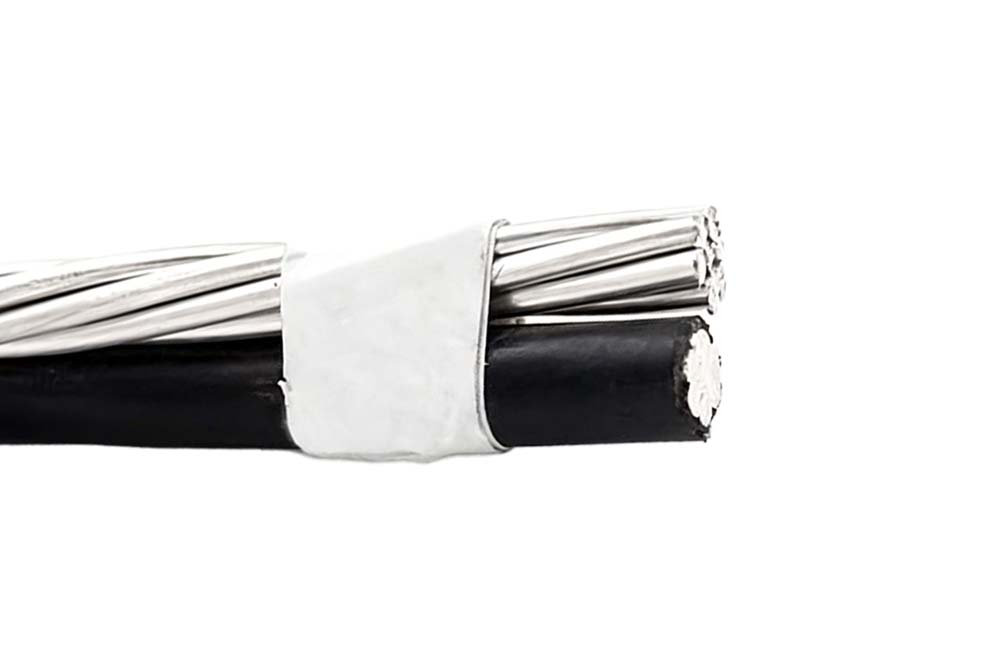

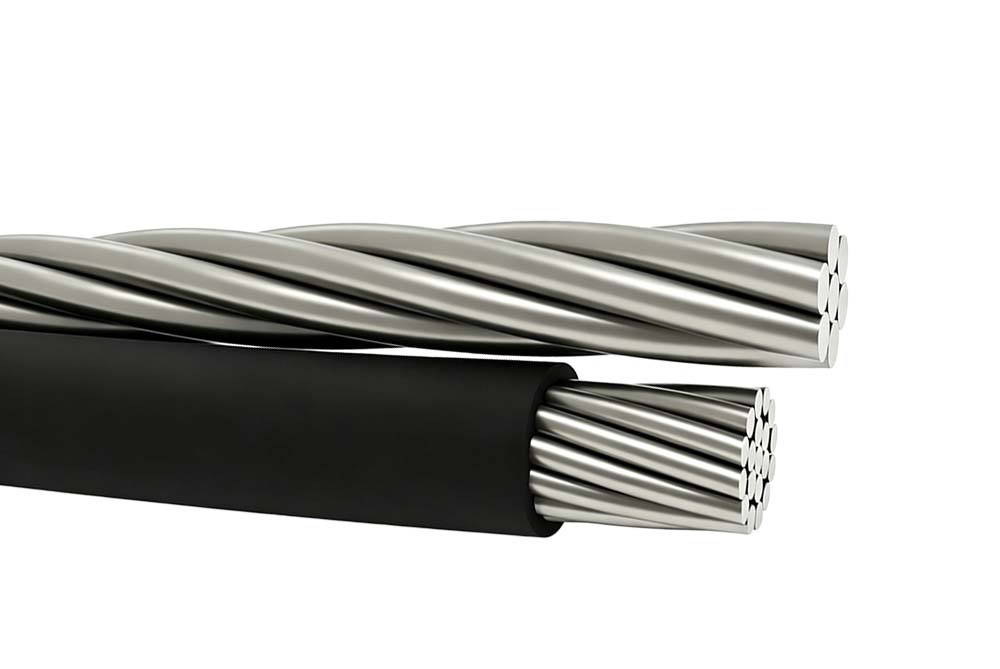

Duplex Service Drop overhead ABC cable
Voltage:	0.6/1kV
Structure:	Conductor	Aluminium conductor
	Insulation	XLPE
	Insulation Colour	Black, customization is available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-40°C to +90°C

STANDARDS

IEC61089

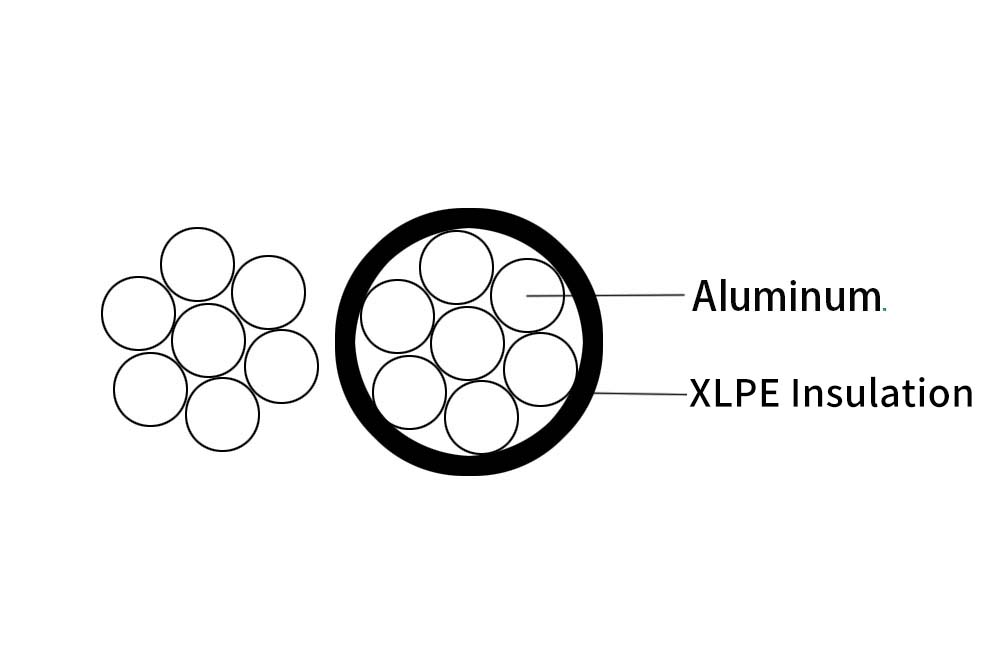

CONSTRUCTION

Conductor

Aluminium conductor

Insulation

XLPE

Insulation Colour

Black, customization is available

AAC Neutral Messenger
Code Name	Phase Conductor			Bare Neutral		Approx.Weight
	Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG	-	mil	AWG	-	lbs/1000ft
Pekingese	6	Solid	45	6	7/w	63.5	61.7
Collie	6	7/w	45	6	7/w	66.8	63.1
Dachshund	4	Solid	45	4	7/w	95.5	93.4
Spaniel	4	7/w	45	4	7/w	100.5	95.4
Doberman	2	7/w	45	2	7/w	152.7	145.7
Malemute	1/0	19/w	60	1/0	7/w	242.6	234.2

6201 Alloy Neutral Messenger
Code Name	Phase Conductor			Bare Neutral		Approx.Weight
	Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG	-	mil	AWG	-	lbs/1000ft
Chihuahua	6	Solid	45	6	7/w	67.6	65.8
Vizsla	6	7/w	45	6.0	7/w	70.9	67.2
Harrier	4	Solid	45	4	7/w	102	99.9

ACSR Neutral Messenger
Code Name	Phase Conductor			Bare Neutral		Approx.Weight
	Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG	-	mil	AWG	-	lbs/1000ft
Setter	6	Solid	45	6	6/1	75	73.2
Shepherd	6	7/w	45	6	6/1	78.3	74.6
Eskimo	4	Solid	45	4	6/1	113.7	111.6
Terrier	4	7/w	45	4	6/1	118.7	113.6
Chow	2	7/w	45	2	6/1	181.7	174.7
Bull	1/0	19/w	60	1/0	6/1	288.7	280.3

6201 Alloy Neutral Messenger
Code Name	Phase Conductor			Bare Neutral		Approx.Weight
	Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG	-	mil	AWG	-	lbs/1000ft
Whippet	4	7/w	45	4	7/w	107	101.9
Schnauzer	2	7/w	45	2	7/w	163.3	156.2
Heeler	1/0	19/w	60	1/0	7/w	259.2	250.8

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
