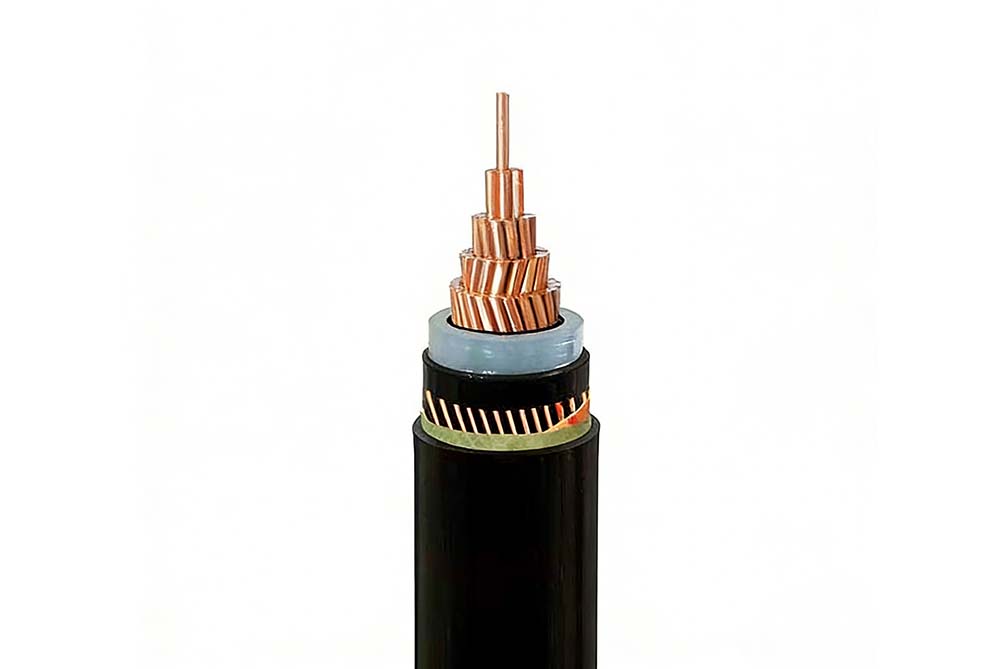

BS 7870-4.10 MDPE 12.7/22 (24)kV Cable
Voltage:12.7/22 (24)kV
Structure:ConductorClass 2 Stranded Copper
InsulationXLPE (Cross-Linked Polyethylene)
ScreenCopper wires and copper tape
JacketMDPE (Medium Density Polyethylene)
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Medium Voltage cable for power distribution and power supply stations used in Utility and Industrial applications, for the rated voltage of 12.7/22 (24)kV.

CHARACTERISTICS

Voltage Rating Uo/U

12.7/22 (24)kV

Temperature Rating

Maximum conductor operating temperature: +90ºC

Initial temperature at S.C.C for metallic screen: +80°C

Maximum conductor temperature during S.C: +250ºC

Minimum Bending Radius

20 x overall diameter

STANDARDS

BS 7870-4.10, BS EN 60228, HD620 S2 Part 10O / 11O

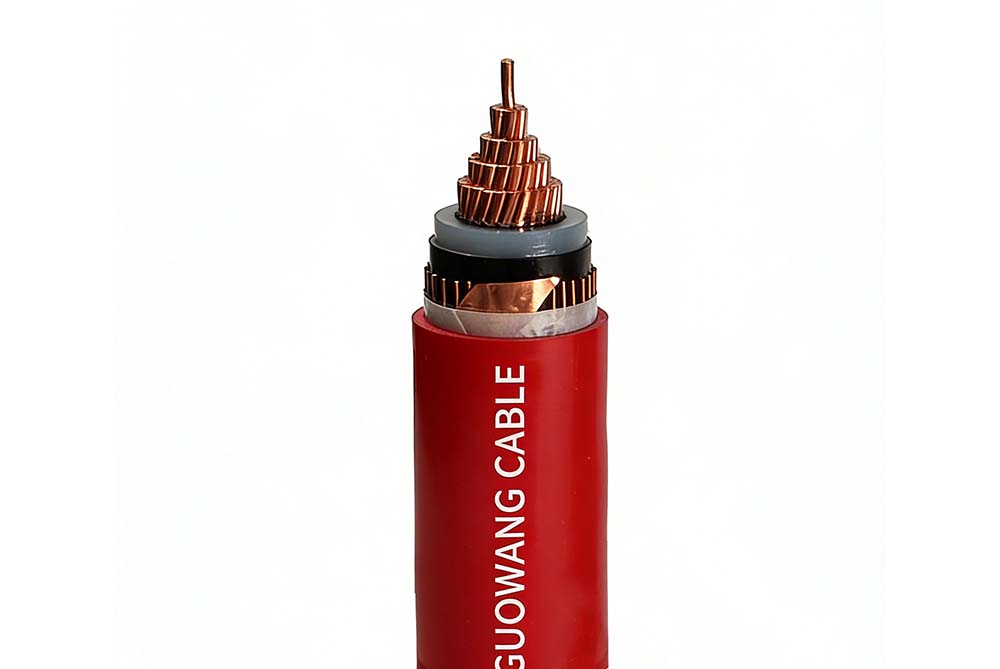

CONSTRUCTION

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Bonded)

Insulation

XLPE (Cross Linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Strippable)

Longitudinal Waterblock

Semi-conductive waterblocking tape

Metallic Screen

Copper Wires And Open Helix Copper Tape

Longitudinal Waterblock

Non-conductive waterblocking tape

Outer Sheath

MDPE (Medium Density Polyethylene)

Sheath Colour

Black


NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL INSULATION THICKNESS
mm
NOMINAL SCREEN SECTIONAL AREA
mm2
NOMINAL INSULATION THICKNESS
mm
NOMINAL OVERALL DIAMETER
mm
NOMINAL WEIGHT
kg/km
1705.5351.5132.41502
1955.5351.5133.71768
11205.5351.635.32037
11505.5351.636.92334
11855.5351.6838.62698
12405.5351.7741.23282
13005.5351.7743.63887
14005.5351.8546.44740
15005.5351.94505764
16305.5352.0254.57186
18005.5352.19599020
