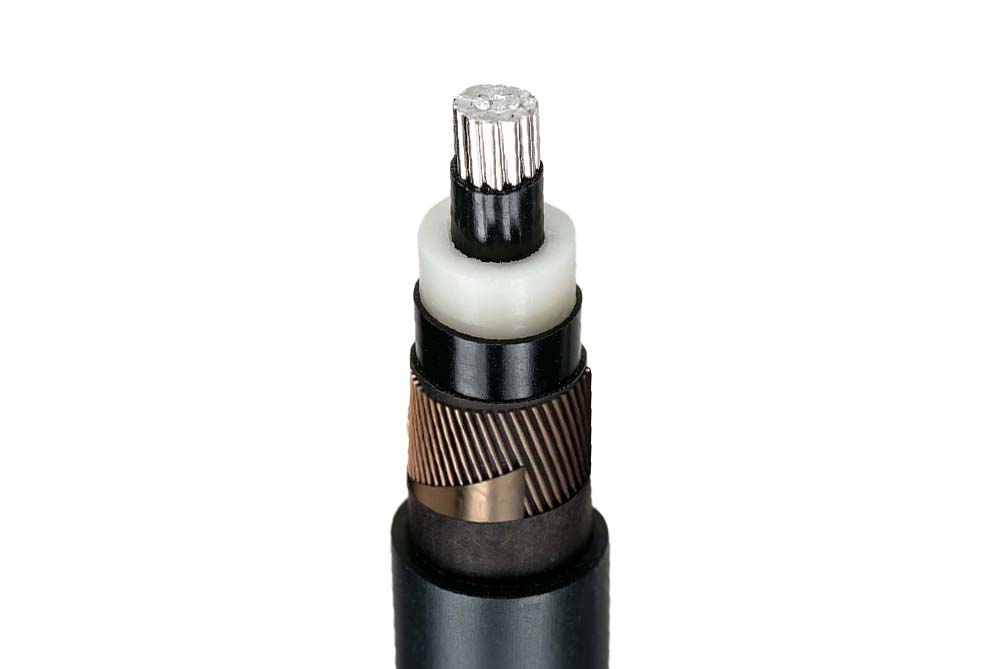

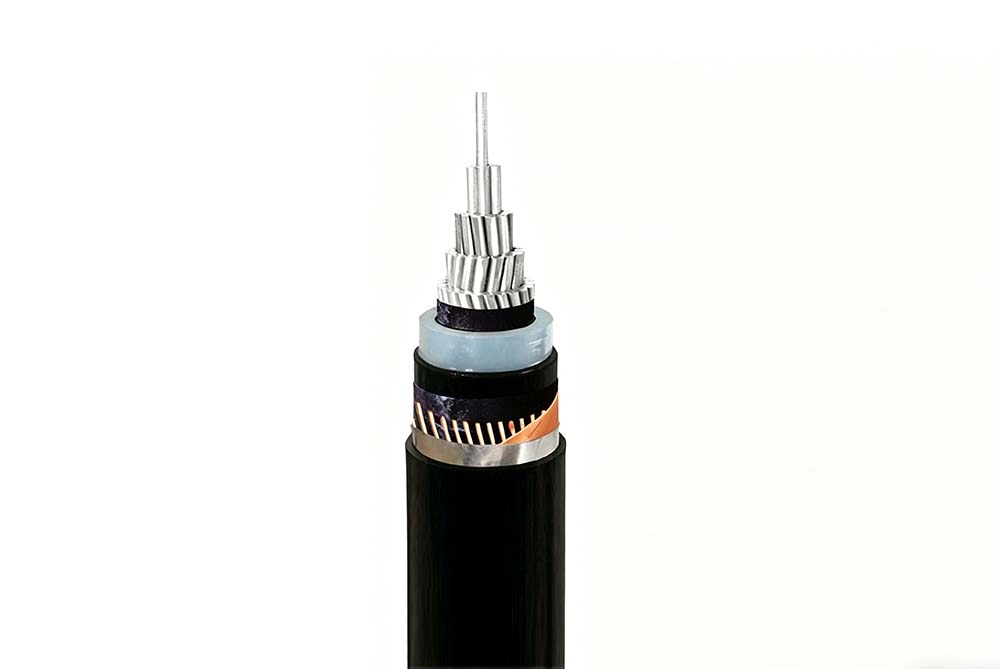

BS 7870-4.10 Aluminium MDPE 12.7/22 (24)kV Cable
Voltage:12.7/22 (24)kV
Structure:ConductorClass 2 Stranded Aluminium
InsulationXLPE (Cross-Linked Polyethylene)
Screen

Copper Wires And Open Helix Copper Tape

JacketMDPE (Medium Density Polyethylene)


  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Medium Voltage cable for power distribution and power supply stations used in Utility and Industrial applications, for the rated voltage of 12.7/22 (24)kV.

CHARACTERISTICS

Voltage Rating Uo/U

12.7/22 (24)kV

Temperature Rating

Maximum conductor operating temperature: +90ºC

Initial temperature at S.C.C for metallic screen: +80°C

Maximum conductor temperature during S.C: +250ºC

Maximum screen temperature during S.C: +150ºC

Minimum Bending Radius

20 x overall diameter

STANDARDS

BS 7870-4.10, BS EN 60228, HD620 S2 Part 10O / 11O

CONSTRUCTION

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Bonded)

Insulation

XLPE (Cross Linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Strippable)

Longitudinal Waterblock

Semi-conductive waterblocking tape

Metallic Screen

Copper Wires And Open Helix Copper Tape

Longitudinal Waterblock

Non-conductive waterblocking tape

Outer Sheath

MDPE (Medium Density Polyethylene)

NO.
OF
CORE
NOMINAL CROSS
SECTIONAL AREA
NOMINAL
INSULATION THICKNESS
NOMINAL
SCREEN SECTIONAL AREA
NOMINAL SHEATH THICKNESSNOMINAL OVERALL DIAMETER
NOMINAL
WEIGHT
mm2mmmm2mmmmkg/km
1705.5351.5132.21099
1955.5351.5133.71204
11205.5351.635.31327
11505.5351.637.51467
11855.5351.6838.61593
12405.5351.7741.21825
13005.5351.7743.52058
14005.5351.8546.32407
15005.5351.9449.92812
16305.5352.0254.23386
18005.5352.1959.44118
