BS 7835 XLPE LSZH 8.7/15kV Cable
Voltage:8.7/15kV
Structure:ConductorClass 2 stranded copper conductor
InsulationXLPE (Cross-Linked Polyethylene)
Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

JacketLSZH (Low Smoke Zero Halogen)


  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Medium voltage LSZH power cables for power networks, underground and in cable ducting.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

8.7/15 (17.5) kV

Temperature Rating

Fixed: 0°C to +90°C

Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

STANDARDS

BS 7835, IEC/EN 60228

Flame Retardant according to IEC/EN 60332-1-2

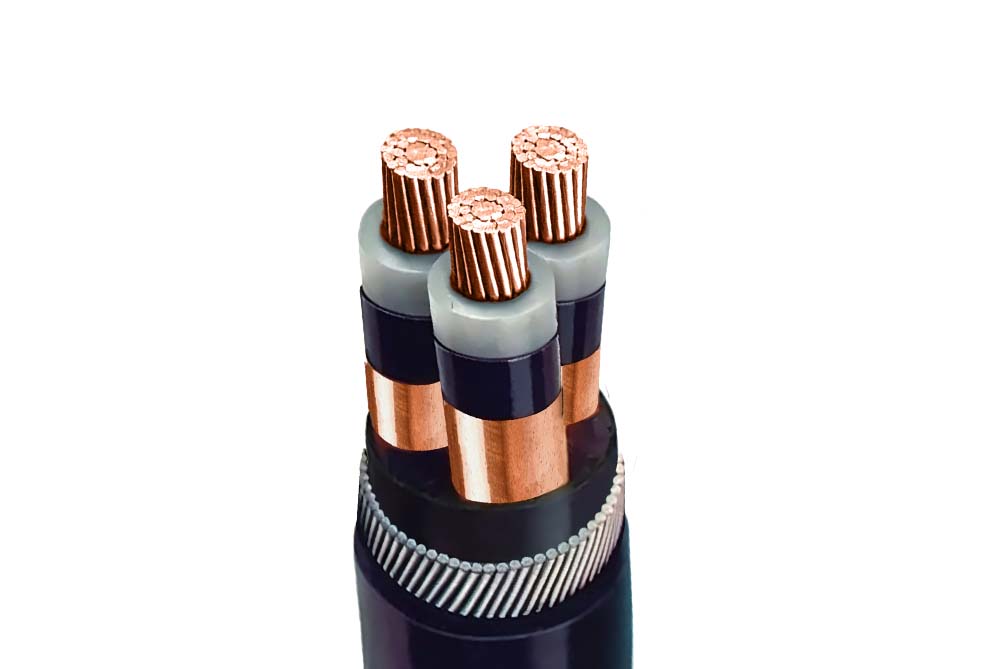

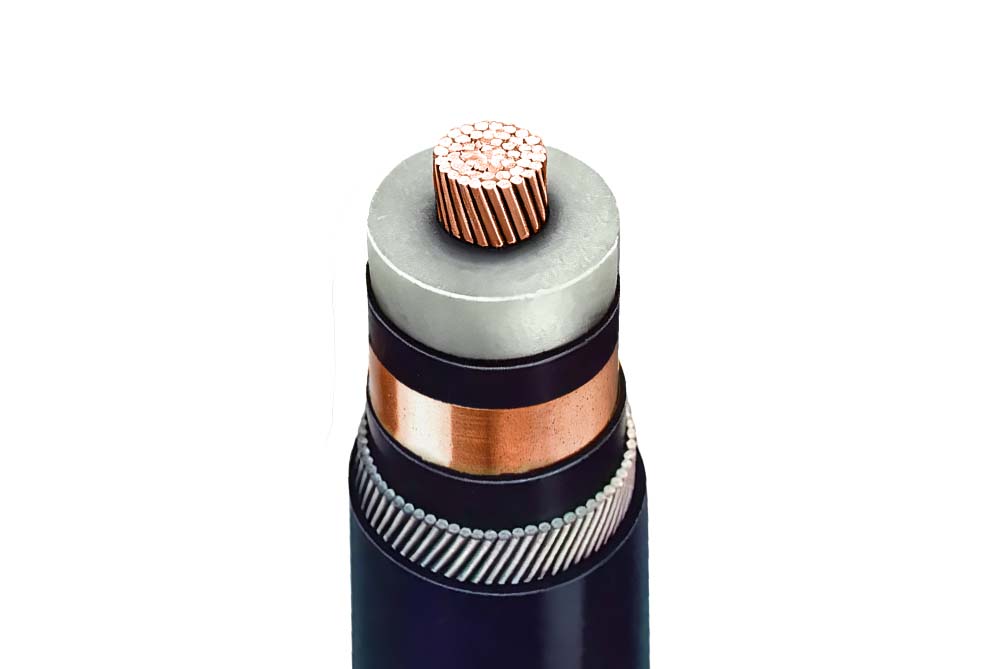

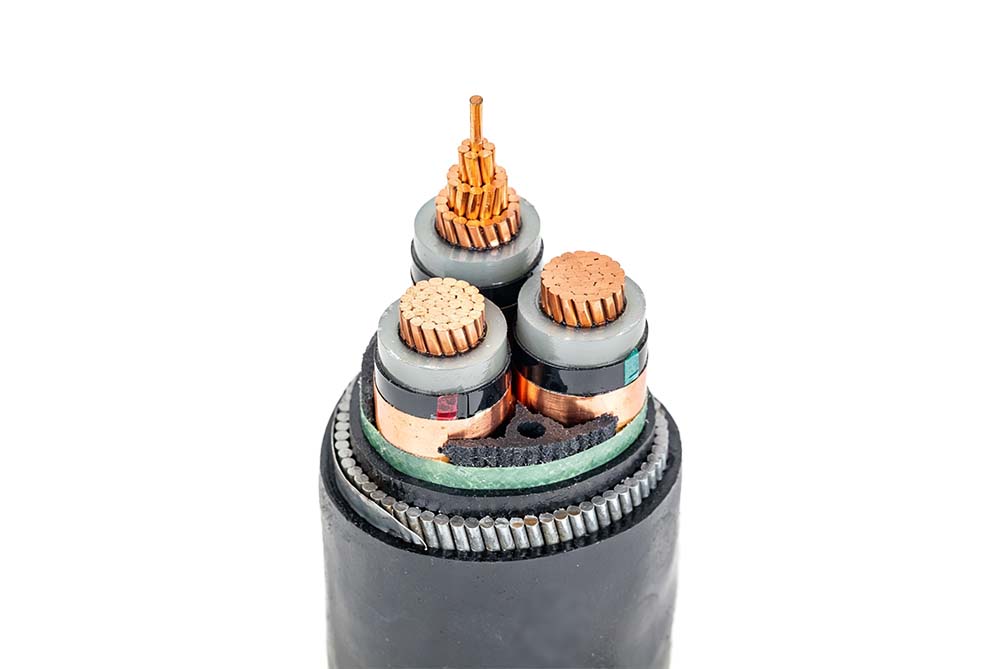

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen

Individual or collective overall copper tape screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

Sheath

LSZH (Low Smoke Zero Halogen)


NO.
OF
CORES
NOMINAL CROSS
SECTIONAL AREA
MINIMUM THICKNESS
mm
NOMINAL THICKNESS OF
SEMI CONDUCTIVE LAYER
mm
NOMINAL DIAMETER
mm
NOMINAL
WEIGHT
mm2InsulationOuter SheathInnerOuterOver InsulationOverallkg/km
1503.951.320.500.8019.50291300
1703.951.400.500.8021.10311600
1953.951.480.500.8022.80342000
11203.951.480.500.8024.10352250
11503.951.560.500.8026.00372600
11853.951.560.500.8027.30393000
12403.951.640.500.8030.00423600
13003.951.720.500.8032.10454500
14003.951.800.500.8035.00485400
15003.951.880.500.8038.00516500
16303.951.960.500.8042.10568000
3503.952.120.500.8019.50575250
3703.952.200.500.8021.10616250
3953.952.280.500.8022.80657300
31203.952.360.500.8024.10688300
31503.952.520.500.8026.007410250
31853.952.600.500.8027.307711500
32403.952.760.500.8030.008313800
33003.952.840.500.8032.108816200
34003.953.080.500.8035.009519300
35003.953.240.500.8038.0010323100


  • HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

    Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

  • HOW IS YOUR DELIVERY TIME?

    Generally, we can deliver regular machines to customers immediately within 7-30 days.

  • HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

    Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

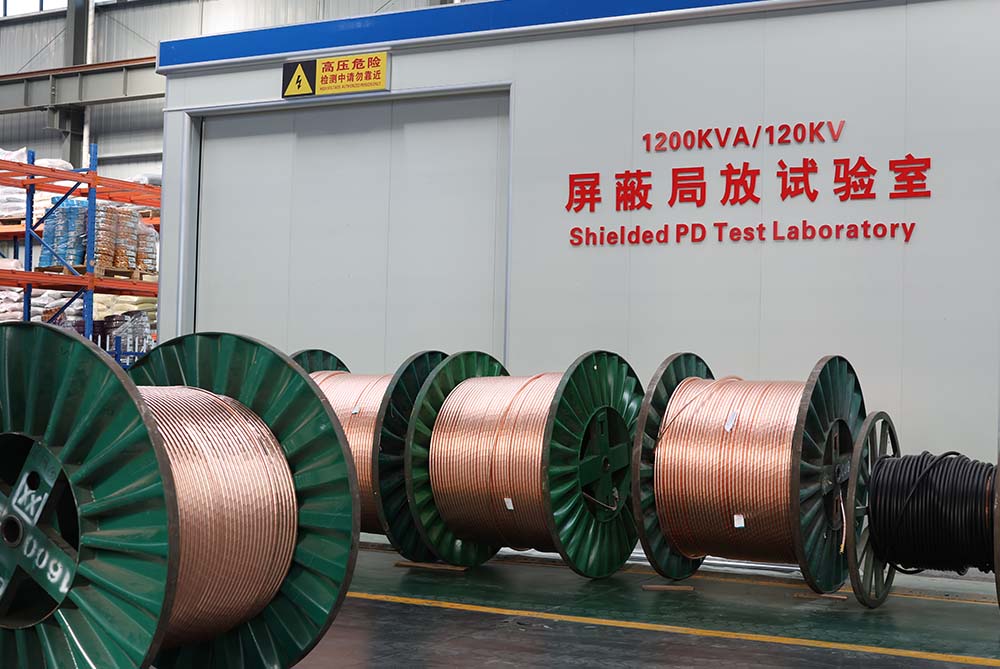

THE CABLE TEST
