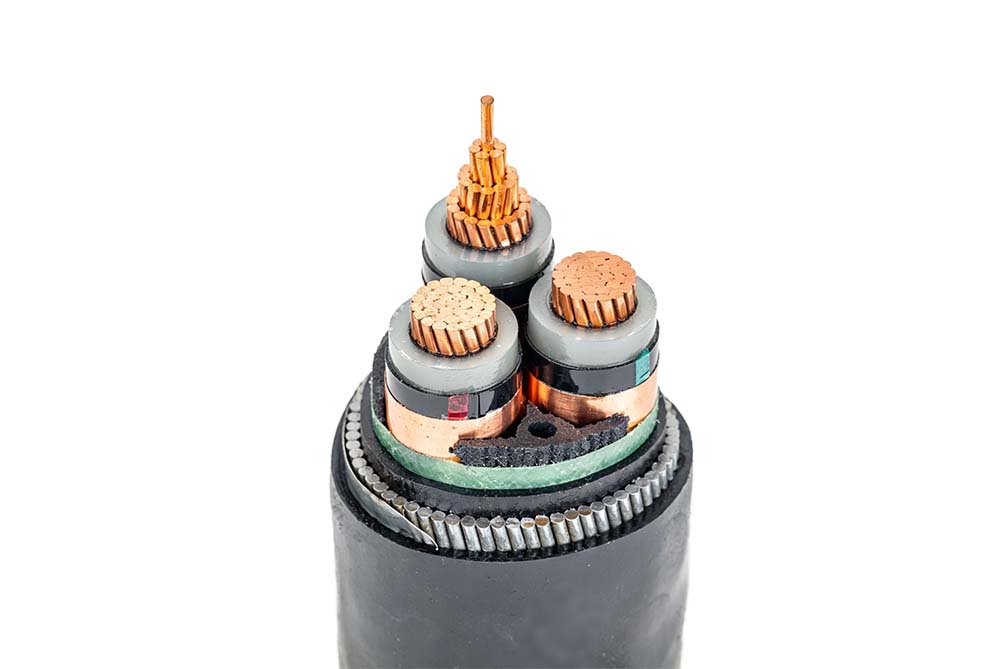

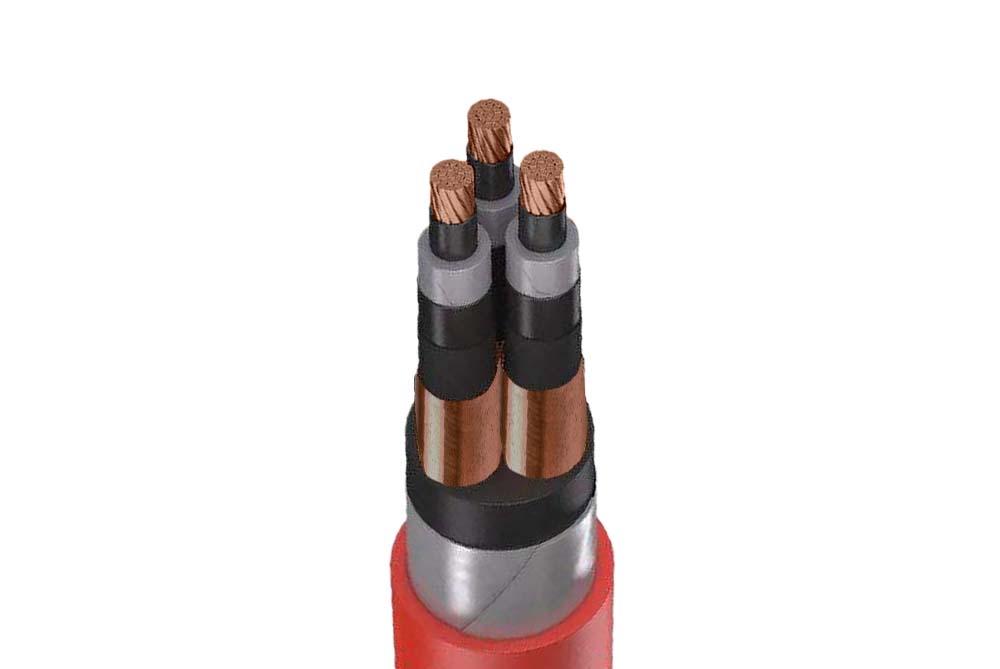

BS 6622 CU XLPE AWA/SWA PVC 3.8/6.6kV Cable
Voltage:	3.8/6.6kV
Structure:	Conductor	Class 2 Stranded Circular Compacted Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Armour	Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured)
	Jacket	PVC (Polyvinyl Chloride)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Armoured power distribution cables for external and direct burial applications in power networks.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

3.8/6.6 (7.2) kV

Temperature Rating

Maximum conductor operating temperature: 90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

Single core: 15 x overall diameter

Multi core: 13 x overall diameter

STANDARDS

BS 6622, IEC/EN 60228

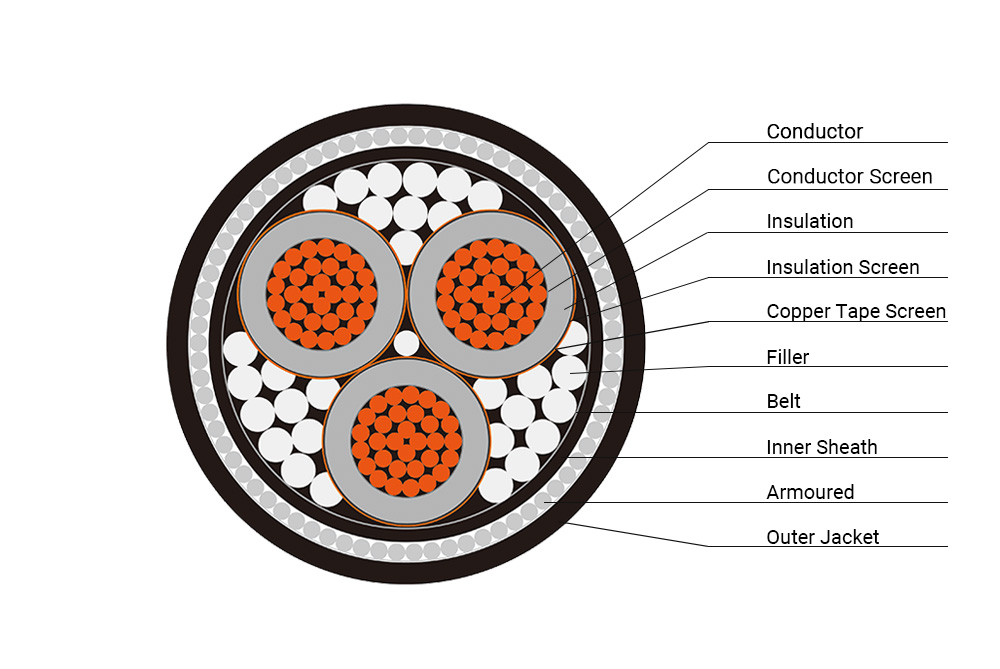

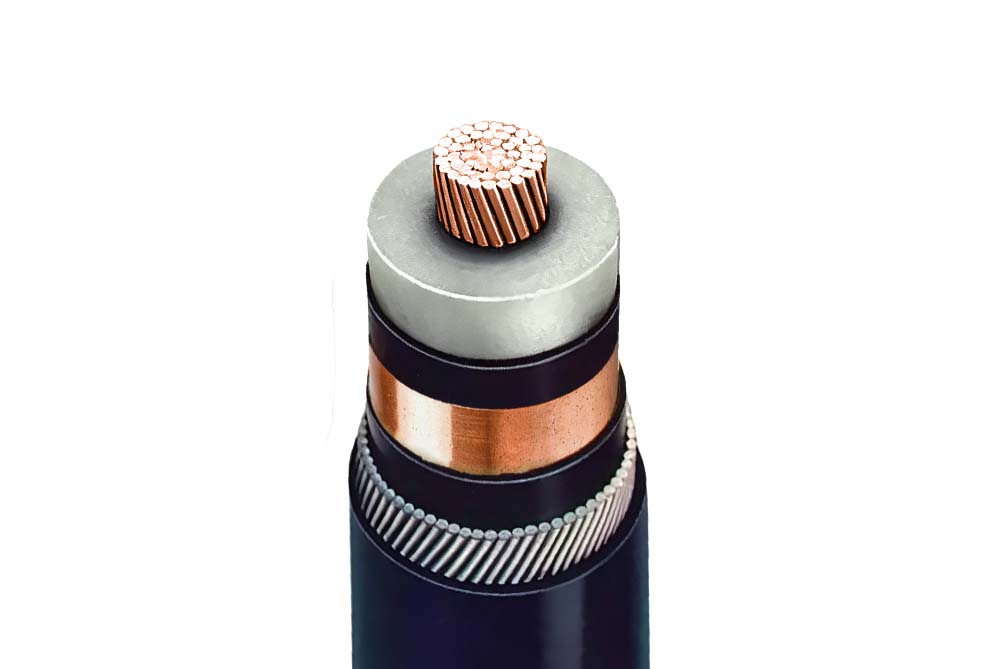

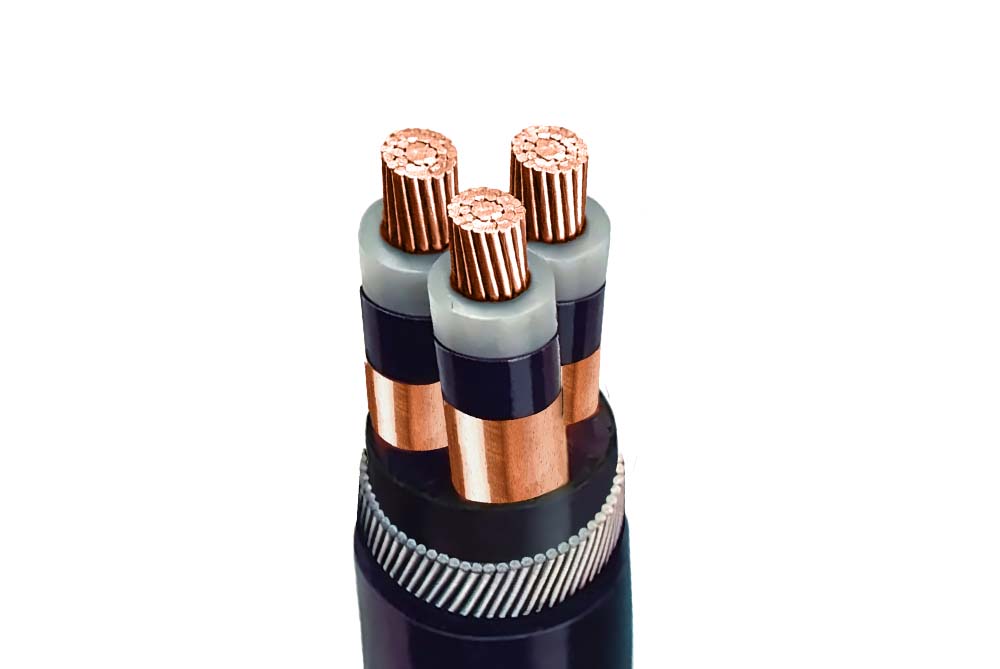

CONSTRUCTION

Conductor

Class 2 Stranded Circular Compacted Copper

Conductor Screen

Extruded Inner Semi Conductor (Bonded Type)

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi Conductor

Extruded Outer Semi Conductor (Strippable Type)

Metallic Screen

Copper tape with 10% overlap

Inner Sheath

PVC (Polyvinyl Chloride)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

Outer Sheath

PVC (Polyvinyl Chloride)

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL INSULATION THICKNESS	NOMINAL OUTER SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORE	mm2	mm	mm	mm	kg/km
1	95	2.5	1.9	30.4	1721
1	120	2.5	1.9	31.8	1996
1	150	2.5	2	33.6	2333
1	185	2.5	2.1	35.6	2752
1	240	2.6	2.1	38.2	3388
1	300	2.8	2.2	41.2	4060
1	400	3	2.3	44.4	4989
1	500	3.2	2.5	49.4	6269
1	630	3.2	2.6	54.3	7822
1	800	3.2	2.7	58.6	9729
3	95	2.5	2.7	57.6	6765
3	120	2.5	2.9	61	7784
3	150	2.5	3	64.9	8989
3	185	2.5	3.1	68.3	10285
3	240	2.6	3.3	74.5	12617
3	300	2.8	3.5	82.8	15947
3	400	3	3.8	90.3	19403
