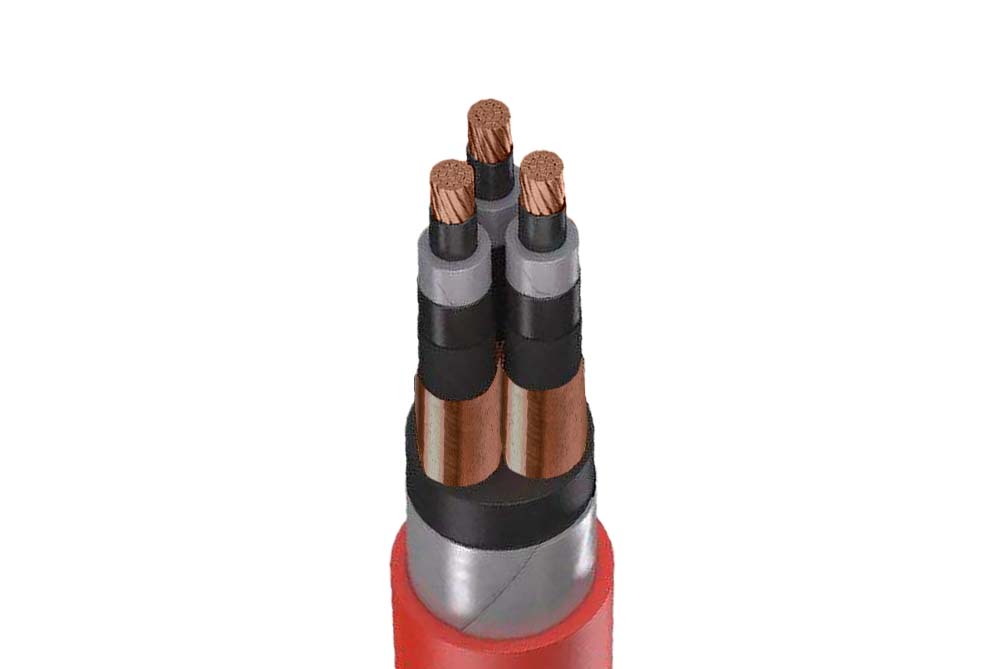

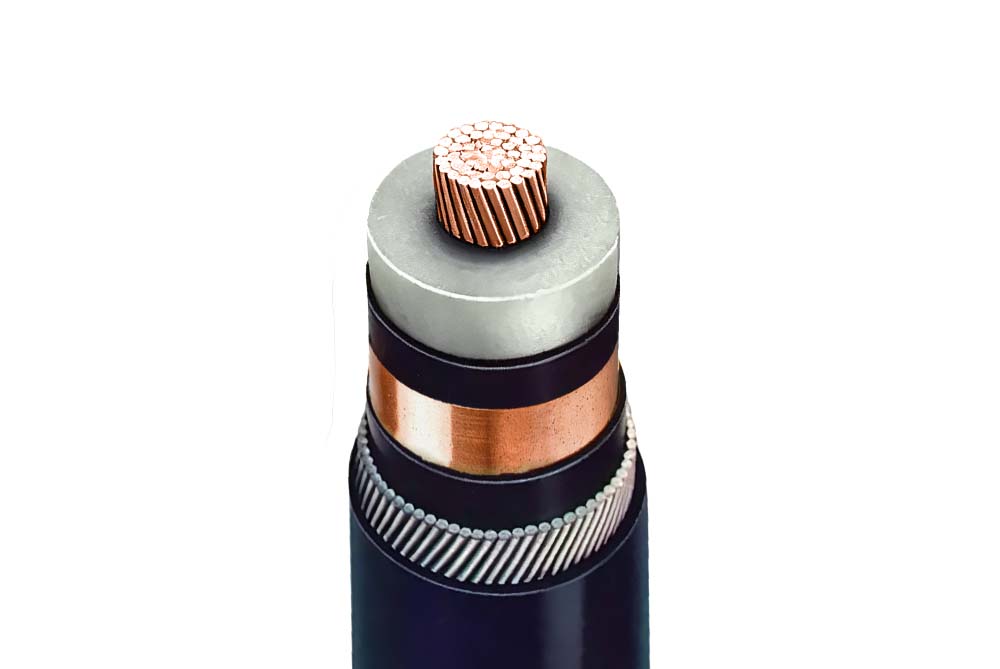

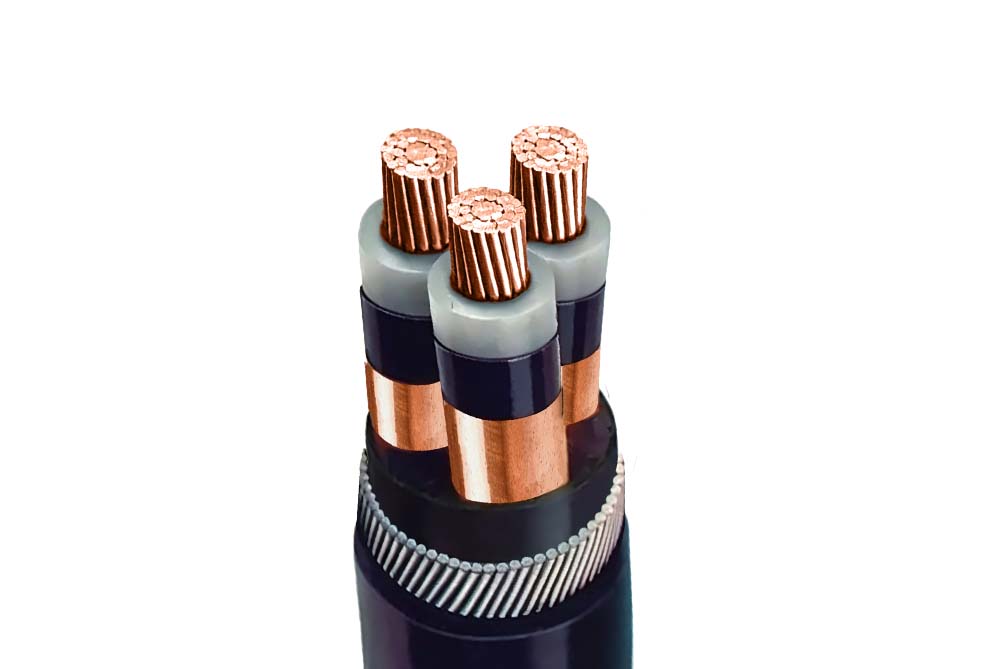

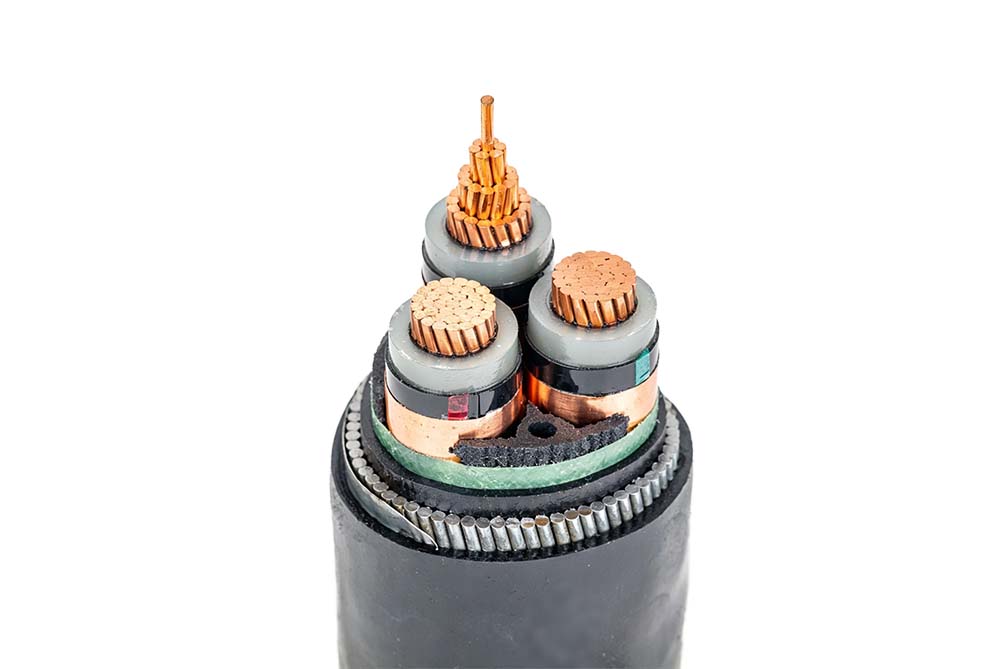

BS 6622 XLPE PVC 8.7/15kV Cable
Voltage:	8.7/15kV
Structure:	Conductor	Class 2 stranded copper conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Armour	Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Galvanised Steel Wire Armoured
	Jacket	PVC (Polyvinyl Chloride)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage PVC power cables for power networks, underground and in cable ducting.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

8.7/15 (17.5) kV

Temperature Rating

Fixed: 0°C to +90°C

Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

STANDARDS

BS 6622, IEC/EN 60228

Flame Retardant according to IEC/EN 60332-1-2

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen

Individual or collective overall copper tape screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

PVC (Polyvinyl Chloride)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

Sheath

PVC (Polyvinyl Chloride)

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	MINIMUM THICKNESS mm		NOMINAL THICKNESS OF SEMI CONDUCTIVE LAYER mm		NOMINAL DIAMETER mm		NOMINAL WEIGHT
NO. OF CORE	mm2	Insulation	Outer Sheath	Inner	Outer	Over insulation	Overall	kg/km
1	50	3.95	1.32	0.50	0.80	19.50	29	1400
1	70	3.95	1.40	0.50	0.80	21.10	31	1700
1	95	3.95	1.48	0.50	0.80	22.80	34	2100
1	120	3.95	1.48	0.50	0.80	24.10	35	2350
1	150	3.95	1.56	0.50	0.80	26.00	37	2700
1	185	3.95	1.56	0.50	0.80	27.30	39	3200
1	240	3.95	1.64	0.50	0.80	30.33	42	3750
1	300	3.95	1.72	0.50	0.80	32.10	45	4600
1	400	3.95	1.80	0.50	0.80	35.00	48	5500
1	500	3.95	1.88	0.50	0.80	38.00	51	6750
1	630	3.95	1.96	0.50	0.80	42.10	56	8200
1	50	3.95	2.12	0.50	0.80	19.50	57	5500
3	70	3.95	2.20	0.50	0.80	21.10	61	6500
3	95	3.95	2.28	0.50	0.80	22.80	65	7600
3	120	3.95	2.36	0.50	0.80	24.10	68	8600
3	150	3.95	2.52	0.50	0.80	26.00	74	10500
3	185	3.95	2.60	0.50	0.80	27.30	77	11900
3	240	3.95	2.76	0.50	0.80	30.00	83	14200
3	300	3.95	2.84	0.50	0.80	32.10	88	16600
3	400	3.95	3.08	0.50	0.80	35.00	95	19700
3	500	3.95	3.24	0.50	0.80	38.00	103	23600

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
