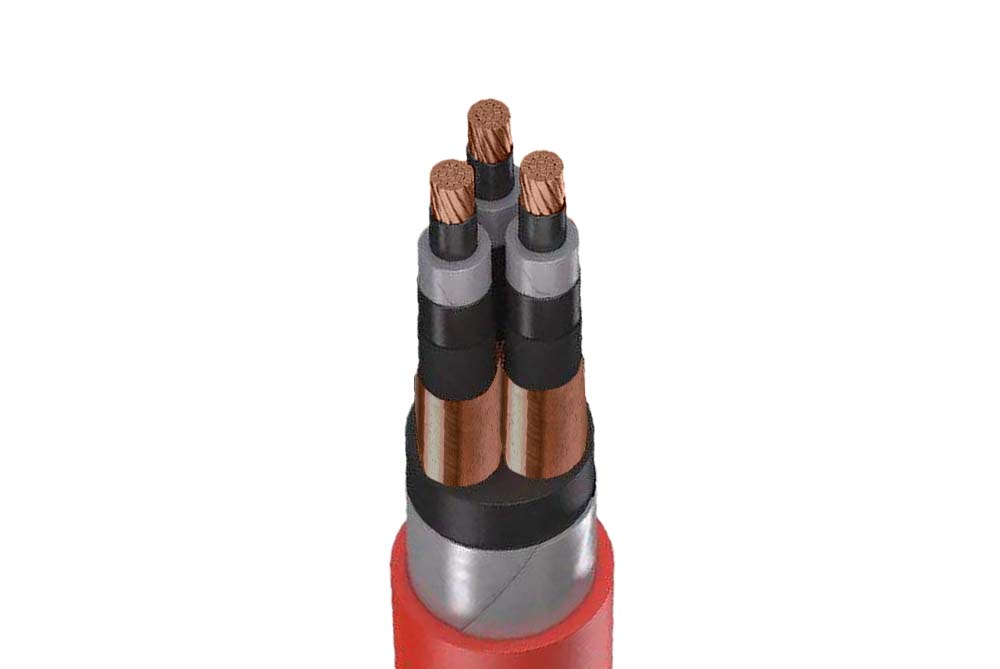

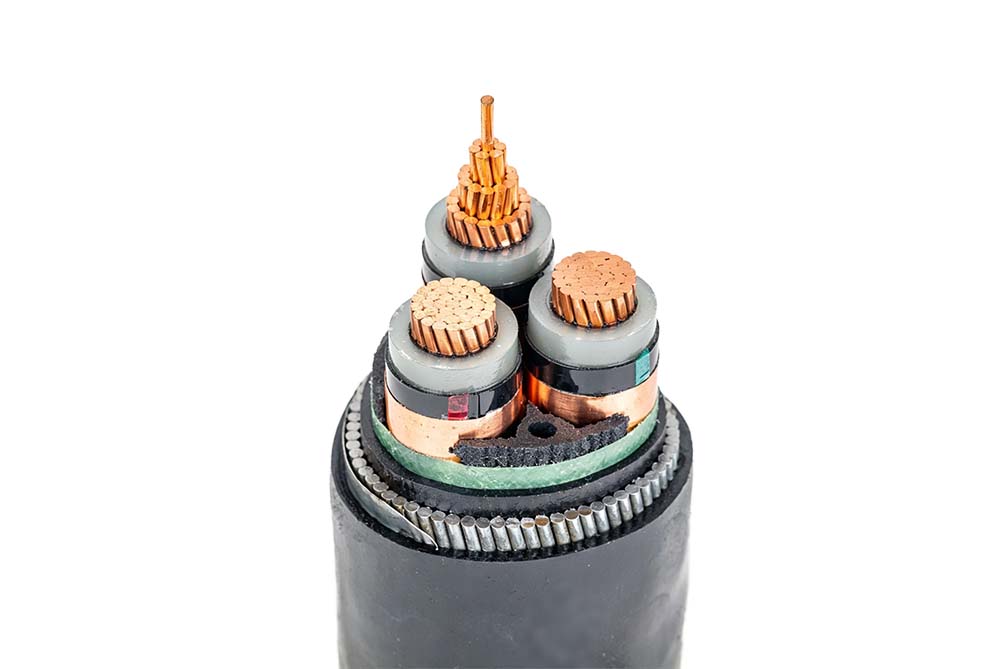

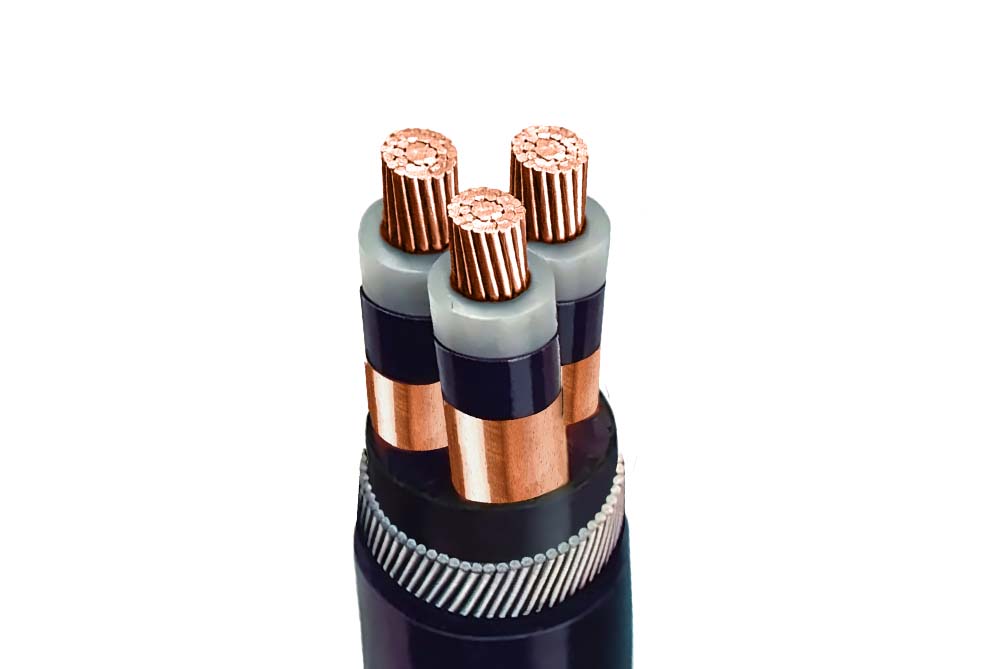

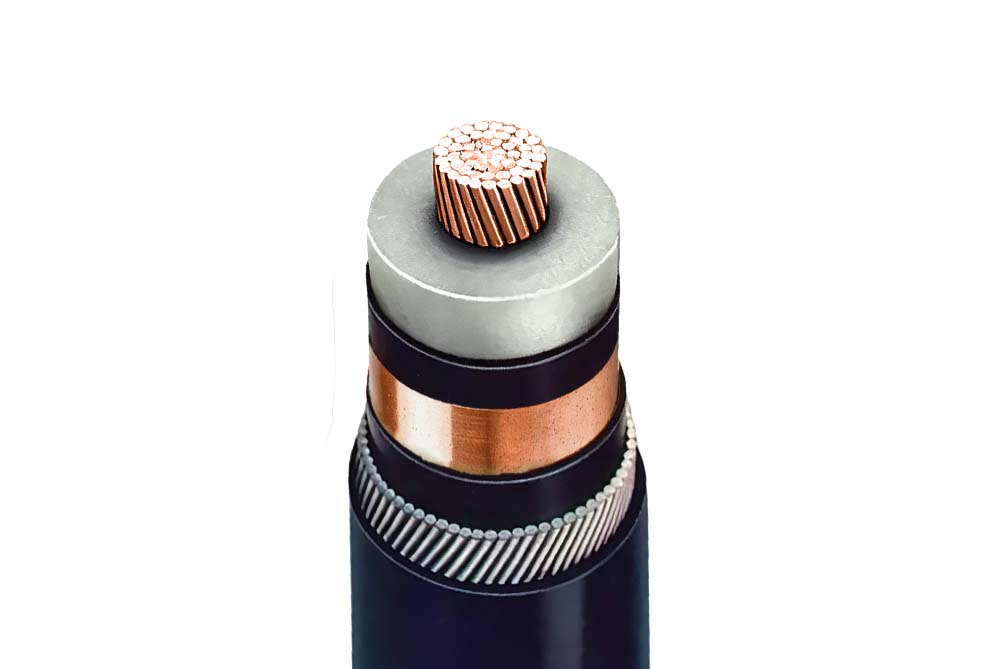

BS 6622 XLPE/PVC Medium Voltage 19/33 (36)kV Cable
Voltage:19/33 (36)kV
Structure:ConductorClass 2 stranded copper conductor
InsulationXLPE (Cross-Linked Polyethylene)
ArmourSingle core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured
JacketPVC (Polyvinyl Chloride)
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Power cables for power networks, underground and in cable ducting. Suitable for direct burial.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

19/33 (36)kV

Temperature Rating

Fixed: 0°C to +90°C

Initial temperature at S.C.C for metallic screen

80°C

Maximum conductor temperature during S.C

250°C

Minimum Bending Radius

Fixed: 15 x overall diameter

STANDARDS

BS 6622, EN 60228, IEC 60502-2

Flame Retardant according to IEC/EN 60332-1-2

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen

Individual or collective overall copper tape screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

PVC (Polyvinyl Chloride)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

 Red Black


NO.OF
CORE
NOMINAL CROSS
SECTIONAL AREA
NOMINAL
INSULATION THICKNESS
NOMINAL OUT SHEATH THICKNESSNOMINAL OVERALL DIAMETER
NOMINAL
WEIGHT

mm2mmmmmmkg/km
17082.238.802077
19582.340.302393
112082.341.702692
115082.444.703193
118582.546.403623
124082.649.004309
130082.651.604999
140082.754.405956
150082.858.007107
16308363.308783
180083.167.610766
37083.577.69625
39583.78110827
312083.884.412043
315083.988.113379
31858491.514800
324084.297.117324
330084.3102.719777
340084.6109.123228
