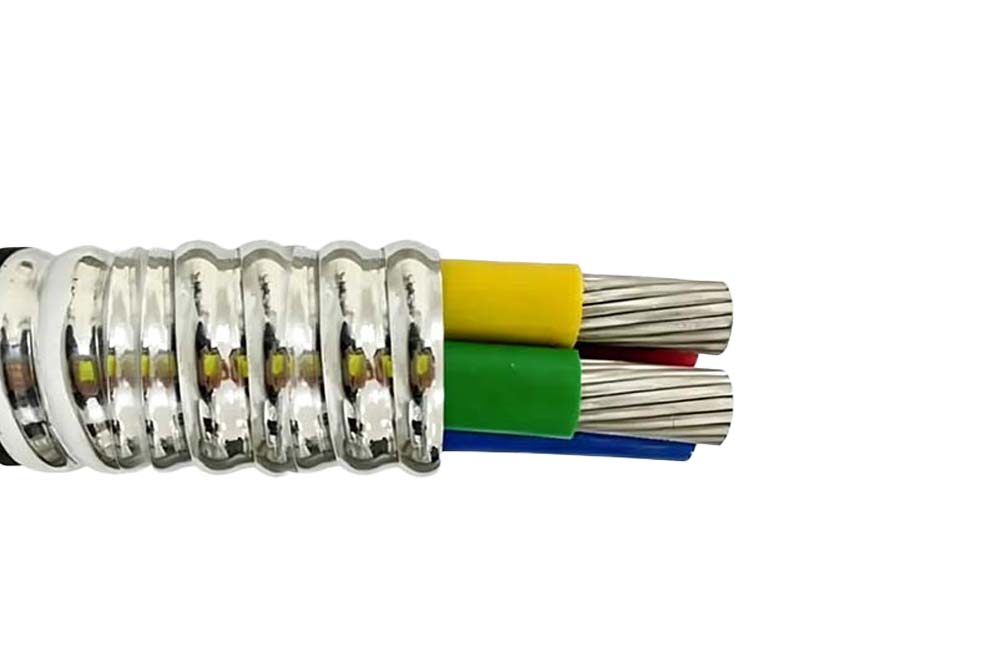

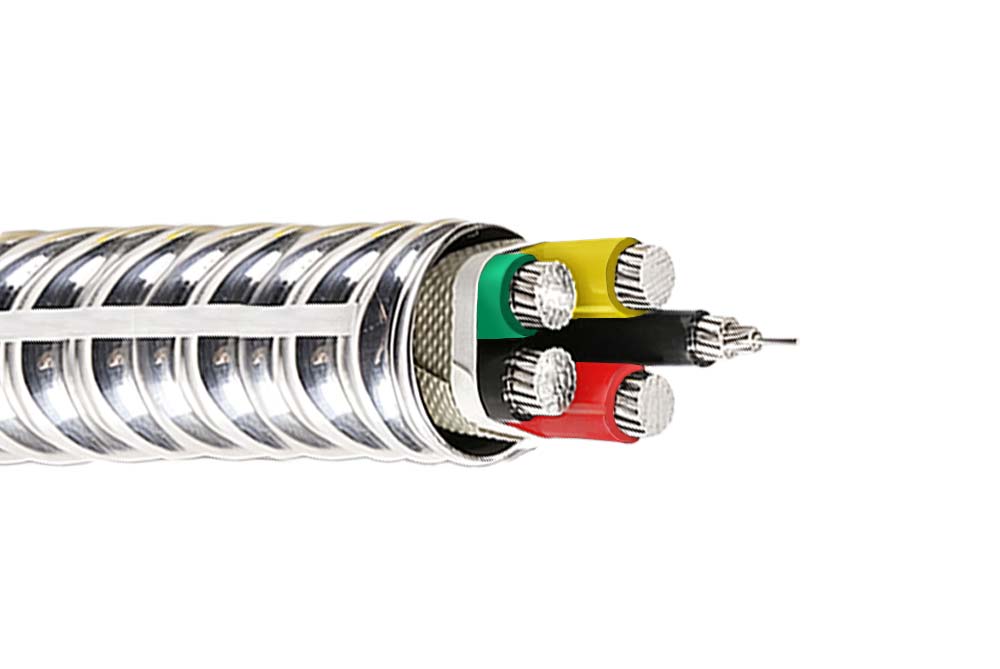

Al Alloy XLPE Al Interlocked Armour Power Cable
Voltage:	0.6/1kV
Structure:	Conductor	Aluminum Alloy Conductor
	Insulation	XLPE (Cross-linked Polyethylene)
	Armored	Aluminum Alloy Interlocked Armour

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

This product is suitable for transmitting electric energy in power lines with AC 50Hz and rated voltage 0.6/1kV (system maximum voltage 1.2kV). Fixed in indoors, cable trenches, pipelines, directly buried and fixed places that can withstand mechanical external forces in metallurgy, electric power, construction and other industries.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Maximum working temperature: 90°C

Maximum temperature in short circuit: 250°C

STANDARDS

IEC 60228, IEC 60811, IEC 60502-1

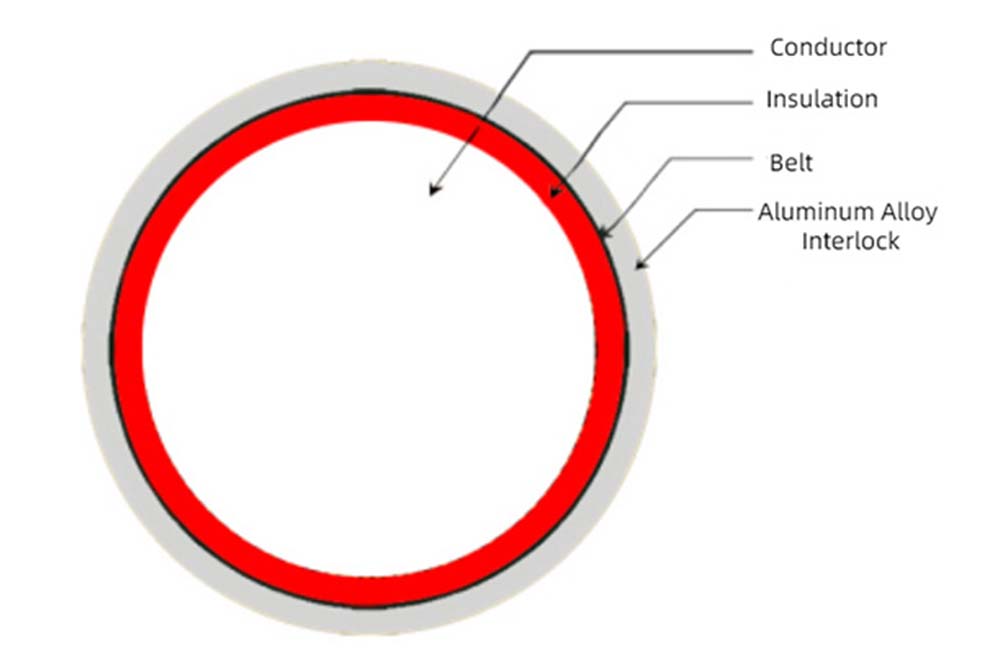

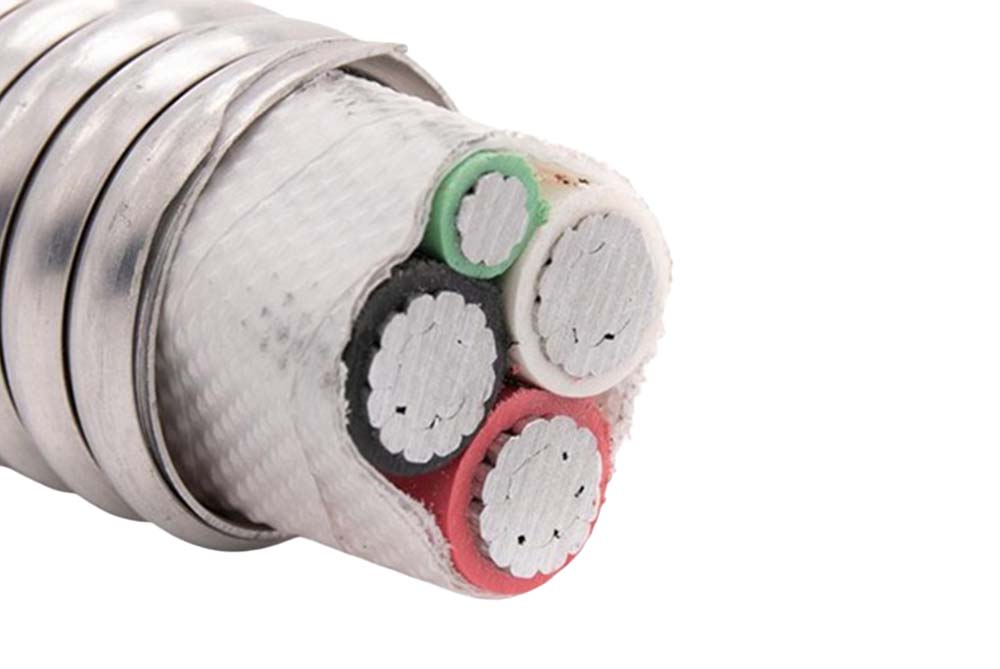

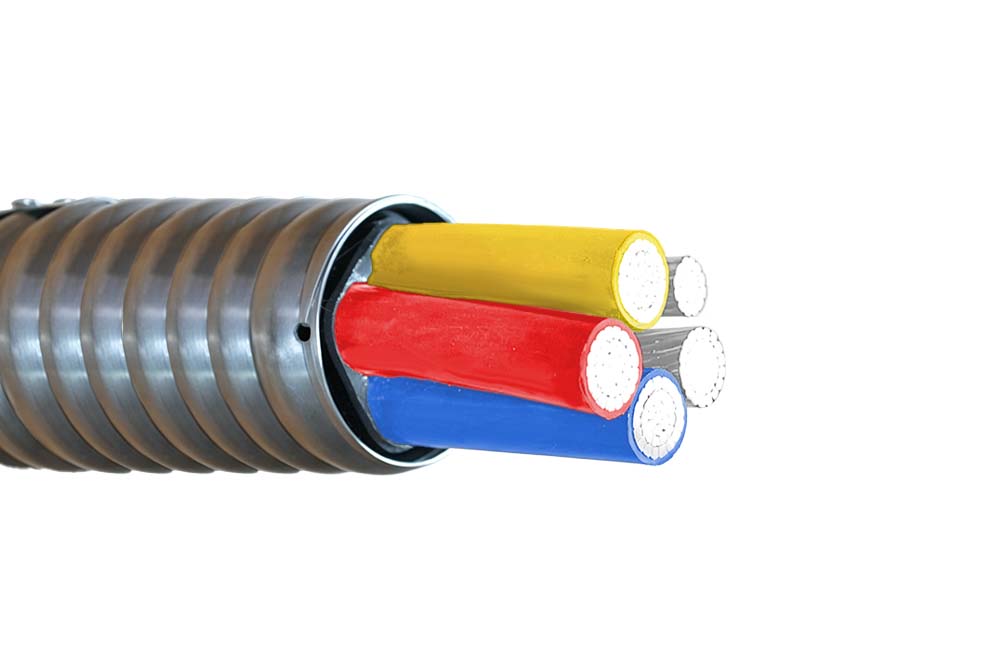

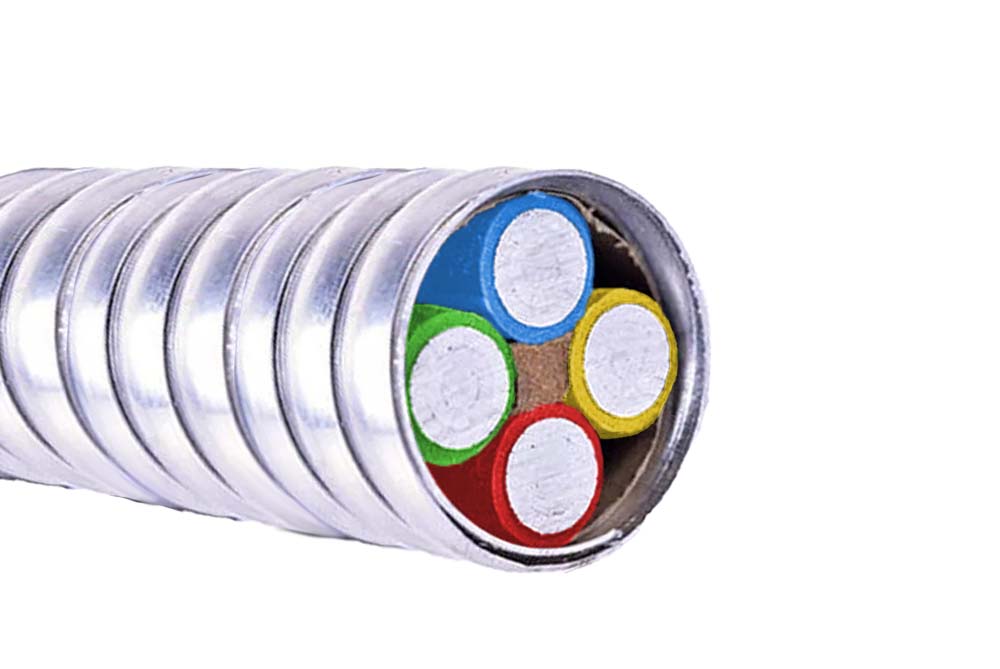

CONSTRUCTION

Conductor

Aluminum Alloy Conductor

Insulation

XLPE (Cross-linked Polyethylene)

Armored

Aluminum Alloy Interlocked Armour

Core Identification

2core: Red Blue

3core: Yellow Green Red

4core: Yellow Green Red Blue

5core: Yellow Green Red Blue Black

Specification	Conductor Structure	Outer Diameter Of Conductor	Insulation Thickness	Packing Strap	Inner Sheath Thickness	Armour Thickness	Reference Overall Diameter	Reference Weight
Specification	Conductor Structure	mm	mm	mm	mm	mm	mm	kg/km
1×10	7/1.35	4	0.7	0.08	1	9.5×0.5	11.2	99.8
1×16	7/1.70	5	0.7	0.08	1	9.5×0.5	12.2	128.3
1×25	7/2.18	6	0.9	0.08	1	9.5×0.5	13.6	177.6
1×35	7/2.58	6.9	0.9	0.08	1	9.5×0.5	14.5	213.3
1×50	7/3.00	8.2	1	0.08	1	9.5×0.5	16	269.1
1×70	14/2.58	10	1.1	0.08	1.3	9.5×0.5	18	360.8
1×95	19/2.58	11.5	1.1	0.08	1.3	9.5×0.5	19.5	453.5
1×120	24/2.58	13	1.2	0.08	1.3	9.5×0.5	21.2	550
1×150	30/2.58	14.5	1.4	0.08	1.3	9.5×0.5	23.1	666.6
1×185	37/2.58	16	1.6	0.08	1.3	12.7×0.5	26.6	800.6
1×240	48/2.58	18.4	1.7	0.08	1.3	12.7×0.6	29.2	1043.7
1×300	60/2.58	20.4	1.8	0.08	1.3	12.7×0.6	31.4	1254.1
1×400	61/2.95	23.5	2	0.08	1.3	12.7×0.6	34.9	1603.3
1×500	60/3.36	26.6	2.2	0.08	1.3	12.7×0.6	38.4	1987.8
1×630	60/3.75	30.3	2.4	0.08	1.3	19.05×0.6	44.1	2429.1
2×10	7/1.35	4	0.7	0.08	1	9.5×0.5	16.6	193.4
2×16	7/1.70	5	0.7	0.08	1.3	9.5×0.5	18.6	250.7
2×25	7/2.18	6	0.9	0.08	1.3	9.5×0.5	21.4	349.6
2×35	7/2.58	6.9	0.9	0.08	1.3	9.5×0.5	23.2	421.4
2×50	7/3.00	8.2	1	0.08	1.3	12.7×0.6	27.8	576.2
2×70	14/2.58	10	1.1	0.08	1.3	12.7×0.6	31.8	768.3
2×95	19/2.58	11.5	1.1	0.08	1.3	12.7×0.6	34.8	960.3
2×120	24/2.58	13	1.2	0.08	1.3	12.7×0.6	38.2	1160.8
2×150	30/2.58	14.5	1.4	0.08	1.3	19.05×0.6	43.6	1402.4
2×185	37/2.58	16	1.6	0.08	1.3	19.05×0.6	47.4	1679
2×240	48/2.58	18.4	1.7	0.08	1.5	19.05×0.7	52.6	2175.1
2×300	60/2.58	20.4	1.8	0.08	1.5	19.05×0.7	57	2606.2
3×10	7/1.35	4	0.7	0.08	1.3	9.5×0.5	17.5	240.3
3×16	7/1.70	5	0.7	0.08	1.3	9.5×0.5	19.6	317
3×25	7/2.18	6	0.9	0.08	1.3	9.5×0.5	22.6	453
3×35	7/2.58	6.9	0.9	0.08	1.3	12.7×0.5	26.2	553.4
3×50	7/3.00	8.2	1	0.08	1.3	12.7×0.6	29.4	753.6
3×70	14/2.58	10	1.1	0.08	1.3	12.7×0.6	33.8	1022.1
3×95	19/2.58	11.5	1.1	0.08	1.3	12.7×0.6	37	1294
3×120	24/2.58	13	1.2	0.08	1.3	12.7×0.6	40.7	1577.5
3×150	30/2.58	14.5	1.4	0.08	1.3	19.05×0.6	46.4	1920.1
3×185	37/2.58	16	1.6	0.08	1.3	19.05×0.7	50.5	2401.6
3×240	48/2.58	18.4	1.7	0.08	1.5	19.05×0.7	56.1	2994.1
3×300	60/2.58	20.4	1.8	0.08	1.5	19.05×0.7	60.8	3613.4
4×10	7/1.35	4	0.7	0.08	1.3	9.5×0.5	18.9	292.3
4×16	7/1.70	5	0.7	0.08	1.3	9.5×0.5	21.3	390.5
4×25	7/2.18	6	0.9	0.08	1.3	12.7×0.5	26.3	565.6
4×35	7/2.58	6.9	0.9	0.08	1.3	12.7×0.6	28.5	739.5
4×50	7/3.00	8.2	1	0.08	1.3	12.7×0.6	32.1	944.7
4×70	14/2.58	10	1.1	0.08	1.3	12.7×0.6	36.9	1289.4
4×95	19/2.58	11.5	1.1	0.08	1.3	12.7×0.6	40.6	1645
4×120	24/2.58	13	1.2	0.08	1.3	19.05×0.6	46.3	2012.7
4×150	30/2.58	14.5	1.4	0.08	1.5	19.05×0.7	50.9	2545.9
4×185	37/2.58	16	1.6	0.08	1.5	19.05×0.7	55.5	3071.4
4×240	48/2.58	18.4	1.7	0.08	1.5	19.05×0.7	61.8	3844.7
4×300	60/2.58	20.4	1.8	0.08	1.5	19.05×0.7	67.1	4656.5
5×10	7/1.35	4	0.7	0.08	1.3	9.5×0.5	20.4	345.4
5×16	7/1.70	5	0.7	0.08	1.3	9.5×0.5	23.1	465
5×25	7/2.18	6	0.9	0.08	1.3	12.7×0.6	28.5	724.1
5×35	7/2.58	6.9	0.9	0.08	1.3	12.7×0.6	30.9	886.6
5×50	7/3.00	8.2	1	0.08	1.3	12.7×0.6	34.9	1136.9
5×70	14/2.58	10	1.1	0.08	1.3	12.7×0.6	40.3	1560.5
5×95	19/2.58	11.5	1.1	0.08	1.3	19.05×0.6	46	1998.5
5×120	24/2.58	13	1.2	0.08	1.3	19.05×0.7	50.6	2538.2
5×150	30/2.58	14.5	1.4	0.08	1.5	19.05×0.7	55.7	3098
5×185	37/2.58	16	1.6	0.08	1.5	19.05×0.7	60.8	3745.5
5×240	48/2.58	18.4	1.7	0.08	1.5	19.05×0.7	67.9	4701
5×300	60/2.58	20.4	1.8	0.08	1.9	25×0.7	75.4	5705.4
3×16+1×10	7/1.70	5	0.7	0.08	1.3	9.5×0.5	20.7	366
3×16+1×10	7/1.35	4	0.7	0.08	1.3	9.5×0.5	20.7	366
3×25+1×16	7/2.18	6	0.9	0.08	1.3	12.7×0.5	25.4	521.3
3×25+1×16	7/1.70	5	0.7	0.08	1.3	12.7×0.5	25.4	521.3
3×35+1×16	7/2.58	6.9	0.9	0.08	1.3	12.7×0.5	27.1	618.6
3×35+1×16	7/1.70	5	0.7	0.08	1.3	12.7×0.5	27.1	618.6
3×50+1×25	7/3.00	8.2	1	0.08	1.3	12.7×0.6	30.6	859.2
3×50+1×25	7/2.18	6	0.9	0.08	1.3	12.7×0.6	30.6	859.2
3×70+1×35	14/2.58	10	1.1	0.08	1.3	12.7×0.6	34.8	1151.7
3×70+1×35	7/2.58	6.9	0.9	0.08	1.3	12.7×0.6	34.8	1151.7
3×95+1×50	19/2.58	11.5	1.1	0.08	1.3	12.7×0.6	38.4	1469
3×95+1×50	7/3.00	8.2	1	0.08	1.3	12.7×0.6	38.4	1469
3×120+1×70	24/2.58	13	1.2	0.08	1.3	19.05×0.6	44.3	1831.3
3×120+1×70	14/2.58	10	1.1	0.08	1.3	19.05×0.6	44.3	1831.3
3×150+1×70	30/2.58	14.5	1.4	0.08	1.3	19.05×0.6	47.8	2166.5
3×150+1×70	14/2.58	10	1.1	0.08	1.3	19.05×0.6	47.8	2166.5
3×185+1×95	37/2.58	16	1.6	0.08	1.5	19.05×0.7	52.1	2731.1
3×185+1×95	19/2.58	11.5	1.1	0.08	1.5	19.05×0.7	52.1	2731.1
3×240+1×120	48/2.58	18.4	1.7	0.08	1.5	19.05×0.7	57.9	3405.8
3×240+1×120	24/2.58	13	1.2	0.08	1.5	19.05×0.7	57.9	3405.8
3×300+1×150	60/2.58	20.4	1.8	0.08	1.5	19.05×0.7	63	4128.2
3×300+1×150	30/2.58	14.5	1.4	0.08	1.5	19.05×0.7	63	4128.2
3×16+2×10	7/1.70	5	0.7	0.08	1.3	9.5×0.5	22	417
3×16+2×10	7/1.35	4	0.7	0.08	1.3	9.5×0.5	22	417
3×25+2×16	7/2.18	6	0.9	0.08	1.3	12.7×0.5	26.9	592.7
3×25+2×16	7/1.70	5	0.7	0.08	1.3	12.7×0.5	26.9	592.7
3×35+2×16	7/2.58	6.9	0.9	0.08	1.3	12.7×0.6	28.4	732.6
3×35+2×16	7/1.70	5	0.7	0.08	1.3	12.7×0.6	28.4	732.6
3×50+2×25	7/3.00	8.2	1	0.08	1.3	12.7×0.6	32.3	970.9
3×50+2×25	7/2.18	6	0.9	0.08	1.3	12.7×0.6	32.3	970.9
3×70+2×35	14/2.58	10	1.1	0.08	1.3	12.7×0.6	36.6	1291.2
3×70+2×35	7/2.58	6.9	0.9	0.08	1.3	12.7×0.6	36.6	1291.2
3×95+2×50	19/2.58	11.5	1.1	0.08	1.3	12.7×0.6	40.6	1653.9
3×95+2×50	7/3.00	8.2	1	0.08	1.3	12.7×0.6	40.6	1653.9
3×120+2×70	24/2.58	13	1.2	0.08	1.3	19.05×0.6	47.1	2094.9
3×120+2×70	14/2.58	10	1.1	0.08	1.3	19.05×0.6	47.1	2094.9
3×150+2×70	30/2.58	14.5	1.4	0.08	1.3	19.05×0.7	50.2	2510.9
3×150+2×70	14/2.58	10	1.1	0.08	1.3	19.05×0.7	50.2	2510.9
3×185+2×95	37/2.58	16	1.6	0.08	1.5	19.05×0.7	54.9	3077.9
3×185+2×95	19/2.58	11.5	1.1	0.08	1.5	19.05×0.7	54.9	3077.9
3×240+2×120	48/2.58	18.4	1.7	0.08	1.5	19.05×0.7	60.9	3834.7
3×240+2×120	24/2.58	13	1.2	0.08	1.5	19.05×0.7	60.9	3834.7
3×300+2×150	60/2.58	20.4	1.8	0.08	1.5	19.05×0.7	66.6	4663
3×300+2×150	30/2.58	14.5	1.4	0.08	1.5	19.05×0.7	66.6	4663
4×16+1×10	7/1.70	5	0.7	0.08	1.3	9.5×0.5	22.5	440.5
4×16+1×10	7/1.35	4	0.7	0.08	1.3	9.5×0.5	22.5	440.5
4×25+1×16	7/2.18	6	0.9	0.08	1.3	12.7×0.6	27.7	679.2
4×25+1×16	7/1.70	5	0.7	0.08	1.3	12.7×0.6	27.7	679.2
4×35+1×16	7/2.58	6.9	0.9	0.08	1.3	12.7×0.6	29.6	809
4×35+1×16	7/1.70	5	0.7	0.08	1.3	12.7×0.6	29.6	809
4×50+1×25	7/3.00	8.2	1	0.08	1.3	12.7×0.6	33.6	1053.9
4×50+1×25	7/2.18	6	0.9	0.08	1.3	12.7×0.6	33.6	1053.9
4×70+1×35	14/2.58	10	1.1	0.08	1.3	12.7×0.6	38.5	1426.5
4×70+1×35	7/2.58	6.9	0.9	0.08	1.3	12.7×0.6	38.5	1426.5
4×95+1×50	19/2.58	11.5	1.1	0.08	1.3	19.05×0.6	44.1	1826.2
4×95+1×50	7/3.00	8.2	1	0.08	1.3	19.05×0.6	44.1	1826.2
4×120+1×70	24/2.58	13	1.2	0.08	1.3	19.05×0.7	48.9	2357
4×120+1×70	14/2.58	10	1.1	0.08	1.3	19.05×0.7	48.9	2357
4×150+1×70	30/2.58	14.5	1.4	0.08	1.5	19.05×0.7	53	2805.2
4×150+1×70	14/2.58	10	1.1	0.08	1.5	19.05×0.7	53	2805.2
4×185+1×95	37/2.58	16	1.6	0.08	1.5	19.05×0.7	57.9	3412.4
4×185+1×95	19/2.58	11.5	1.1	0.08	1.5	19.05×0.7	57.9	3412.4
4×240+1×120	48/2.58	18.4	1.7	0.08	1.5	19.05×0.7	64.4	4267.9
4×240+1×120	24/2.58	13	1.2	0.08	1.5	19.05×0.7	64.4	4267.9
4×300+1×150	60/2.58	20.4	1.8	0.08	1.5	19.05×0.7	70.2	5184.2
4×300+1×150	30/2.58	14.5	1.4	0.08	1.5	19.05×0.7	70.2	5184.2
