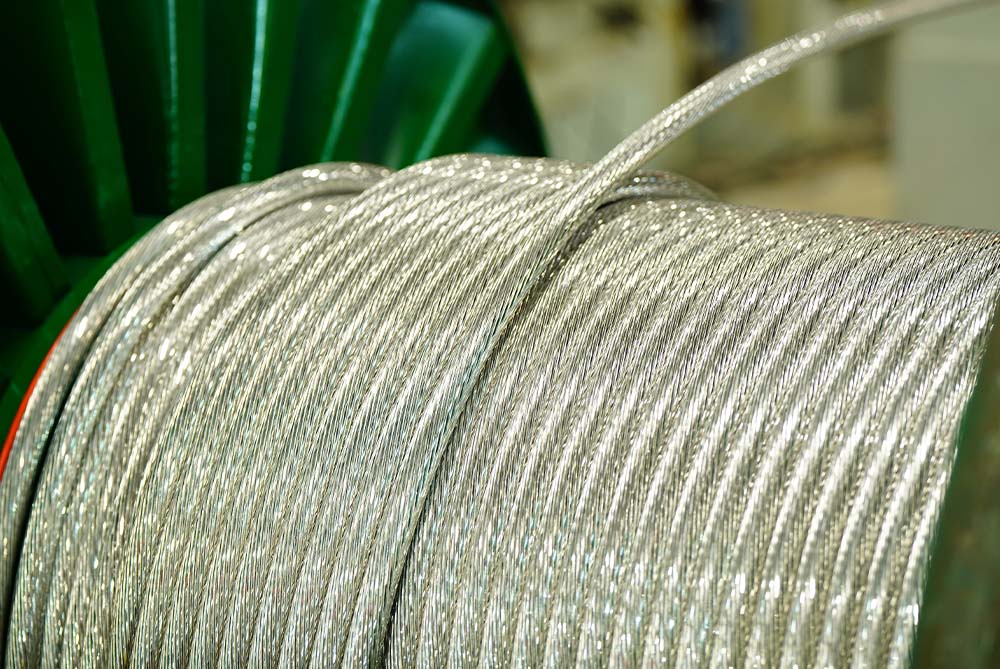

ACSR-Aluminium Conductor Steel Reinforced
Voltage:	Height Voltage
Structure:	Conductor	Aluminum Wires, concentrically stranded over a central wire/core of Galvanized steel
	Feature	Bare conductor

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

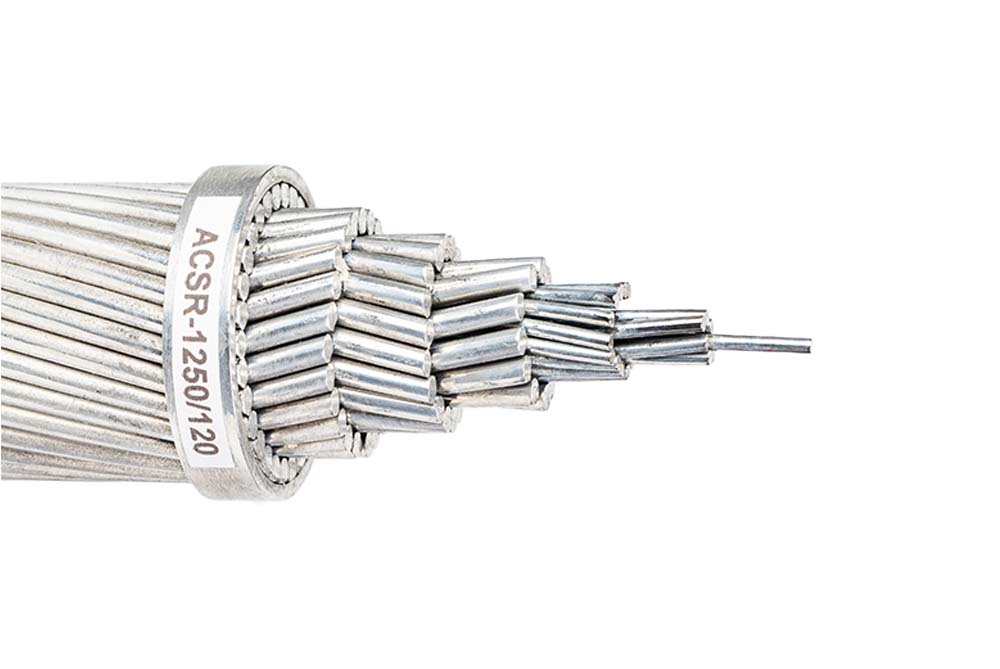

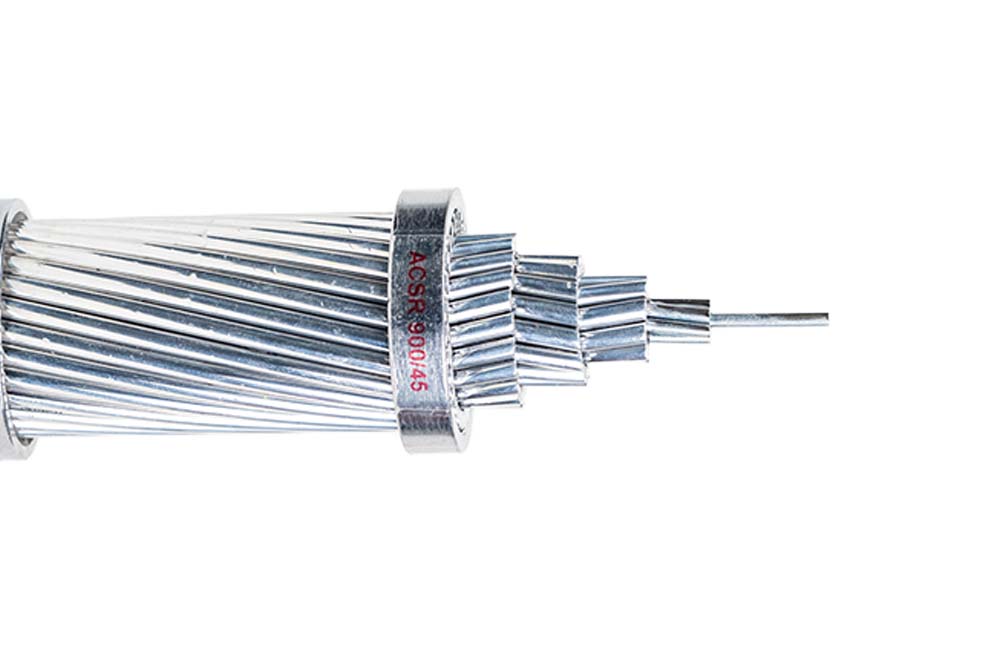

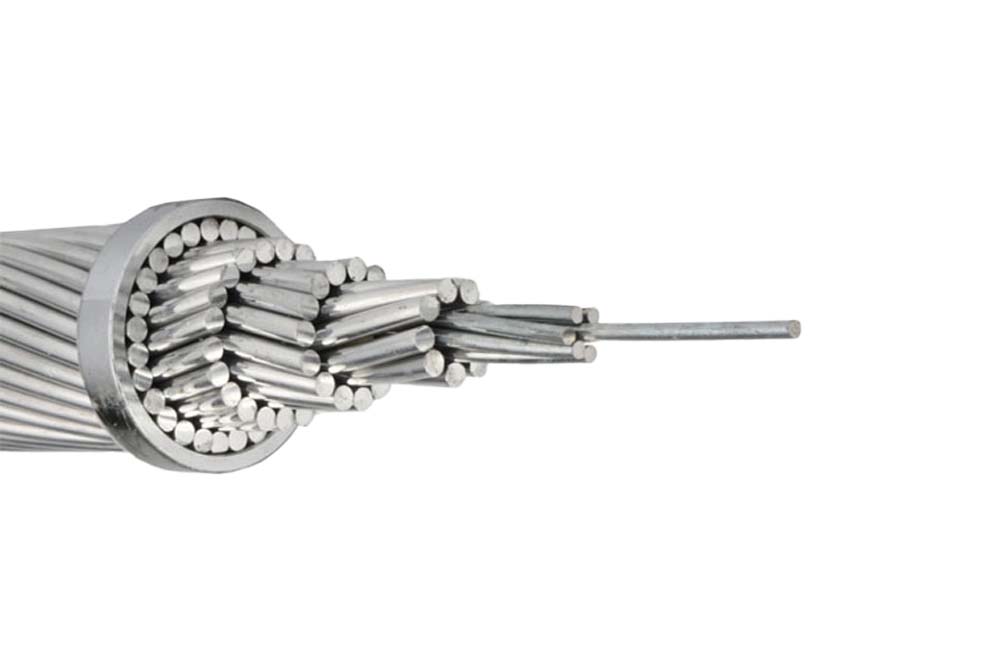

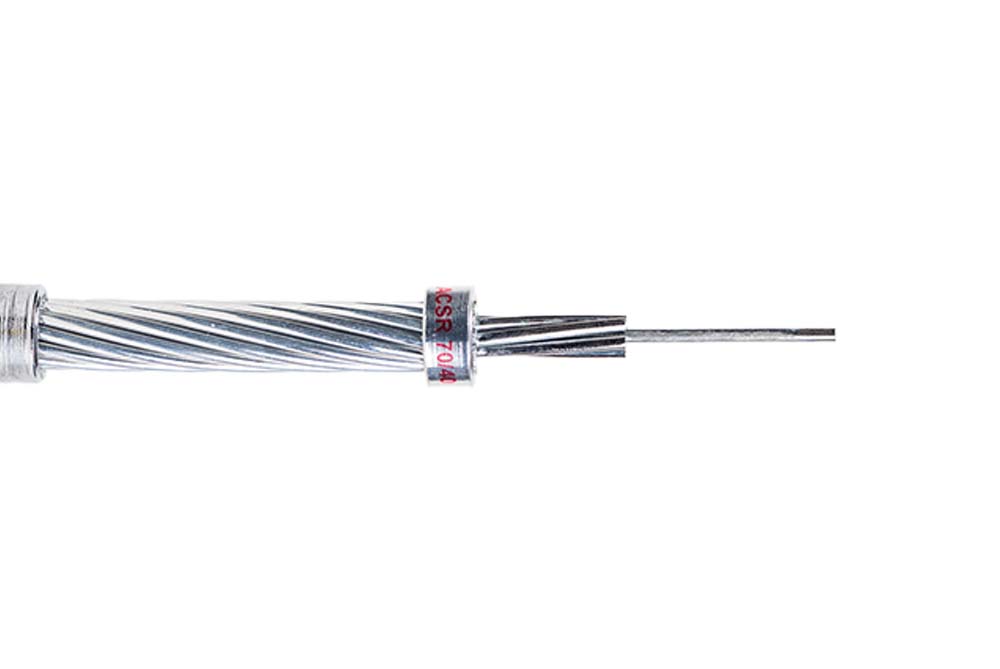

ACSR is a concentrically stranded conductor composed of one or more layers of Aluminium alloy wire stranded over a high-strength zinc coated (galvanized) steel core.

STANDARDS

IEC Standards IEC61089:1997

American Standards ASTM B231/B231M-99

CONSTRUCTION

Conductor

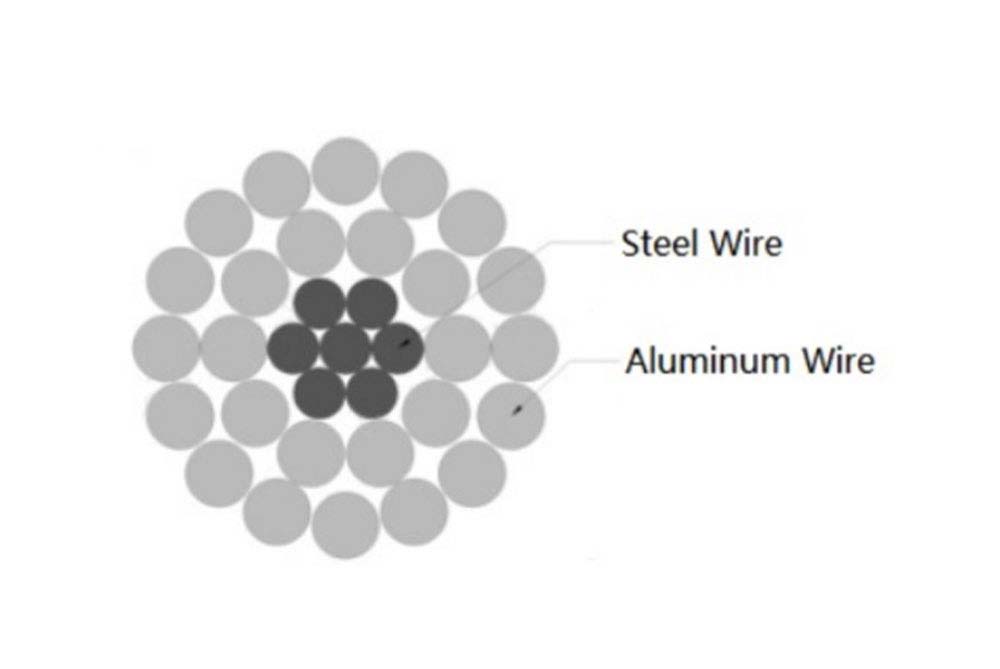

Aluminum Wires, concentrically stranded over a central wire/core of Galvanized steel

CODE	AWG-MCM	STRANDING AL/Steel	DIAMETER ins				WEIGHT PER 1000FT lbs			CONTENT %		RATED STRENGHT lbs	ELECTRICAL RESISTANCE ohms/1000ft		ALLOWABLE AMPACITY Amps
			Individual wires		Steel	Total	Al	Steel	Total	Al	Steel		20ºC DC	75ºC AC
			Al	Steel	Steel	Total	Al	Steel	Total	Al	Steel		20ºC DC	75ºC AC
TURKEY	6	6/1	0.0661	0.0661	0.0661	0.198	24.5	11.6	36	67.9	32.1	1.19	0.641	0.806	105
SWAN	4	6/1	0.0834	0.0834	0.0834	0.25	39	18.4	57	67.9	32.1	1.86	0.403	0.515	140
SWANATE	4	7/1	0.0772	0.1029	0.1029	0.257	39	28	67	58.13	41.87	2.36	0.399	0.519	140
SPARROW	2	6/1	0.1052	0.1052	0.1052	0.316	62	29.3	91	67.9	32.1	2.85	0.254	0.332	184
SPARATE	2	7/1	0.0974	0.1299	0.1299	0.325	62	44.7	107	58.13	41.87	3.46	0.251	0.332	184
ROBIN	1	6/1	0.1181	0.1182	0.1182	0.355	78.2	37	115	67.9	32.1	3.55	0.201	0.268	212
RAVEN	1/0	6/1	0.1327	0.1327	0.1327	0.398	98.6	46.6	145	67.9	32.1	4.38	0.159	0.217	242
QUAIL	2/0	6/1	0.1489	0.1489	0.1489	0.447	124.3	58.8	183	67.9	32.1	5.31	0.126	0.176	276
PIGEON	3/0	6/1	0.1672	0.1672	0.1672	0.502	156.8	74.1	230	67.9	32.1	6.62	0.1	0.144	315
PENGUIN	4/0	6/1	0.1878	0.1878	0.1878	0.563	197.7	93.4	291	67.9	32.1	8.35	0.0795	0.119	357
WAXWING	266.8	18/1	0.1217	0.1217	0.1217	0.609	250.4	39.3	289	86.45	13.55	6.88	0.0643	0.0787	449
PARTRIDGE	266.8	26/7	0.1013	0.0788	0.2364	0.642	251.7	115.6	366	68.53	31.47	11.3	0.0437	0.0779	475
OSTRICH	300	26/7	0.1074	0.0835	0.2505	0.68	283	129.9	412	68.53	31.47	12.7	0.0567	0.0693	492
MERLIN	336.4	18/1	0.1367	0.0961	0.1367	0.684	315.8	49.5	365	86.45	13.55	8.68	0.051	0.0625	519
LINNET	336.4	26/7	0.1137	0.0884	0.2652	0.72	317.3	145.7	462	68.53	31.47	14.1	0.0505	0.0618	529
ORIOLE	336.4	30/7	0.1059	0.1059	0.3177	0.741	318.1	209	526	60.53	39.65	17.3	0.0502	0.0613	535
CHICKADEE	397.5	18/7	0.1486	0.1486	0.1486	0.743	372.5	58.5	431	86.45	13.55	9.94	0.0432	0.0529	576
BRANT	397.5	24/1	0.1287	0.0858	0.2574	0.772	374.9	137.1	511	73.23	26.77	14.6	0.043	0.0526	584
IBIS	397.5	26/7	0.1236	0.0961	0.2883	0.783	375	172.2	546	68.53	31.47	16.3	0.0428	0.0523	587
LARK	397.5	30/7	0.1151	0.1151	0.3453	0.806	375.9	246.9	622	60.35	39.65	20.3	0.0425	0.0519	594
PELICAN	477	18/7	0.1628	0.1628	0.1628	0.814	447.8	70.2	517	86.45	13.55	11.8	0.036	0.0442	646
FLICKER	477	24/7	0.141	0.094	0.282	0.846	450	164.5	614	73.23	26.77	17.2	0.0358	0.0439	655
HAWK	477	26/7	0.1354	0.1053	0.3159	0.858	450	206.8	655	68.53	31.47	19.5	0.0356	0.0436	659
HEN	477	30/7	0.1261	0.1261	0.3783	0.883	451	296.3	746	60.35	39.65	23.8	0.0354	0.0433	666
OSPREY	556.5	18/1	0.1758	0.1758	0.1758	0.879	522	82	603	86.45	13.55	13.7	0.0308	0.0379	711
PARAKEET	556.5	24/7	0.1523	0.1015	0.3045	0.914	525	192	716	73.23	26.77	19.8	0.0307	0.0376	721
DOVE	556.5	26/7	0.1463	0.1138	0.3414	0.927	525	241	765	68.53	31.47	22.6	0.0306	0.0375	726
EAGLE	556.5	30/7	0.1362	0.1362	0.4086	0.953	526	346	971	60.35	39.65	27.8	0.0303	0.0372	734
PEACOCK	605	24/7	0.1588	0.1059	0.3177	0.953	571	208	779	73.23	26.77	21.6	0.0282	0.0346	760
SQUAB	605	26/7	0.1525	0.1186	0.3558	0.966	571	262	931	68.53	31.47	24.3	0.0281	0.0345	765
WOOD DUCK	605.5	30/7	0.142	0.142	0.426	0.994	572	376	946	60.35	29.55	28.9	0.0279	0.0342	774
TEAL	605.5	30/19	0.142	0.0852	0.426	0.994	572	367	939	60.89	39.11	30	0.0279	0.0342	773
KINGBOIRD	636	18/1	0.188	0.188	0.188	0.94	597	94	690	86.45	13.55	15.7	0.027	0.0332	773
SWIFT	636	36/1	0.1329	0.1329	0.1329	0.94	597	47	643	92.45	7.2	13.69	0.0271	0.0334	769
ROOK	636	24/7	0.1628	0.1085	0.3255	0.978	600	219	818	73.23	26.77	22	0.0268	0.033	784
GROSBEAK	605.5	26/7	0.1564	0.1216	0.426	0.99	600	275	874	68.53	31.47	25.2	0.0267	0.0328	789
SCOTER	605.5	30/7	0.1456	0.1456	0.4368	1.019	601	395	995	60.35	39.55	30.4	0.0256	0.0325	798
EGRET	605.5	30/19	0.1456	0.0874	0.437	1.019	601	387	987	60.89	39.11	31.5	0.0266	0.0326	798
FLAMINGO	666.6	24/7	0.1667	0.1111	0.3333	1	629	230	858	73.23	26.77	23.7	0.0256	0.0315	807
GANNET	666.6	26/7	0.1601	0.1245	0.3735	1.014	628	289	916	68.53	31.47	26.4	0.0255	0.0313	812
STILT	715.5	24/7	0.1727	0.1151	0.3453	1.036	675	247	921	73.23	26.77	25.5	0.0239	0.0294	844
STARLING	715.5	26/7	0.1659	0.1290	0.3870	1.051	675	310	984	68.53	31.47	28.4	0.0238	0.0292	849
REDWING	715.5	30/19	0.1544	0.0926	0.4630	1.081	676	435	1109	60.89	39.11	34.6	0.0236	0.029	859
COOT	795	36/1	0.1486	0.1486	0.1486	1.040	747	58	804	92.8	7.2	16.71	0.0217	0.0268	884
CUCKOO	795	24/7	0.1820	0.1213	0.3639	1.092	749	247	1023	73.23	26.77	27.9	0.0215	0.0265	901
DRAKE	795	26/7	0.1749	0.1360	0.4080	1.108	750	344	1093	68.53	31.47	31.5	0.0214	0.0263	907
TERN	795	45/7	0.1329	0.0886	0.2658	1.063	750	146	895	83.69	16.31	22.1	0.0216	0.0269	887
CONDOR	795	54/7	0.1213	0.1213	0.3639	1.092	750	274	1022	73.25	26.75	28.2	0.0215	0.0272	8889
MALLARD	795	30/19	0.1628	0.0977	0.4885	1.140	752	483	1234	60.89	39.11	38.4	0.0213	0.0261	918
RUDDY	900	45/7	0.1414	0.0943	0.2829	1.131	749	166	1013	83.69	16.31	24.4	0.0191	0.0265	958
CANARY	900	54/7	0.1291	0.1291	0.3873	1.162	849	310	1158	73.25	26.75	31.9	0.019	0.0241	961
RALL	954	45/7	0.1456	0.0971	0.2913	1.165	900	175	1074	83.69	16.31	25.9	0.018	0.0225	993
CARDINAL	954	54/7	0.1329	0.1329	0.3987	1.196	900	329	1227	73.25	26.75	33.8	0.0179	0.0228	996
ORTOLAN	1033.5	45/7	0.1515	0.1010	0.3030	1.212	975	190	1163	83.69	16.31	27.7	0.0167	0.0209	1043
CURLEW	1033.5	54/7	0.1383	0.4149	0.4149	1.246	975	356	1329	73.25	26.75	36.6	0.0165	0.0211	1047
BLUEJAY	1113	45/7	0.1573	0.1049	0.3147	1.259	1050	205	1254	83.69	16.31	29.8	0.0155	0.0194	1092
FINCH	1113	54/19	0.1436	0.0862	0.4310	1.293	1055	376	1430	73.75	26.75	39.1	0.0144	0.0197	1093
BUNTING	1192.5	45/7	0.1628	0.1085	0.3255	1.302	1125	219	1342	83.69	16.31	32	0.0144	0.0181	1139
GRACKLE	1192.5	54/19	0.1486	0.0892	0.4460	1.333	1130	403	1531	73.75	26.25	41.9	0.0144	0.0184	1140
BITTERN	1272	45/7	0.1681	0.1121	0.3363	1.345	1200	234	1432	83.69	16.31	34.1	0.0135	0.0171	1184
PHEASANT	1272	54/19	0.1535	0.0921	0.4605	1.382	1206	429	1634	73.75	26.25	34.6	0.0135	0.0173	1187
DIPPER	1351.5	45/7	0.1733	0.1155	0.3465	1.386	1275	247	1521	83.69	16.31	36.2	0.0127	0.0162	1229
MARTIN	1351.5	54/19	0.1582	0.0949	0.4745	1.424	1281	456	1735	73.75	26.25	46.3	0.0127	0.0163	1232
BOBOLINK	1431	45/7	0.1783	0.1189	0.3567	1.427	1350	263	1611	83.69	16.31	38.3	0.012	0.0153	1272
PLOVER	1431	54/19	0.1628	0.0977	0.4885	1.465	1357	483	1838	73.75	26.25	49.1	0.012	0.0155	1275
NUTHATCH	1510.5	45/7	0.1832	0.1221	0.3663	1.466	1425	277	1700	83.69	16.31	40	0.0114	0.0146	1313
PARROT	1510.5	54/19	0.1672	0.1003	0.5015	1.505	1432	510	1938	73.75	26.25	51.7	0.0114	0.0147	1318
LAPWING	1590	45/7	0.188	0.1253	0.3759	1.504	1500	292	1790	83.69	16.31	42.2	0.0108	0.0139	1354
FALCON	1590	54/19	0.1716	0.1052	0.515	1.545	1507	537	2042	73.75	26.25	54.5	0.0108	0.0140	1359
CHUKAR	1780	84/19	0.1456	0.0874	0.437	1.602	1687	387	2072	81.3	18.7	51	0.0097	0.0125	1453
BLUEBIRD	2156	84/19	0.1602	0.0961	0.4805	1.762	2044	468	2508	81.3	18.7	60.3	0.00801	0.0105	1623
KIWI	2167	72/7	0.1735	0.1157	0.3471	1.735	2054	249	2300	89.2	10.8	49.8	0.00801	0.0106	1607

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
