AC90 Armoured Copper Wire 4 Conductors
Voltage:	600V
Structure:	Conductor	Solid Soft Copper, ASTM B3
	Insulation	Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
	Bonding Conductor	Solid ASTM B3 Soft Bare Copper
	Armour	Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
	Sheath Colour	2Core: Black, White 2Core: Black, Red 3Core: Black, White, Red 4Core: Black, White, Red and Blue

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance. For use in ventilated, non-ventilated and ladder-type cable trays. For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.

Voltage Rating Uo/U

600V

Temperature Rating

-40°C to 90°C

STANDARDS

Industry compliances: CSA Standard C22.2 No. 51, No.38 and No.2256, RoHS

Flame test compliances: CSA ST1 and FT4

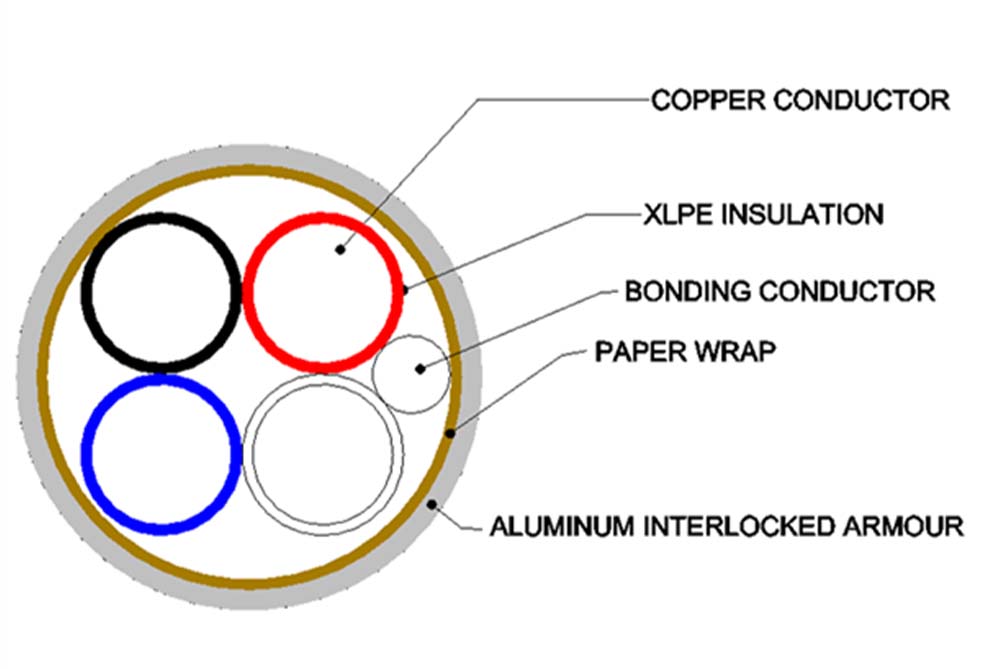

CONSTRUCTION

Conductor

Solid Soft Copper, ASTM B3

Insulation

Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free

Bonding Conductor

Solid ASTM B3 Soft Bare Copper

Armour

Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour

Sheath Colour

2Core: Black, White

2Core: Black, Red

3Core: Black, White, Red

4Core: Black, White, Red and Blue

AC90 600V – 2 Copper Conductors (Black/White)
NO. OF CONDUCTORS	CONDUCTOR SIZE	BARE BONDING CONDUCTOR SIZE	INSULATION THICKNESS	CABLE DIAMETER	CABLE WEIGHT	MAX. PULLING TENSION	MIN. BEND RADIUS	AMPACITY (A)
2	14 AWG	14 AWG	0.030 in	0.430 in	81 lbs/Mft	66 lbs	6.0 in	25
2	14 AWG	14 AWG	0.76 mm	10.9 mm	120 kg/km	30 kg	151 mm	25
2	12 AWG	14 AWG	0.030 in	0.454 in	99 lbs/Mft	104 lbs	6.4 in	30
2	12 AWG	14 AWG	0.76 mm	11.5 mm	148 kg/km	47 kg	164 mm	30
2	10 AWG	12 AWG	0.030 in	0.512 in	138 lbs/Mft	166 lbs	6.9 in	40
2	10 AWG	12 AWG	0.76 mm	13.0 mm	206 kg/km	75 kg	174 mm	40

AC90 600V – 2 Copper Conductors (Black/Red)
CONDUCTOR COUNT	CONDUCTOR SIZE	GROUND SIZE	INSULATION THICKNESS	CABLE DIAMETER	CABLE WEIGHT	MAX. PULLING TENSION	MIN. BEND RADIUS	AMPACITY (A)
2	14 AWG	14 AWG	0.030 in	0.430 in	80 lbs/Mft	66 lbs	6.02 in	20
2	14 AWG	14 AWG	0.76 mm	10.9 mm	120 kg/km	30 kg	153 mm	20
2	12 AWG	12 AWG	0.030 in	0.454 in	99 lbs/Mft	104 lbs	6.36 in	24
2	12 AWG	12 AWG	0.76 mm	11.6 mm	148 kg/km	47 kg	161 mm	24
2	10 AWG	12 AWG	0.030 in	0.512 in	138 lbs/Mft	166 lbs	7.17 in	32
2	10 AWG	12 AWG	0.76 mm	13.0 mm	206 kg/km	75 kg	182 mm	32

AC90 600V – 3 Copper Conductors
CONDUCTOR SIZE	GROUND SIZE	INSULATION THICKNESS	CABLE DIAMETER	CABLE WEIGHT	MAX PULLING TENSION	MIN. BEND RADIUS	AMPACITY (A)
14/1 AWG	14/1 AWG	0.030 in.	0.445 in.	105 lbs/Mft	99 lbs	6.2 in.	25
14/1 AWG	14/1 AWG	0.76 mm	11.3 mm	156 kg/km	45 kg	158 mm	25
12/1 AWG	14/1 AWG	0.030 in.	0.490 in.	130 lbs/Mft	157 lbs	6.9 in.	30
12/1 AWG	14/1 AWG	0.76 mm	12.4 mm	193 kg/km	71 kg	174 mm	30
10/1 AWG	12/1 AWG	0.030 in.	0.535 in.	182 lbs/Mft	249 lbs	7.5 in.	40
10/1 AWG	12/1 AWG	0.76 mm	13.6 mm	271 kg/km	113 kg	190 mm	40
8/7 AWG	10/7 AWG	0.045 in.	0.714 in.	309 lbs/Mft	418 lbs	10.0 in.	55
8/7 AWG	10/7 AWG	1.14 mm	18.1 mm	460 kg/km	190 kg	254 mm	55
6/7 AWG	8/7 AWG	0.045 in.	0.770 in.	417 lbs/Mft	702 lbs	10.8 in.	75
6/7 AWG	8/7 AWG	1.14 mm	19.6 mm	621 kg/km	318 kg	274 mm	75
4/7 AWG	8/7 AWG	0.045 in.	0.940 in.	601 lbs/Mft	1193 lbs	13.2 in.	95
4/7 AWG	8/7 AWG	1.14 mm	23.9 mm	894 kg/km	541 kg	334 mm	95
3/7 AWG	6/7 AWG	0.045 in.	0.990 in.	721 lbs/Mft	1622 lbs	13.9 in.	115
3/7 AWG	6/7 AWG	1.14 mm	25.1 mm	1073 kg/km	736 kg	352 mm	115
2/7 AWG	6/7 AWG	0.045 in.	1.040 in.	891 lbs/Mft	1922 lbs	14.6 in.	130
2/7 AWG	6/7 AWG	1.14 mm	26.4 mm	1326 kg/km	872 kg	370 mm	130

AC90 600V – 4 Copper Conductors
CONDUCTOR COUNT	CONDUCTOR SIZE	GROUND SIZE	INSULATION THICKNESS	ARMOUR O.D.	CABLE WEIGHT	MAX. PULLING TENSION	MIN. BEND RADIUS	AMPACITY (A)
4	14 AWG	14 AWG	0.030 in.	0.490 in.	130 lbs/Mft	131 lbs	6.9 in.	20
4	14 AWG	14 AWG	0.76 mm	12.4 mm	193 kg/km	60 kg	174 mm	20
4	12 AWG	14 AWG	0.030 in.	0.535 in.	166 lbs/Mft	209 lbs	7.5 in.	24
4	12 AWG	14 AWG	0.76 mm	13.6 mm	247 kg/km	95 kg	190 mm	24
4	10 AWG	12 AWG	0.030 in.	0.630 in.	232 lbs/Mft	332 lbs	8.8 in.	32
4	10 AWG	12 AWG	0.76 mm	16.0 mm	345 kg/km	150 kg	224 mm	32

ISO-AC90 600V – Copper Conductors – Isolated Circuit
CONDUCTOR COUNT	CONDUCTOR SIZE	INS. GROUND SIZE	GROUND SIZE	INSULATION THICKNESS	ARMOUR O.D.	CABLE WEIGHT	MAX. PULLING TENSION	MIN. BEND RADIUS	AMPACITY (A)
2	14 AWG	14 AWG	14 AWG	0.030 in.	0.440 in.	105 lbs/Mft	66 lbs	6.2 in.	25
				0.76 mm	11.2 mm	156 kg/km	30 kg	156 mm
2	12 AWG	12 AWG	14 AWG	0.030 in.	0.485 in.	138 lbs/Mft	104 lbs	6.8 in.	30
				0.76 mm	12.3 mm	206 kg/km	47 kg	172 mm
2	10 AWG	10 AWG	12 AWG	0.030 in.	0.533 in.	186 lbs/Mft	166 lbs	7.5 in.	40
				0.76 mm	13.5 mm	277 kg/km	75 kg	190 mm
3	12 AWG	12 AWG	14 AWG	0.030 in.	0.522 in.	165 lbs/Mft	157 lbs	7.5 in.	24
				0.76 mm	13.3 mm	245 kg/km	71 kg	190 mm
3	10 AWG	10 AWG	12 AWG	0.030 in.	0.591 in.	232 lbs/Mft	249 lbs	8.3 in.	32
				0.76 mm	15.0 mm	346 kg/km	113 kg	210 mm

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
