CSA 600V AC90 Aluminum Cable with 3 Conductors
Voltage:	600V
Structure:	Conductor	Stranded AA-8000 Series Aluminum Alloy (ACM)
	Insulation	Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
	Bonding Conductor	Stranded AA-8000 Series Aluminum Alloy (ACM)
	Armour	Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
	Sheath Colour	3Core: Black, White, Red 4Core: Black, White, Red and Blue

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance. For use in ventilated, non-ventilated and ladder-type cable trays. For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.

Voltage Rating Uo/U

600V

Temperature Rating

-40°C to 90°C

STANDARDS

Industry compliances: CSA Standard C22.2 No. 51, No.38 and No.2256, RoHS

Flame test compliances: CSA ST1 and FT4

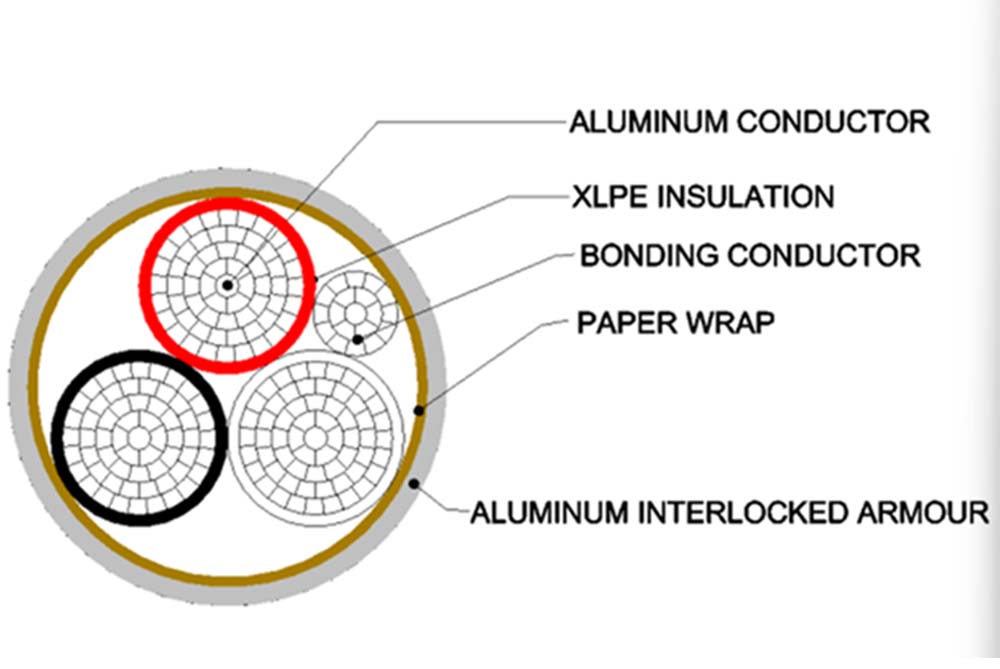

CONSTRUCTION

Conductor

Stranded AA-8000 Series Aluminum Alloy (ACM)

Insulation

Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free

Bonding Conductor

Stranded AA-8000 Series Aluminum Alloy (ACM)

Armour

Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour

Sheath Colour

3Core: Black, White, Red

4Core: Black, White, Red and Blue

AC90 600V – 3 Aluminum Conductors
CONDUCTOR SIZE	GROUND SIZE	INSULATION THICKNESS	CABLE DIAMETER	CABLE WEIGHT	MAX PULLING TENSION	MIN. BEND RADIUS	AMPACITY (A)
6 AWG	8 AWG	0.045 in.	0.800 in.	243 lbs/Mft	526 lbs	11.2 in.	55
6 AWG	8 AWG	1.14 mm	20.3 mm	361 kg/km	239 kg	285 mm	55
4 AWG	6 AWG	0.045 in.	0.880 in.	286 lbs/Mft	832 lbs	12.3 in.	75
4 AWG	6 AWG	1.14 mm	22.4 mm	426 kg/km	377 kg	313 mm	75
2 AWG	6 AWG	0.045 in.	1.030 in.	392 lbs/Mft	1322 lbs	14.4 in.	100
2 AWG	6 AWG	1.14 mm	26.2 mm	583 kg/km	600 kg	366 mm	100
1 AWG	4 AWG	0.055 in.	1.160 in.	477 lbs/Mft	1653 lbs	16.2 in.	115
1 AWG	4 AWG	1.40 mm	29.5 mm	710 kg/km	750 kg	413 mm	115
1/0 AWG	4 AWG	0.055 in.	1.250 in.	622 lbs/Mft	2081 lbs	17.5 in.	135
1/0 AWG	4 AWG	1.40 mm	31.8 mm	925 kg/km	944 kg	445 mm	135
2/0 AWG	4 AWG	0.055 in.	1.320 in.	738 lbs/Mft	2696 lbs	18.5 in.	150
2/0 AWG	4 AWG	1.40 mm	33.5 mm	1099 kg/km	1223 kg	469 mm	150
3/0 AWG	4 AWG	0.055 in.	1.420 in.	843 lbs/Mft	3375 lbs	19.9 in.	175
3/0 AWG	4 AWG	1.40 mm	36.1 mm	1254 kg/km	1531 kg	505 mm	175
4/0 AWG	4 AWG	0.055 in.	1.530 in.	994 lbs/Mft	4199 lbs	21.4 in.	205
4/0 AWG	4 AWG	1.40 mm	38.9 mm	1479 kg/km	1905 kg	544 mm	205
250 kcmil	2 AWG	0.065 in.	1.641 in.	1203 lbs/Mft	5152 lbs	23.0 in.	230
250 kcmil	2 AWG	1.65 mm	41.7 mm	1791 kg/km	2337 kg	584 mm	230
300 kcmil	2 AWG	0.065 in.	1.828 in.	1355 lbs/Mft	5807 lbs	25.6 in.	260
300 kcmil	2 AWG	1.65 mm	46.4 mm	2017 kg/km	2634 kg	650 mm	260
350 kcmil	2 AWG	0.065 in.	1.843 in.	1546 lbs/Mft	7396 lbs	25.8 in.	280
350 kcmil	2 AWG	1.65 mm	46.8 mm	2301 kg/km	3355 kg	655 mm	280
400 kcmil	2 AWG	0.065 in.	1.991 in.	1713 lbs/Mft	7960 lbs	27.9 in.	305
400 kcmil	2 AWG	1.65 mm	50.6 mm	2549 kg/km	3611 kg	708 mm	305
500 kcmil	1 AWG	0.080 in.	2.155 in.	2112 lbs/Mft	9804 lbs	30.2 in.	350
500 kcmil	1 AWG	2.03 mm	54.7 mm	3143 kg/km	4447 kg	766 mm	350
600 kcmil	1 AWG	0.080 in.	2.320 in.	2447 lbs/Mft	12103 lbs	32.5 in.	385
600 kcmil	1 AWG	2.03 mm	59 mm	3642 kg/km	5490 kg	825 mm	385
750 kcmil	1/0 AWG	0.080 in.	2.523 in.	2934 lbs/Mft	15568 lbs	35.3 in.	435
750 kcmil	1/0 AWG	2.03 mm	64.1 m	4367 kg/km	7062 kg	897 mm	435

AC90 600V – 4 Aluminum Conductors
CONDUCTOR SIZE	GROUND SIZE	INSULATION THICKNESS	CABLE DIAMETER	CABLE WEIGHT	MAX. PULLING TENSION	MIN. BEND RADIUS	AMPACITY (A)
4 AWG	6 AWG	0.045 in.	0.937 in.	405 lbs/Mft	1109 lbs	13.1 in.	60
4 AWG	6 AWG	1.14 mm	23.9 mm	603 kg/km	503 kg	333 mm	60
2 AWG	6 AWG	0.045 in.	1.070 in.	472 lbs/Mft	1763 lbs	15.0 in.	80
2 AWG	6 AWG	1.14 mm	27.2 mm	702 kg/km	799 kg	381 mm	80
1 AWG	4 AWG	0.055 in.	1.260 in.	591 lbs/Mft	2203 lbs	17.6 in.	92
1 AWG	4 AWG	1.40 mm	32.0 mm	879 kg/km	999 kg	448 mm	92
