AACSR-Aluminum Alloy Conductor Steel Reinforced
Voltage:	Height Voltage
Structure:	Conductor	Aluminum Alloy Wires, concentrically stranded over a central wire/core of Galvanized steel
	Feature	Bare conductor

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

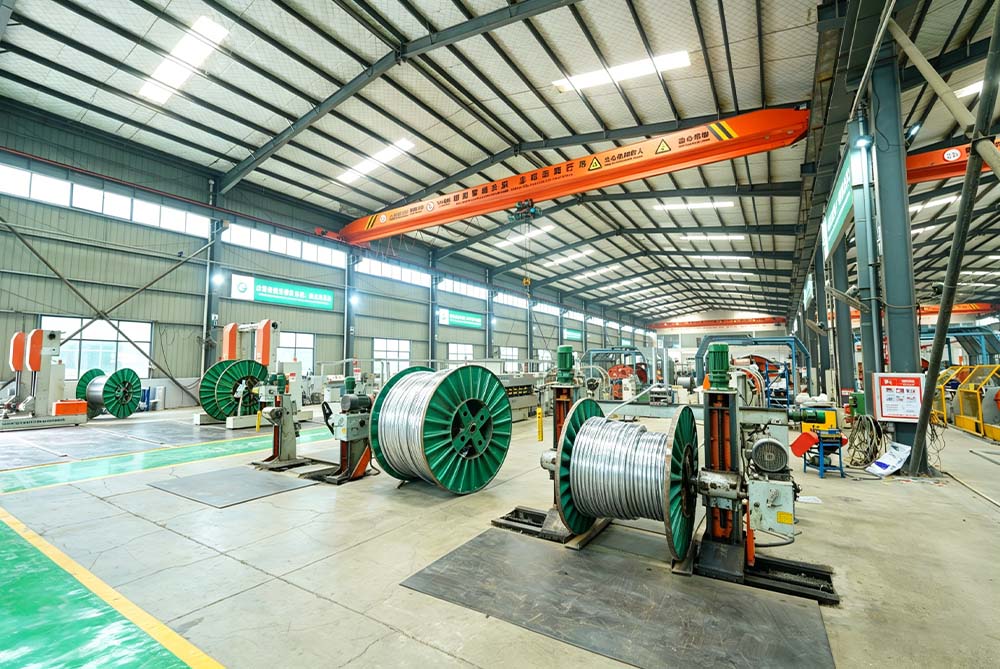

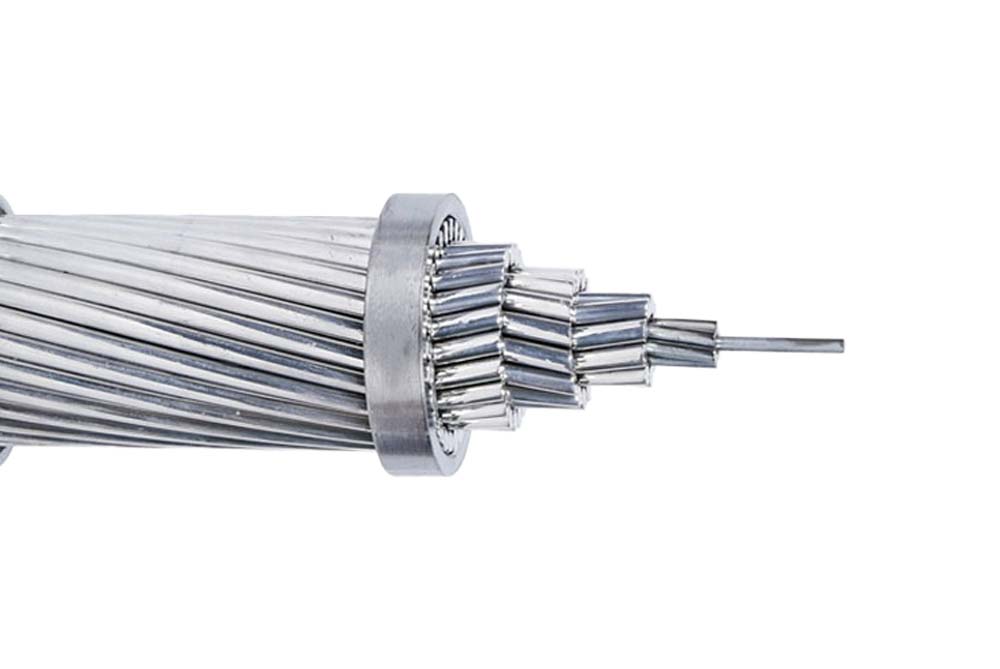

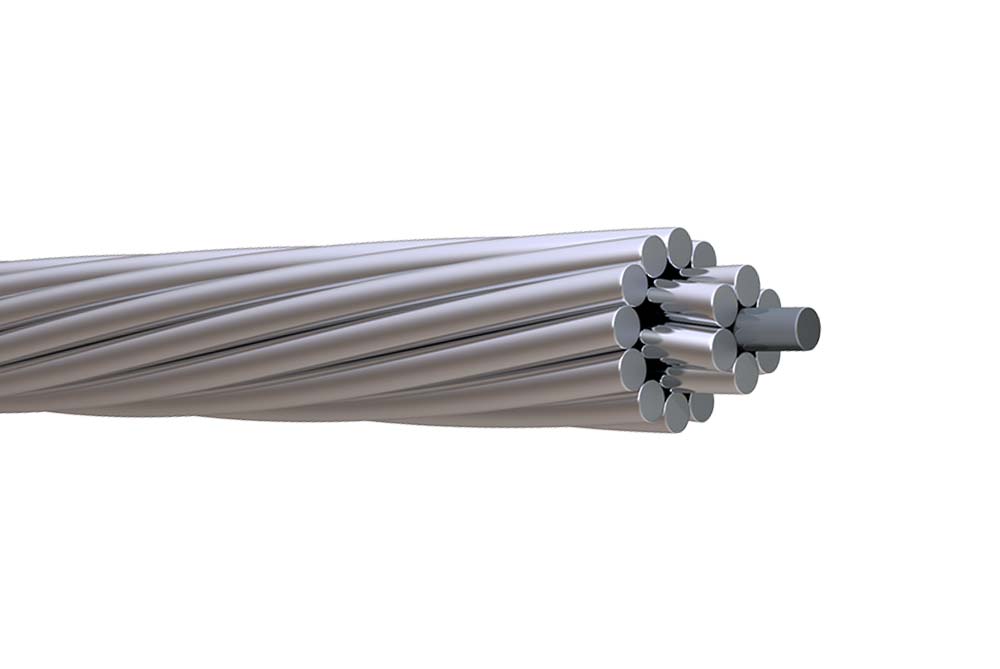

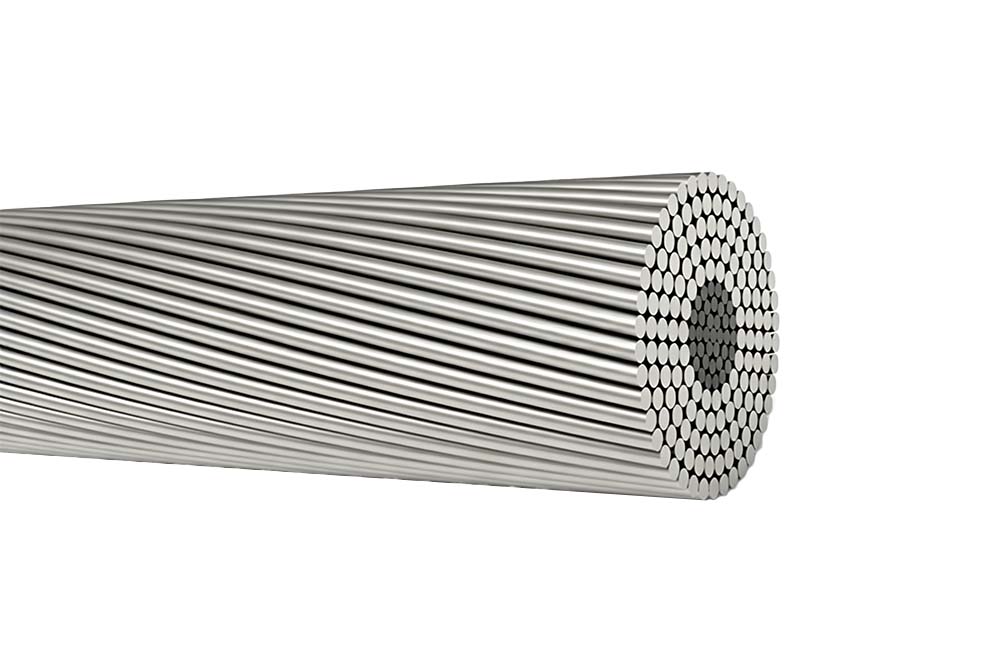

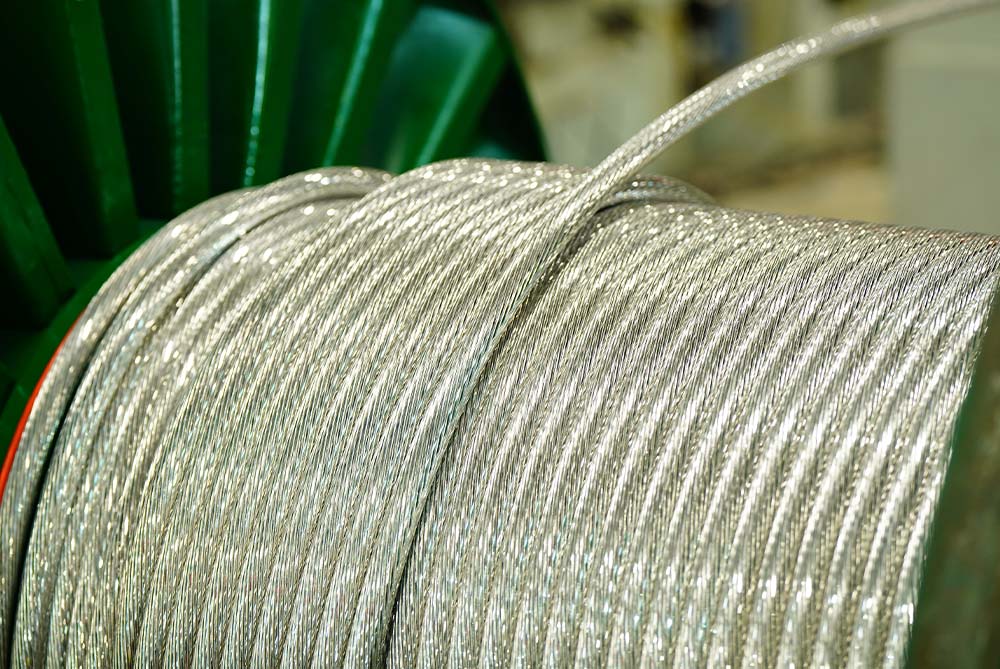

AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium-Magnesium-Silicon alloywire stranded over a high-strength zinc coated (galvanized) steel core. AACSR Conductors have approx. 40% to60% more strength than comparable standard ACSR with only 8 to 10% decrease in conductivity.

STANDARDS

IEC Standards IEC61089 STANDARD

American Standards ASTM B711

CONSTRUCTION

Conductor

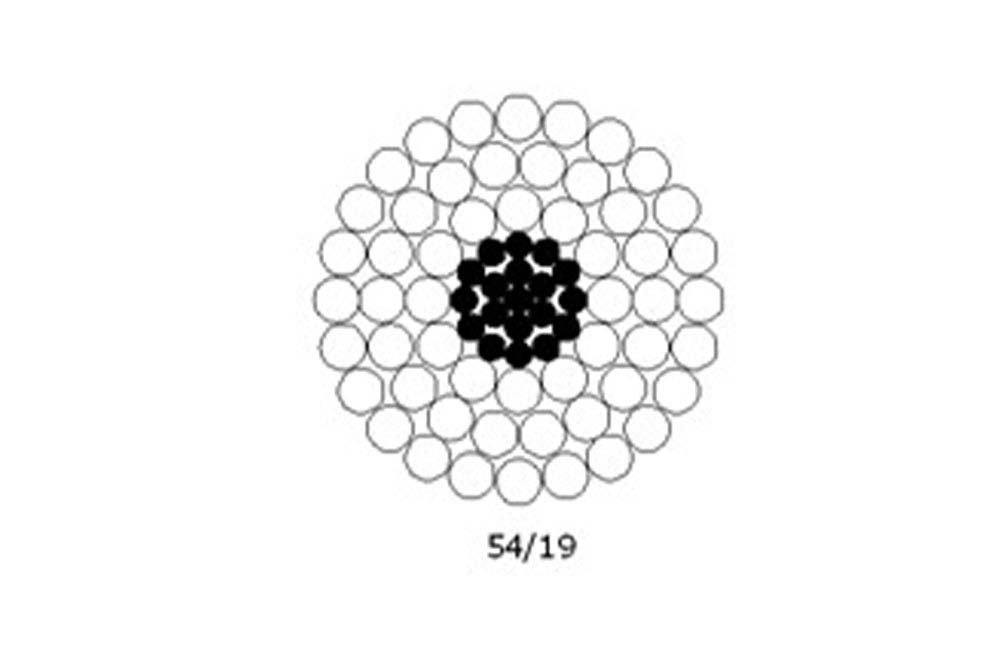

Aluminum Alloy Wires, concentrically stranded over a central wire/core of Galvanized steel

CORSS SECTIONAL AREA(MM2)	STEEL RATIO(%)	AAAC SECTIONAL AREA(MM2)	STEEL SECTIONAL AREA(MM2)	TOTAL CORSS SECTIONAL AREA(MM2)	SINGLE AAAC WIRE NO. (N)	SINGLE STEEL WIRE NO. (N)	SINGLE AAAC WIRE DIAMETER(MM)	SINGLE STEEL WIRE DIAMETER(MM)	STEEL CORE DIAMETER(mm)	TOTAL DIAMETER(mm)	WEIGHT(KG/KM)	DC RESISTANCE (OHM/KM)	RATED BREAKING FORCE
10/2	17	10.6	1.77	12.37	6	1	1.5	1.5	1.5	4.5	42.8	3.1444	5.51
16/3	17	16.13	2.69	18.82	6	1	1.85	1.85	1.85	5.55	65.1	2.0671	8.39
25/4	17	25.36	4.23	29.59	6	1	2.32	2.32	2.32	6.96	102.40	1.3144	13.06
35/6	17	34.86	5.81	40.67	6	1	2.72	2.72	2.72	8.16	140.8	0.9563	17.96
50/8	17	48.25	8.04	56.3	6	1	3.2	3.2	3.2	9.6	194.8	0.6909	24.53
50/30	58	50.73	29.59	80.32	12	7	2.32	2.32	6.96	11.6	371.1	0.6614	50.22
70/10	17	68.05	11.34	79.39	6	1	3.8	3.8	3.8	11.4	274.8	0.4899	33.91
70/40	58	69.73	40.67	110.4	12	7	2.72	2.72	8.16	13.6	510.2	0.4812	69.03
95/15	16	94.39	15.33	109.73	26	7	2.15	1.67	5.01	13.6	380.2	0.3554	48.62
95/55	58	96.51	56.3	152.81	12	7	3.2	3.2	9.6	16	706.1	0.3477	93.29
120/7	6	118.89	6.61	125.5	18	1	2.9	2.9	8.7	14.5	378.5	0.2815	46.17
120/20	16	115.67	18.82	134.49	26	7	2.38	1.85	5.55	15.1	466.1	0.29	59.61
120/70	58	122.15	71.25	193.4	12	7	3.6	3.6	10.8	18	893.7	0.2747	116.85
150/8	6	144.76	8.04	152.81	18	1	3.2	3.2	3.2	16	460.9	0.2312	55.9
150/25	16	148.86	24.25	173.11	26	7	2.7	2.1	6.3	17.1	600.1	0.2254	76.75
185/10	6	183.22	10.18	193.4	18	1	3.6	3.6	3.6	18	583.3	0.1826	68.91
210/10	6	204.14	11.34	215.48	18	1	3.8	3.8	3.8	19	649.9	0.1639	76.78
210/35	16	211.73	34.36	246.09	26	7	3.22	2.5	7.5	20.4	852.5	0.1585	107.98
240/30	13	244.29	31.67	275.96	24	7	3.6	2.4	7.2	21.6	920.7	0.1372	113.05
240/40	16	238.84	38.9	277.74	26	7	3.42	2.66	7.98	21.7	962.8	0.1405	121.97
300/20	7	303.42	20.91	324.32	45	7	2.93	1.95	5.85	23.4	1000.8	0.1106	123.07
300/50	16	299.54	48.82	348.37	26	7	3.83	2.98	8.94	24.3	1207.7	0.112	150.01
300/70	23	305.36	71.25	376.61	30	7	3.6	3.6	10.8	25.2	1399.6	0.1099	174.57
400/25	7	391.91	27.1	419.01	45	7	3.33	2.22	6.66	26.6	1293.5	0.0857	159.07
400/50	13	399.72	51.82	451.54	54	7	3.07	3.07	9.21	27.6	1509.3	0.0841	186.91
400/95	23	407.75	93.27	501.02	30	19	4.16	2.5	12.5	29.1	1856.7	0.0823	234.77
500/35	7	497.01	34.36	531.37	45	7	3.75	2.5	7.5	30	1640.3	0.0675	195.73
500/65	13	501.88	65.06	566.94	54	7	3.44	3.44	10.3	31	1895	0.067	234.68
630/45	7	623.45	43.1	666.55	45	7	4.2	2.8	8.4	33.6	2057.6	0.0538	245.52
630/80	13	635.19	80.32	715.51	54	19	3.87	2.32	11.6	34.8	2384.7	0.0529	291.65
800/55	7	814.3	56.3	870.6	45	7	4.8	3.2	9.6	38.4	2687.5	0.0412	318.43
800/100	13	795.17	100.88	896.05	54	19	4.33	2.6	13	39	2987.8	0.0423	365.48
1000/45	4	1002.27	43.1	1045.38	72	7	4.21	2.8	8.4	42.1	3106.8	0.0335	364.85
1000/125	13	993.51	125.5	1119.01	54	19	4.84	2.9	14.5	43.5	3728.9	0.0338	456.03

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
