AAC-All Aluminium Conductor
Voltage:	Height Voltage
Structure:	Conductor	Hard-Drawn aluminum
	Feature	Bare conductor

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

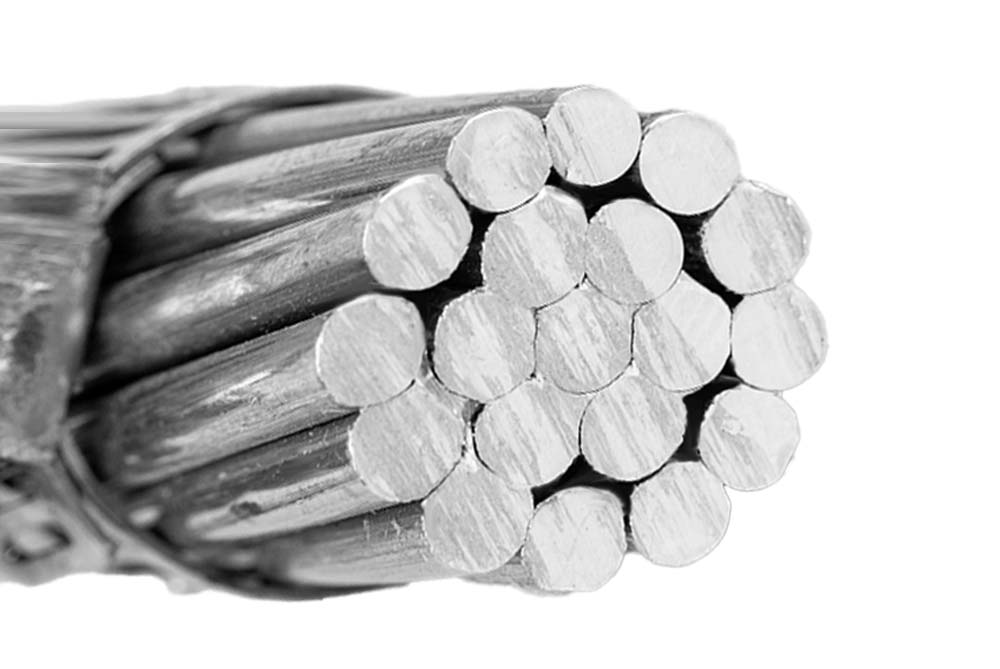

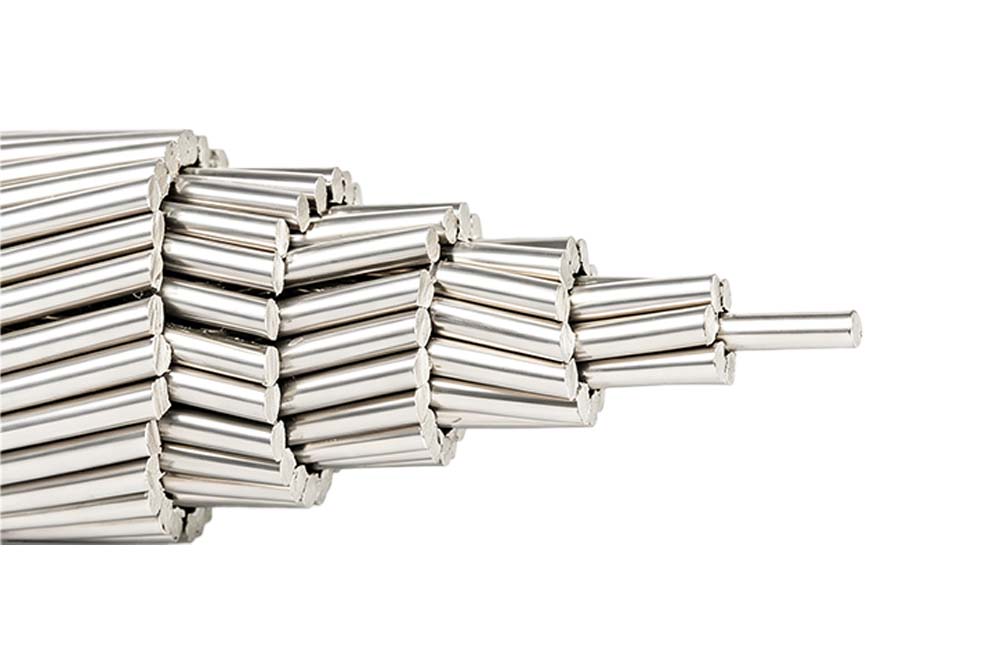

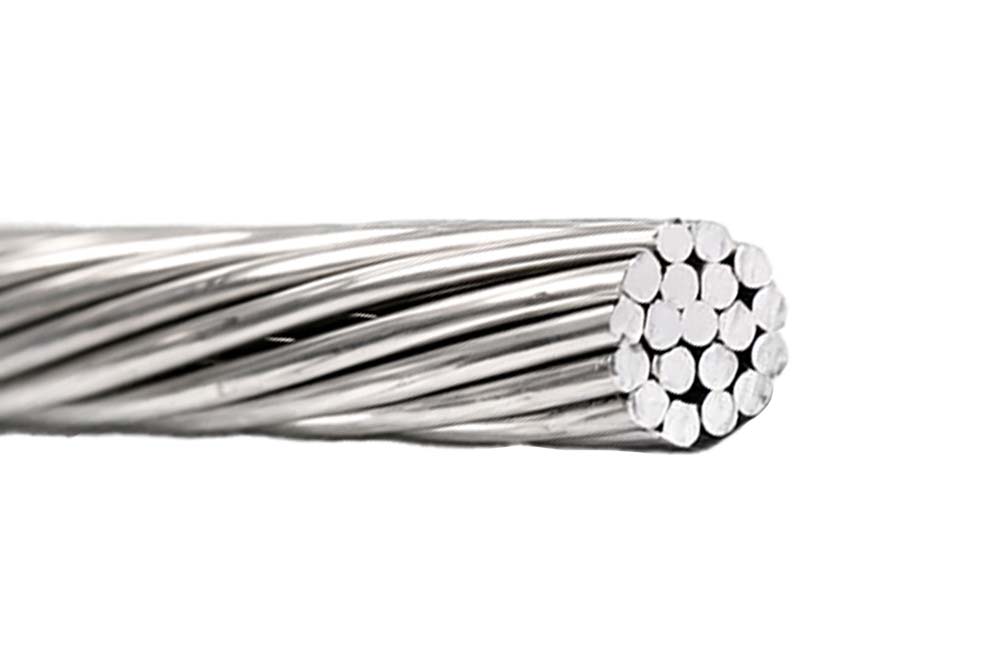

AAC conductor is also known as aluminium stranded conductor. AAC is used mainly in urban areas where the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on theend usage. AAC is also used extensively in coastal regions because it has a high degree of corrosion resistance.

STANDARDS

IEC Standards IEC61089:1991

American Standards ASTM B231/B231M-04

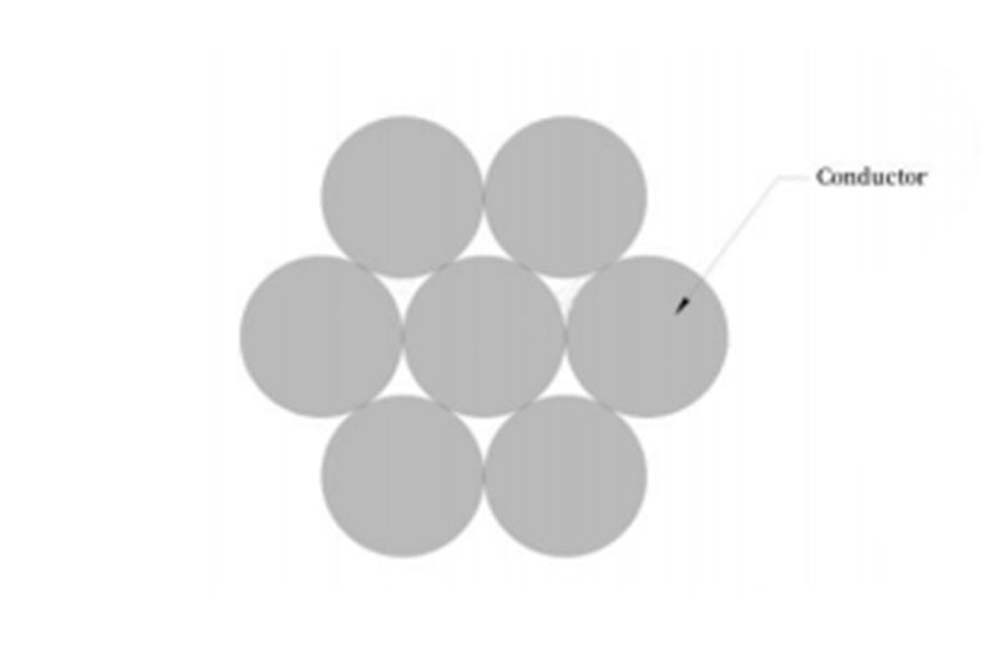

CONSTRUCTION

Conductor

Hard-Drawn aluminum

CONDUCTOR MODEL	SPECIFICATION(MM2)	CORSS SECTIONAL AREA(MM2)	Stranding(N)	Wire DIAMETER(MM)	OVERALL DIAMATER(MM)	WEIGHT(KG/KM)	DC RESISTANCE (OHM/KM)

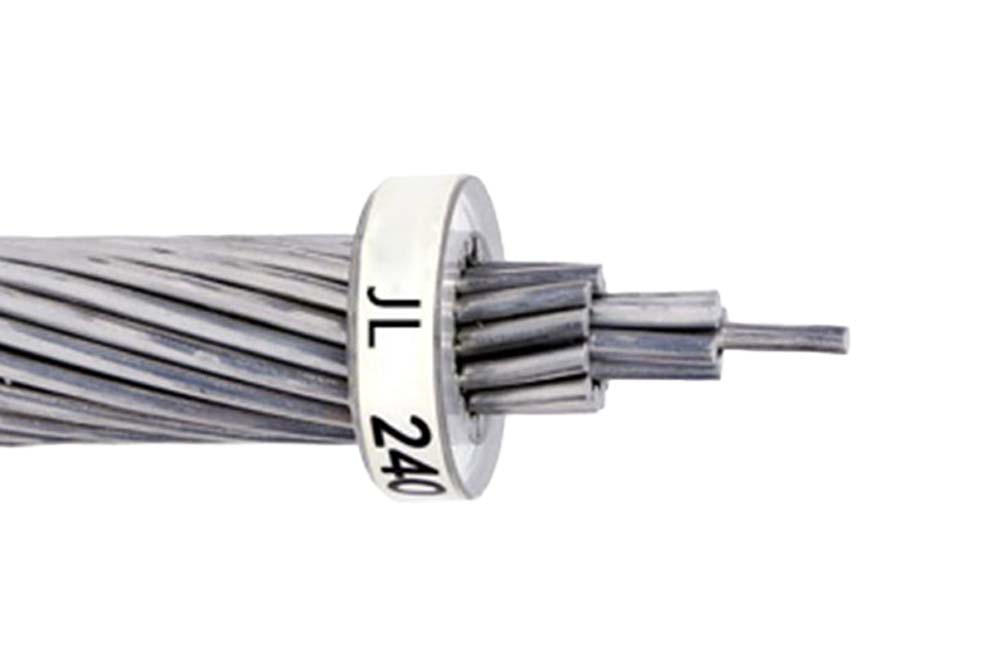

JL	35	34.36	7	2.5	7.5	94	0.8333
	50	49.48	7	3	9	135.3	0.5787
	70	71.25	7	3.6	10.8	194.9	0.4019
	95	95.14	7	4.16	12.5	260.2	0.301
	120	121.21	19	2.85	14.3	333.2	0.2374
	150	148.07	19	3.15	15.8	407	0.1943
	185	182.8	19	3.5	17.5	502.4	0.1574
	210	209.85	19	3.75	18.8	576.8	0.1371
	240	238.76	19	4	20	656.3	0.1205
	300	297.57	37	3.2	22.4	819.8	0.0969
	500	502.9	37	4.16	29.1	1385.5	0.0573
JL-(IEC)	10	10	7	1.35	4.05	27.4	2.8633
	16	16	7	1.71	5.12	43.8	1.7896
	25	25	7	2.13	6.4	68.4	1.1453
	40	40	7	2.7	8.09	109.4	0.7158
	63	63	7	3.39	10.2	172.3	0.4545
	100	100	19	2.59	12.9	274.8	0.2877
	125	125	19	2.89	14.5	343.6	0.2302
	160	160	19	3.27	16.4	439.8	0.1798
	200	200	19	3.66	18.3	549.7	0.1439
	250	250	19	4.09	20.5	687.1	0.1151
	315	315	37	3.29	23	867.9	0.0916
	400	400	37	3.71	26	1102	0.0721
	450	450	37	3.94	27.5	1239.8	0.0641
	500	500	37	4.15	29	1377.6	0.0577
	560	560	37	4.39	30.7	1542.9	0.0515
	630	630	61	3.63	32.6	1738.3	0.0458
	710	710	61	3.85	34.6	1959.1	0.0407
	800	800	61	4.09	36.8	2207.4	0.0361
	900	900	61	4.33	39	2483.3	0.0321
	1000	1000	61	4.57	41.1	2759.2	0.0289
	1120	1120	91	3.96	43.5	3093.5	0.0258
	1250	1250	91	4.18	46	3452.6	0.0231
	1400	1400	91	4.43	48.7	3866.9	0.0207
	1500	1500	91	4.58	50.4	4143.1	0.0193
	1300	1301	91	4.27	46.9	3594.4

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
