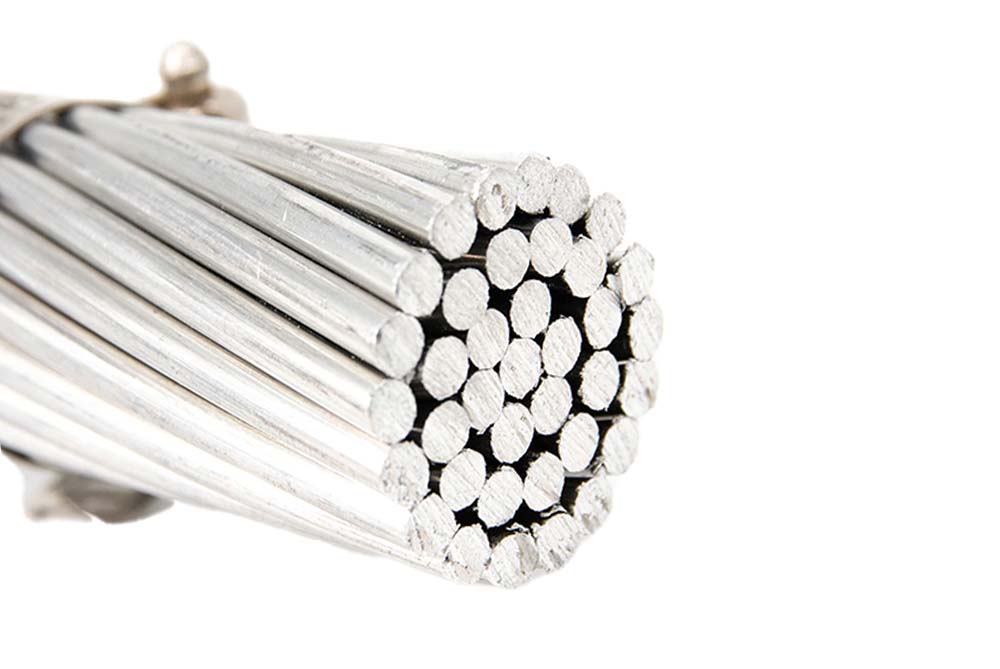

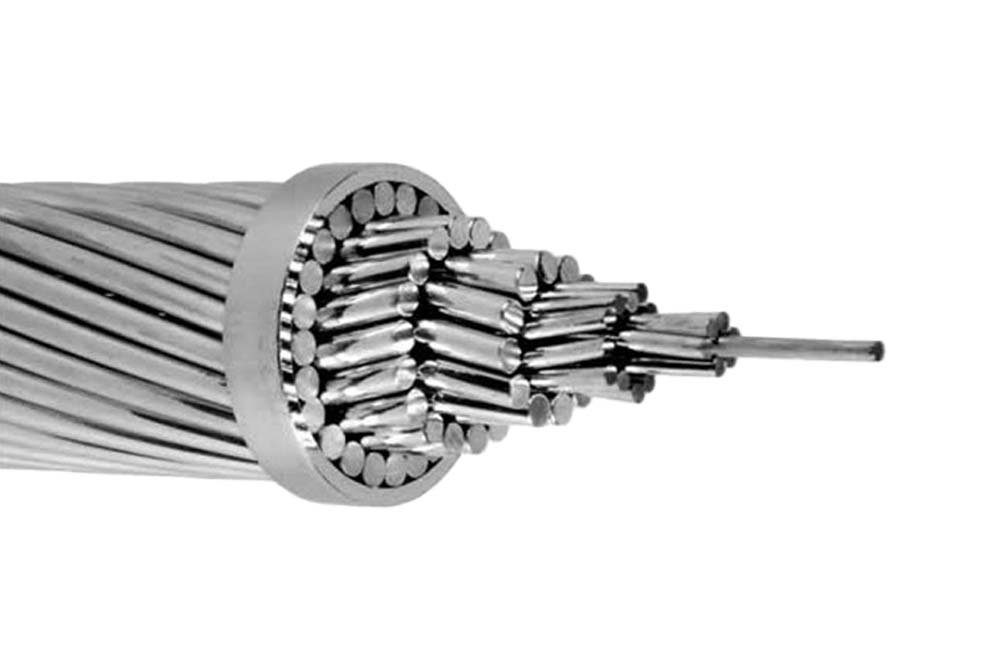

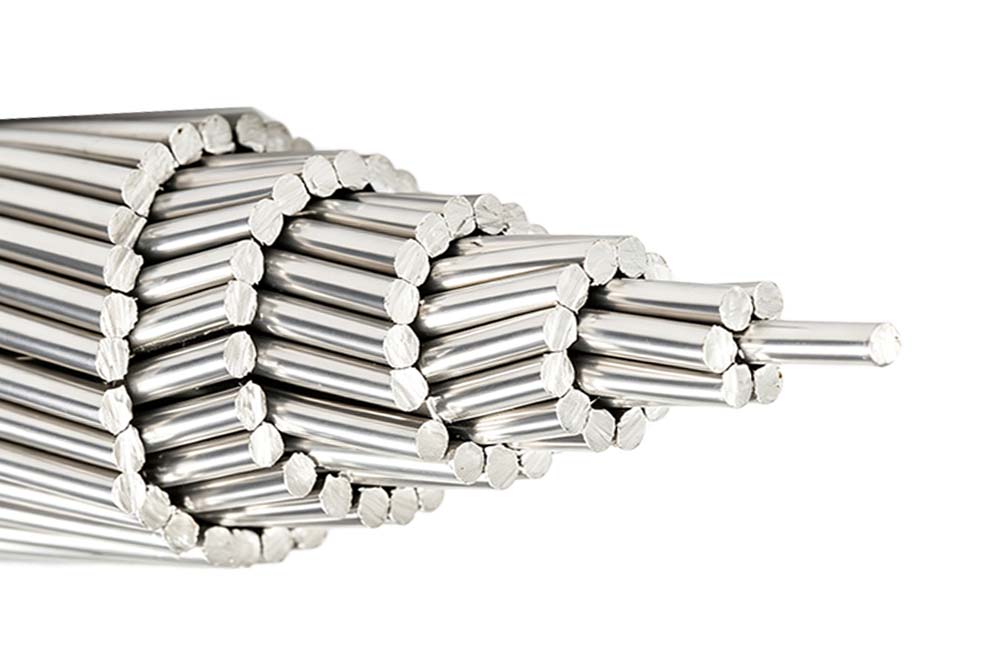

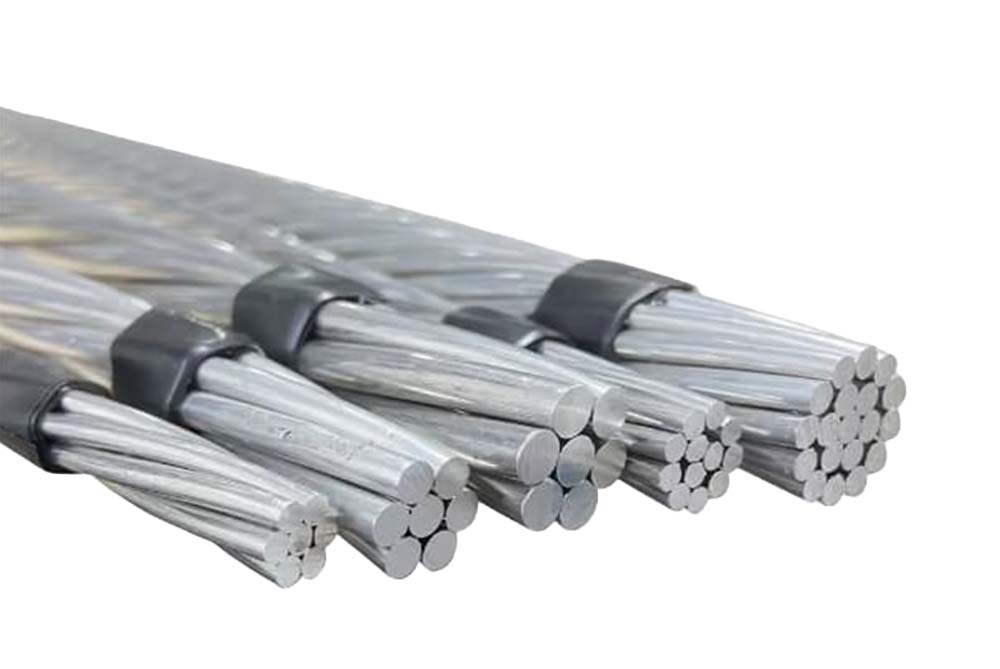

AAAC-All Aluminium Alloy Conductor
Voltage:	Height Voltage
Structure:	Conductor	Aluminium alloy conductor
	Feature	Bare conductor

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristicsand the strength-to-weight ratio of AAAC is better than both AAC / ACSR.

STANDARDS

American Standards ASTM B399-97

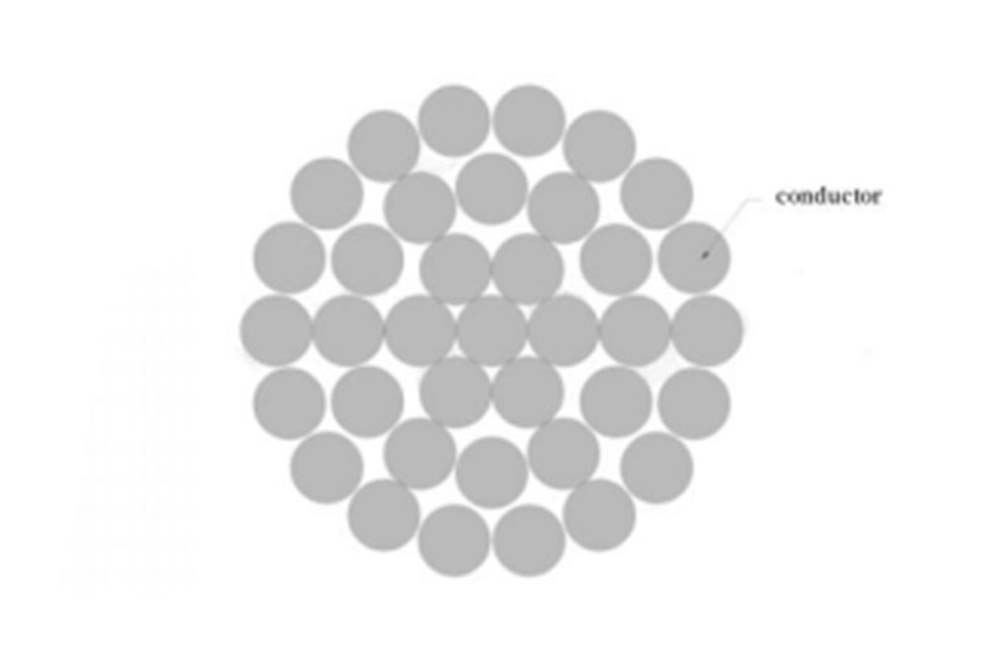

CONSTRUCTION

Conductor

Aluminium alloy conductor

CONDUCTOR MODEL	SPECIFICATION (MM2)	CORSS SECTIONAL(MM2)	NO. OF WIRES(N)	DIAMETER OR WIRE (MM)	OVERALL DIAMETER OF CONDUCTOR (MM)	WEIGHT (KG/KM)
AAAC	10	10.02	7	1.35	4.05	27.4
	16	16.08	7	1.71	5.13	44
	25	24.94	7	2.13	6.39	68.2
	35	34.91	7	2.52	7.56	95.5
	50	50.14	7	3.02	9.06	137.2
	70	70.07	7	3.57	10.7	191.7
	95	95.14	7	4.16	12.5	261.5
	150	149.96	19	3.17	15.9	412.2
	210	209.85	19	3.75	18.8	576.8
	240	239.96	19	4.01	20.1	661.1
	300	299.43	37	3.21	22.5	825
	400	399.98	37	3.71	26	1102
	500	500.48	37	4.15	29.1	1380.9
	630	631.3	61	3.63	32.7	1741.8
	800	801.43	61	4.09	36.8	2211.3
	1000	1000.58	61	4.57	41.1	2760.7
AAAC-(IEC)	20	18.6	7	1.84	5.52	50.8
	30	29	7	2.3	6.9	79.5
	45	46.5	7	2.91	8.72	127.1
	75	73.2	7	3.65	10.9	200.2
	120	116	19	2.79	14	319.3
	145	145	19	3.12	15.6	399.2
	185	186	19	3.53	17.6	511
	230	232	19	3.95	19.7	638.7
	300	290	19	4.41	22.1	798.4
	360	366	37	3.55	24.8	1008.4
	465	465	37	4	28	1280.5
	520	523	37	4.24	29.7	1440.5
	580	581	37	4.47	31.3	1600.6
	650	651	61	3.69	33.2	1795.3
	720	732	61	3.91	35.2	2019.8
	825	825	61	4.15	37.3	2276.2
	930	930	61	4.4	39.6	2564.8
	1050	1046	91	3.83	42.1	2888.3
	1150	1162	91	4.03	44.4	3209.3
	1300	1301	91	4.27	46.9	3594.4

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
