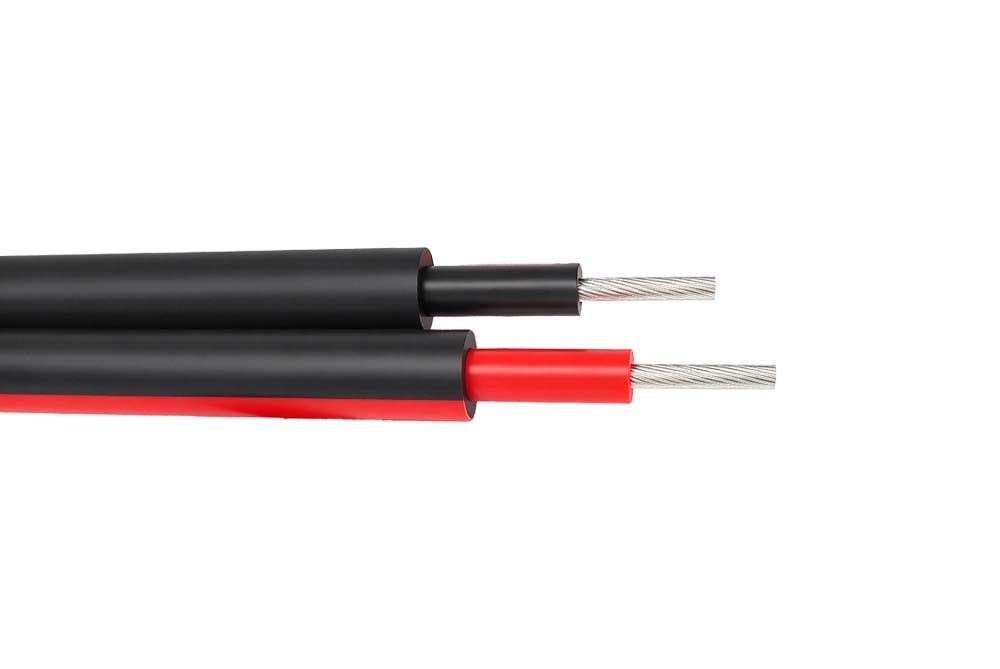

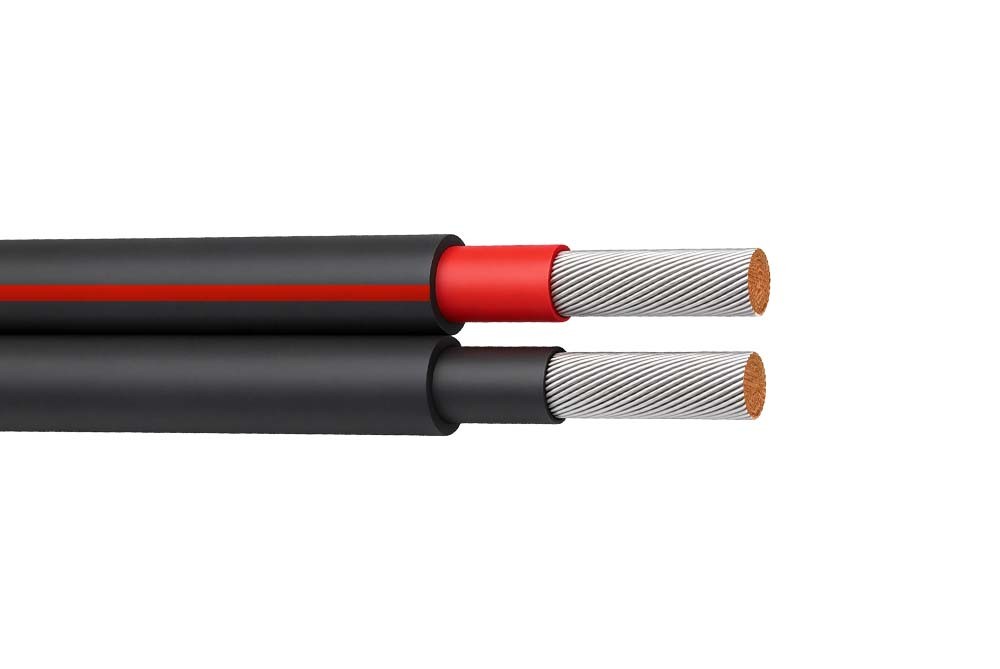

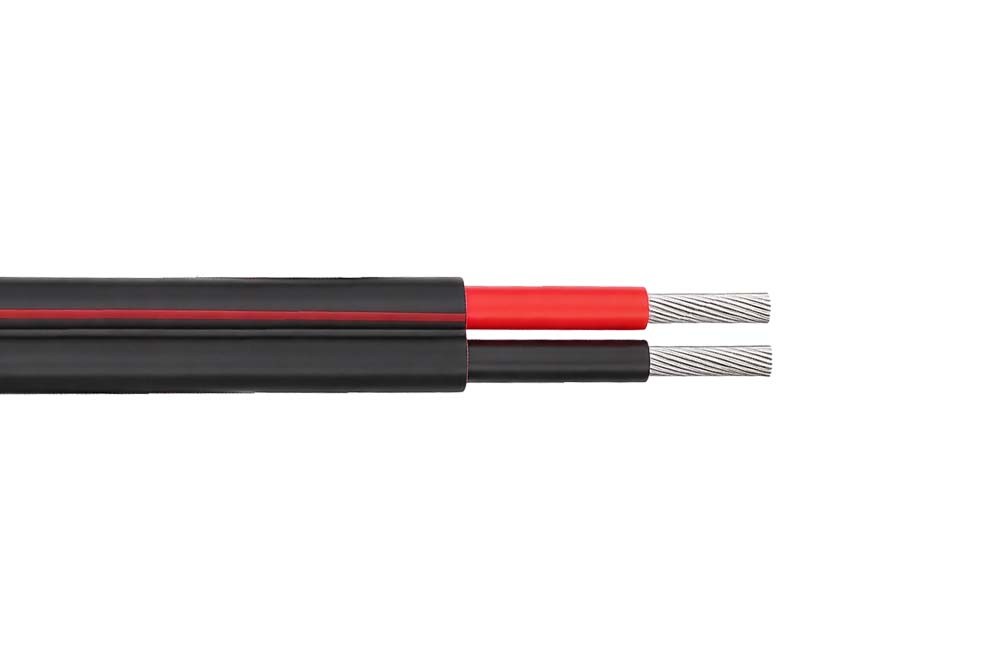

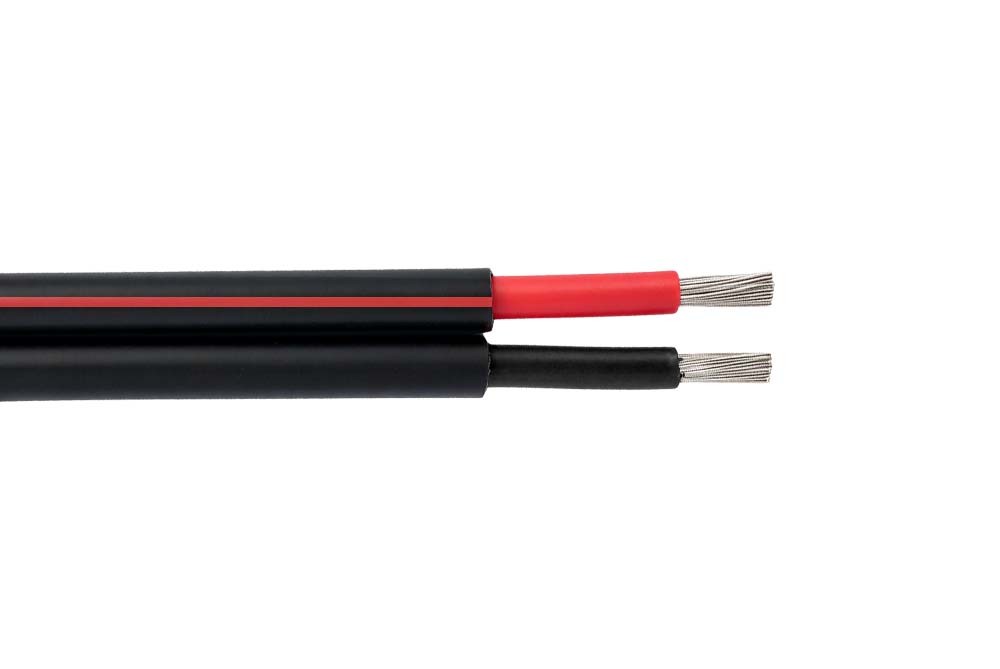

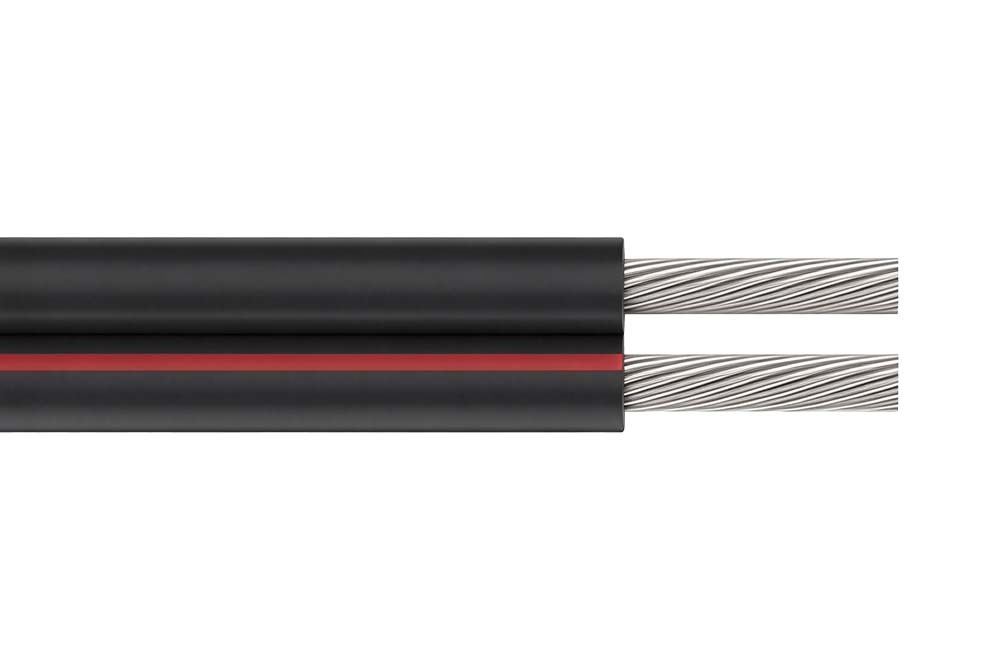

1500V DC Twin Core EN50618 TUV Certified
Voltage:	DC 1.5kV; AC 1.0/1.0kV
Structure:	Conductor	Tinned soft copper conductor
	Insulation	XL insulation
	Sheath	XL sheath
	Insulation Colors	Black and Red
	Outer Sheath Colors	Black, other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Cables for use in photovoltaic systems, in particular for installation at Direct Current side.

CHARACTERISTICS

Rated Voltage

DC 1.5kV; AC 1.0/1.0kV

Highest System Voltage (Um)

1.8kV

Max. Conductor Operating Temperature

90°C

Min. Bending Radius During Installation

8xD (D is diameter of cable)

Min. Bending Radius Fix Installed

6xD (D is diameter of cable)

STANDARDS

EN 50618

EN 60228

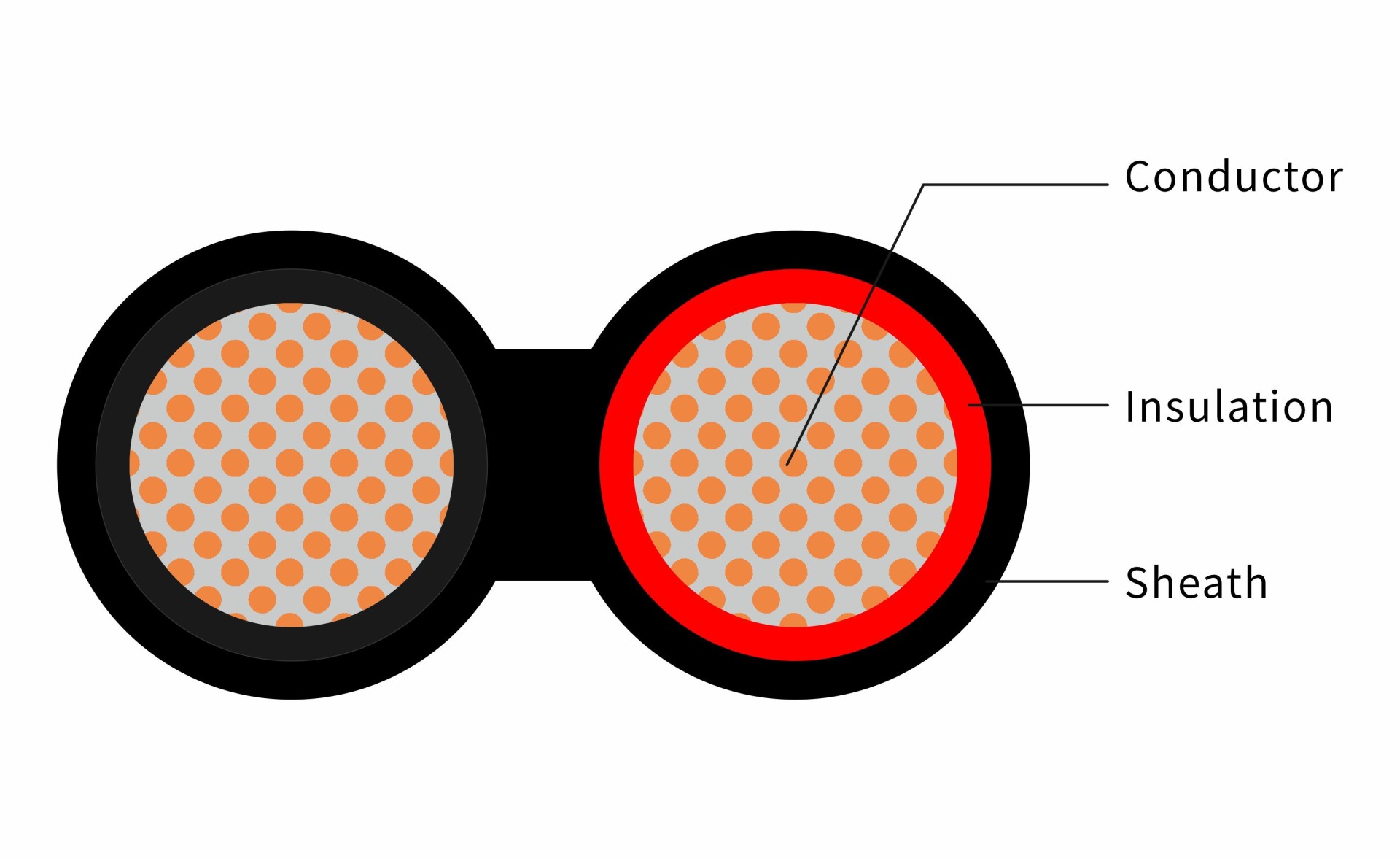

CONSTRUCTION

Conductor

Tinned soft copper conductor

Insulation

XL insulation

Sheath

XL sheath

Insulation Colors

Black and Red

Outer Sheath Colors

Black, other colours available on request

Nominal cross sectional area of conductors	Conductor Stranding	Nominal thickness of Insulation	Nominal thickness of sheath	Approx. dia.	Approx. Weight
mm²	mm	mm	mm	mm	kg/km
2*2.5	48/0.25±0.01	0.7	0.8	5.0*11.0	90
2*4	52/0.3±0.01	0.7	0.8	5.6*11.5	120
2*6	76/0.3±0.01	0.7	0.8	6.1*12.5	156

Nominal cross sectional area of conductors	Max. Conductor DC resistance at 20℃	Minimum insulation resistance at 20℃	Current carrying capacity
mm²	Ω/km	MΩ·km	A
2*2.5	8.21	690	33
2*4	5.09	580	44
2*6	3.39	500	57

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
