NA2XS2Y XLPE HDPE 8.7/15 (17.5) kV Cable
Voltage:	8.7/15 (17.5) kV
Structure:	Conductor	Class 2 stranded compacted aluminium
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	HDPE (High Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage Aluminium HDPE power distribution cable with particular application in wind energy installations.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.5 1

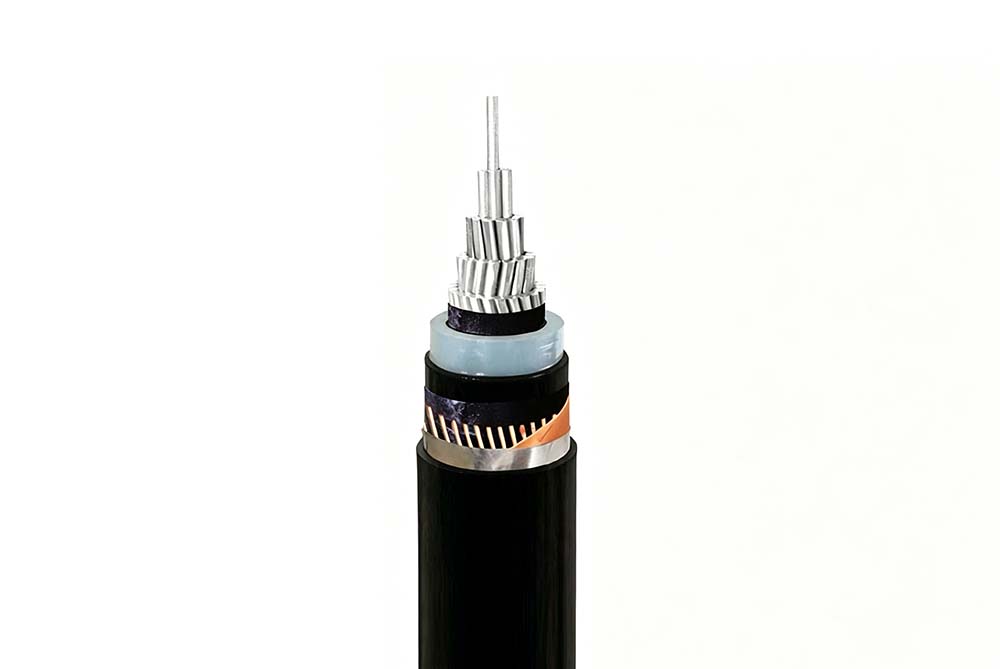

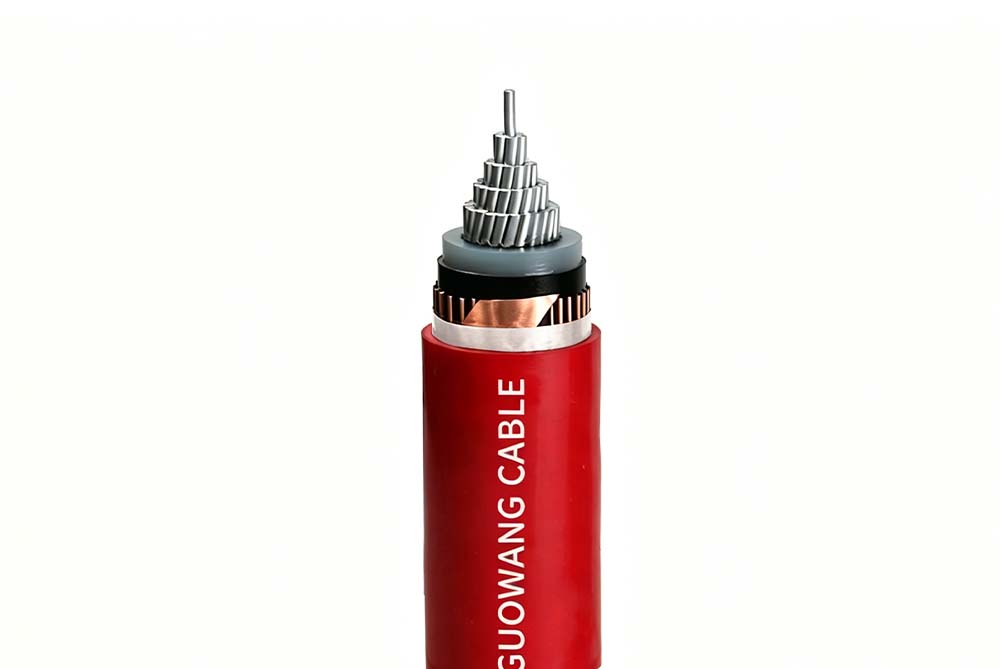

CONSTRUCTION

Conductor

Class 2 stranded compacted aluminium

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Wrapping

Non swelling semi conductive tape

Metallic Screen

Copper Wires and Tape

Wrapping

Polyester tape

Sheath

HDPE (High Density Polyethylene)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL DIAMETER OFCONDUCTOR mm	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DLAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE Kn	MINIMUMM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL DIAMETER OFCONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm2	Nominal diameter over mm	NOMINAL OUTER DLAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE Kn	MINIMUMM BENDING RADIUS m
1	50	8.25	4.5	18.5	16	22.4	27.1	780	1.5	0.41
1	70	9.5	4.5	19.7	25	23.6	28.4	950	2.1	0.43
1	95	11.3	4.5	21.5	35	25.4	30.2	1160	2.85	0.45
1	120	12.5	4.5	22.7	50	26.6	31.4	1400	3.6	0.47
1	150	4:48	4.5	24.4	50	28.3	33.1	1520	4.5	0.5
1	185	15.8	4.5	26	50	29.9	34.7	1660	5.55	0.52
1	240	17.9	4.5	28.1	50	32	36.8	1870	7.2	0.55
1	300	20	4.5	30.2	50	34.1	38	2080	9	0.58
1	400	22.9	4.5	33.1	50	37	41.8	2390	12	0.63
1	500	25.7	4.5	36.4	50	40.5	45.3	2810	15	0.68
1	630	29.3	4.5	40.3	50	44.4	49.3	3310	18.9	0.74
1	800	33	4.5	44.4	50	48.5	53.6	3920	24	0.8
1	1000	38	4.5	49.4	50	53.5	59	4680	30	0.89

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
