N2XSH 18/30 (36)kV Cable | ||
Voltage: | 18/30 (36)kV | |
Structure: | Conductor | Class 2 Stranded Copper |
Insulation | XLPE (Cross-Linked Polyethylene) | |
Screen | Copper wires and copper tape | |
Jacket | LSZH (Low Smoke Zero Halogen) |
Medium voltage power cables for distribution networks and generation units. LSZH outer sheathing makes the cable suitable for internal installation as well as directly in ground, outdoors, and in cable ducts. UV Resistant.
IEC 60502-2, IEC 60228,
UV Resistant
6/10 (12)kV
-20°C to +60°C
+90°C
250°C
15 x overall diameter

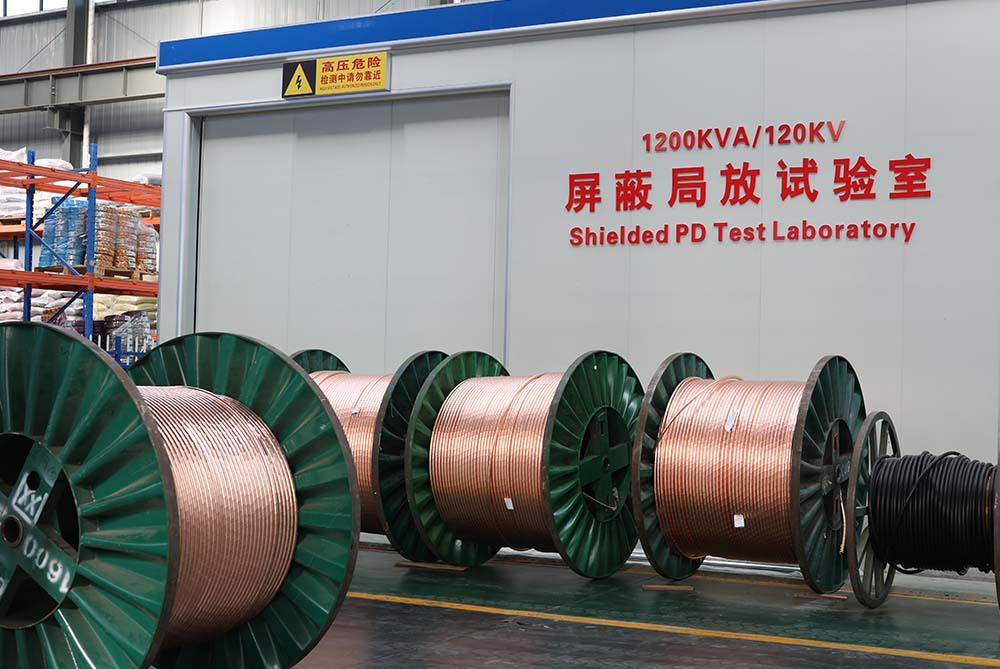

AN ISO/IEC 17025 AND IECEE CBTL ACCREDITED FACILITY
Our world-class testing facility assures the quality and compliance of this cable through a continuous and rigorous testing regime.
We are on a journey to Net Zero.
We've committed to near-term emissions reductions and a net-zero target with the Science Based Targets initiative and we're a signatory to the United Nations Global
Compact Sustainable Development Goals.
Learn more about embodied carbon and our carbon emissions reduction actions, our comprehensive recycling services.

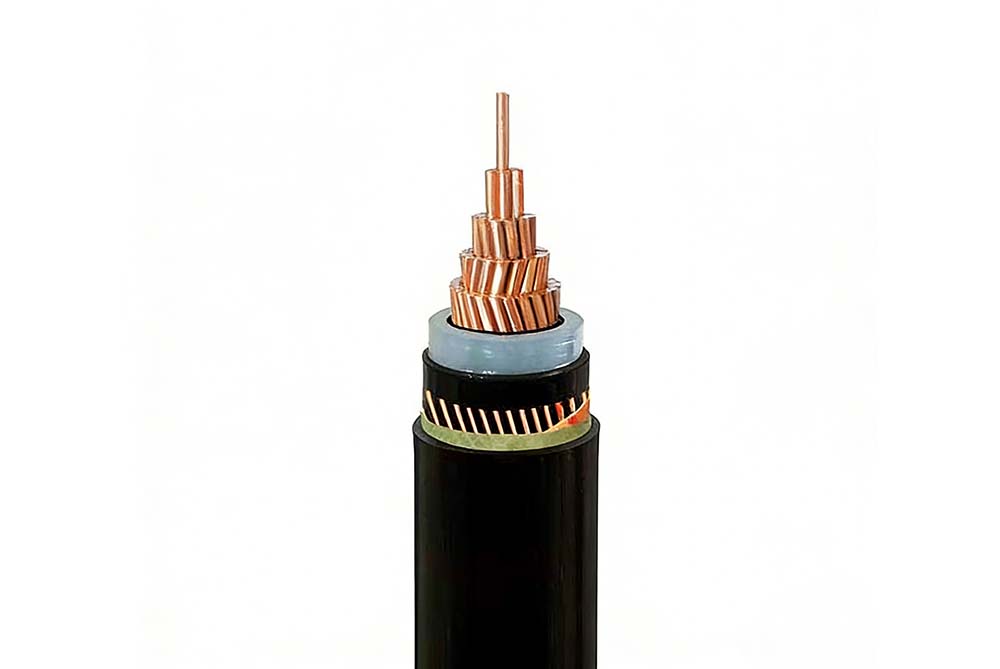

Class 2 Stranded Copper
Semi-conductive material
XLPE (Cross-Linked Polyethylene)
Semi-conductive material (bonded)
Copper wires and copper tape
LSZH (Low Smoke Zero Halogen)
Red Black
NO. OF CORE | NOMINAL CROSS SECTIONAL AREA | NOMINAL CONDUCTOR DIAMETER | NUMBER WIRES CONDUCTOR | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATION | ||
Conductor | Screen | mm | mm | INNER | OUTER | mm | mm | mm | |
1 | 50 | 16 | 8.1 | 10*2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 16.3 |
1 | 70 | 16 | 9.7 | 14*2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 17.9 |
1 | 95 | 16 | 11.4 | 19*2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 19.6 |
1 | 120 | 16 | 12.7 | 19*2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 20.9 |
1 | 150 | 25 | 14.5 | 19*3.20 | 0.5 | 0.4 | 3.4 | 2.96 | 22.7 |
1 | 185 | 25 | 15.9 | 27*2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 24.1 |
1 | 240 | 25 | 18.6 | 48*2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 26.8 |
1 | 300 | 25 | 20.7 | 61*2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 28.9 |
1 | 400 | 35 | 23.5 | 61*2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 31.7 |
1 | 500 | 35 | 26.5 | 61*3.29 | 0.5 | 0.4 | 3.4 | 2.96 | 34.7 |
1 | 630 | 35 | 30.2 | 61*3.80 | 0.5 | 0.4 | 3.4 | 2.96 | 38.9 |
