N2XSH XLPE LSZH 8.7/15 (17.5) kV Cable
Voltage:	8.7/15 (17.5) kV
Structure:	Conductor	Class 2 stranded compacted copper
	Insulation	XLPE (Cross-linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage LSZH sheathed power distribution cables particularly noted for applications in wind energy installations.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

Low Smoke Zero Halogen to: IEC 60754-1 /2, IEC 61034-2

Flame Retardant: IEC 60332-1-2

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.51

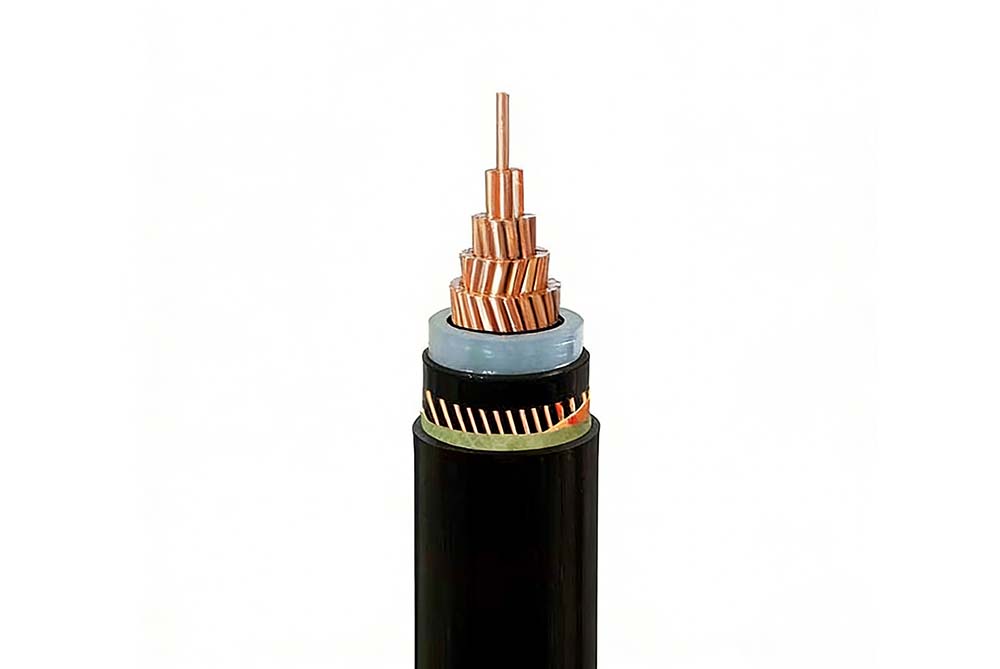

CONSTRUCTION

Conductor

Class 2 stranded compacted copper

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Wrapping

Non swelling semi conductive tape

Metallic Screen

Copper Wires and Tape

Wrapping

Polyester tape

Sheath

LSZH (Low Smoke Zero Halogen)

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL CONDUCTOR DIAMETER	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO. OF CORE	Conductor	mm	Nominal Diameter Over	Nominal Thickness	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	35	7.0	17.2	4.5	16	21.1	25.9	920	1.75	0.39
1	50	8.25	18.5	4.5	16	22.4	27.1	1060	2.5	0.41
1	70	9.6	19.8	4.5	25	23.7	28.5	1370	3.5	0.43
1	95	11.5	21.7	4.5	35	25.6	30.4	1740	4.75	0.46
1	120	12.9	23.1	4.5	50	27.0	31.8	2140	6	0.48
1	150	14.5	27.7	4.5	50	28.6	33.4	2430	7.5	0.50
1	185	16.0	26.2	4.5	50	30.1	34.9	2790	9.25	0.52
1	240	18.5	28.7	4.5	50	32.6	37.4	3350	12	0.56
1	300	20.5	30.7	4.5	50	34.6	39.4	3940	15	0.59
1	400	23.5	33.7	4.5	50	37.6	42.4	4810	20	0.64
1	500	26.5	37.2	4.5	50	41.3	46.1	5920	25	0.69
1	630	30.3	41.3	4.5	50	45.4	50.3	7290	31.5	0.75
1	800	34.6	46.0	4.5	50	50.1	55.4	9010	40	0.83
1	1000	38.2	49.6	4.5	50	53.7	59.2	10930	50	0.89

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

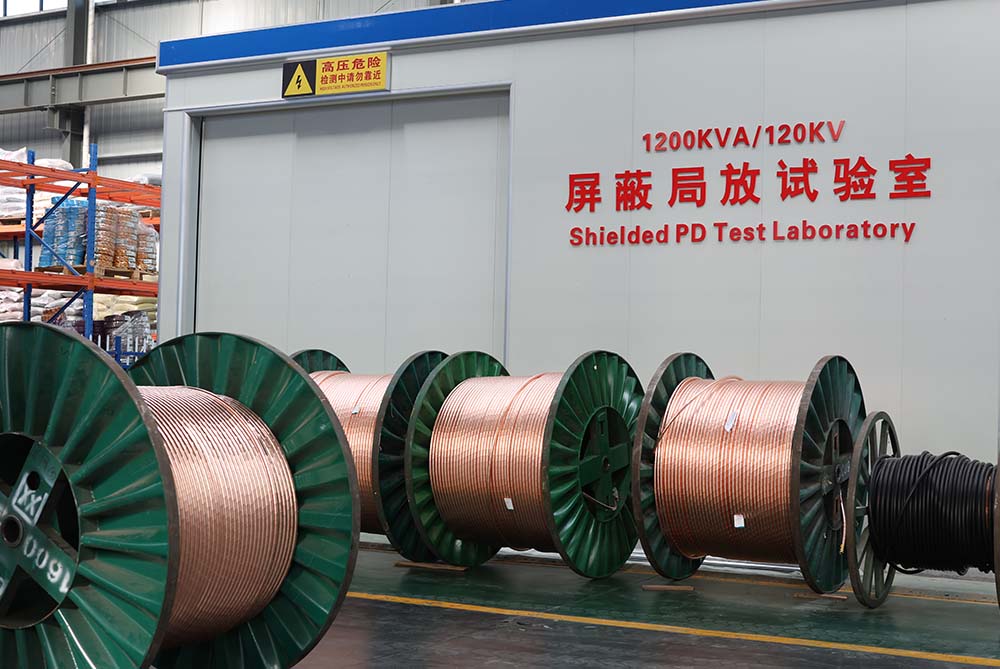

THE CABLE TEST
