N2XS2Y 18/30 (36)kV Cable
Voltage:	18/30 (36)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires with Open Helix Copper Tape Screen
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U

18/30 (36)kV

Temperature Rating

Maximum conductor operating temperature:90°C

Initial temperature at S.C.C for metallic screen:80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

20 x overall diameter

STANDARDS

IEC 60502-2, IEC 60228,

UV Resistant

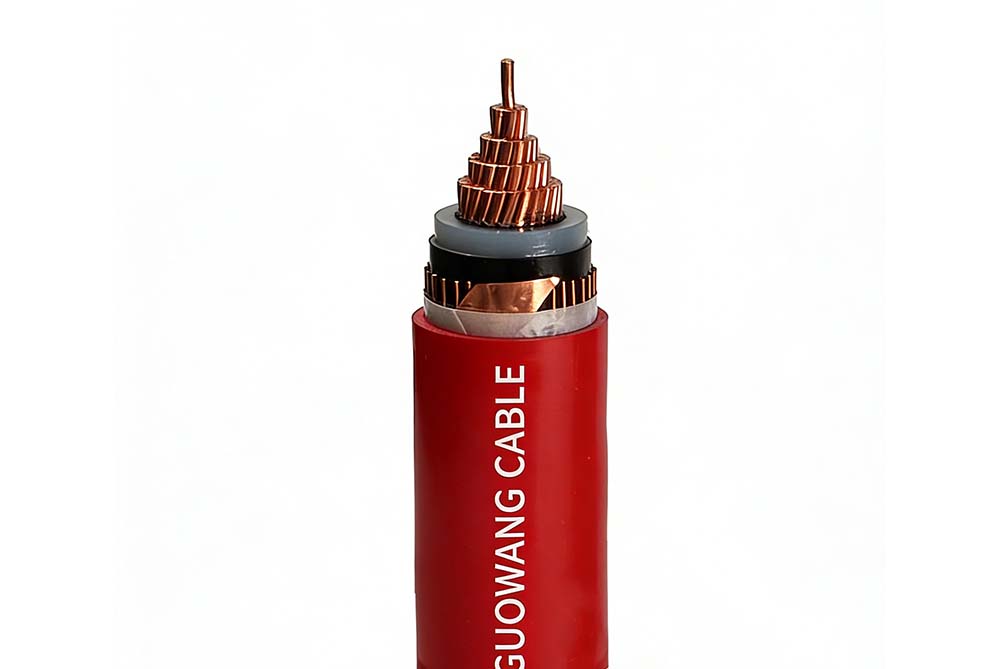

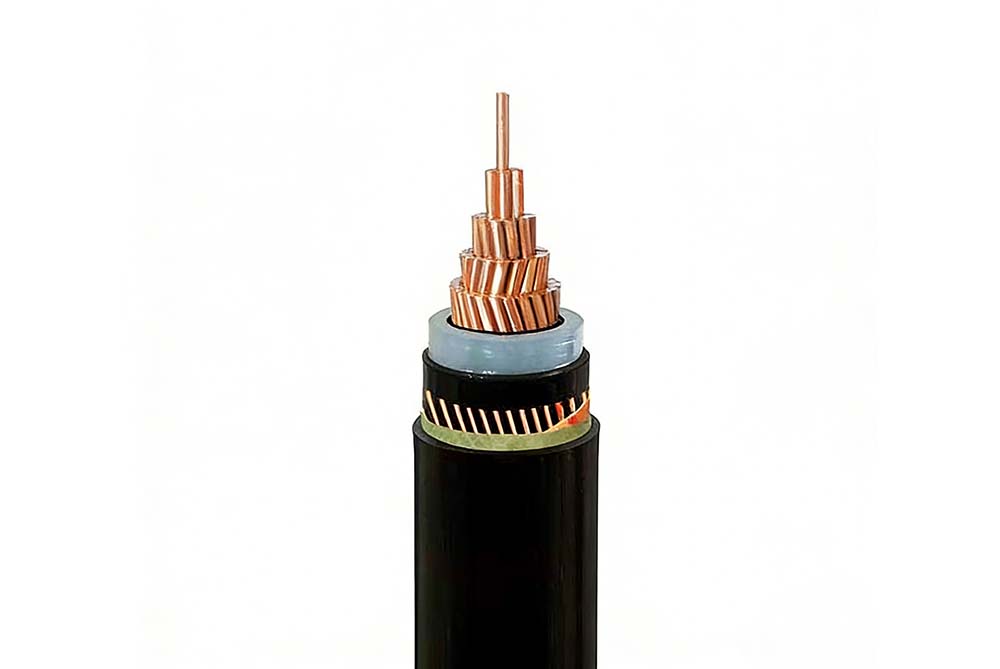

CONSTRUCTION

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive material (Bonded type)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (Strippabe type)

Screen

Copper wires with Open Helix Copper Tape Screen

Outer Sheath

MDPE (Medium Density Polyethylene)

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL SCREEN CROSS SECTIONAL AREA	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMTER	NOMINAL WEIGHT
NO. OF CORE	mm2	mm2	mm	mm	mm	kg/km
1	50	16	8	2	31.4	1203
1	70	16	8	2	33.2	1443
1	95	16	8	2.1	34.5	1715
1	120	16	8	2.1	35.9	1979
1	150	25	8	2.2	37.9	2377
1	185	25	8	2.2	39.4	2735
1	240	25	8	2.3	42.0	3349
1	300	25	8	2.4	44.6	3958
1	400	35	8	2.5	47.6	4914
1	500	35	8	2.6	51.2	5952
1	630	35	8	2.7	56.1	7429
1	800	35	8	2.8	60.4	9265
