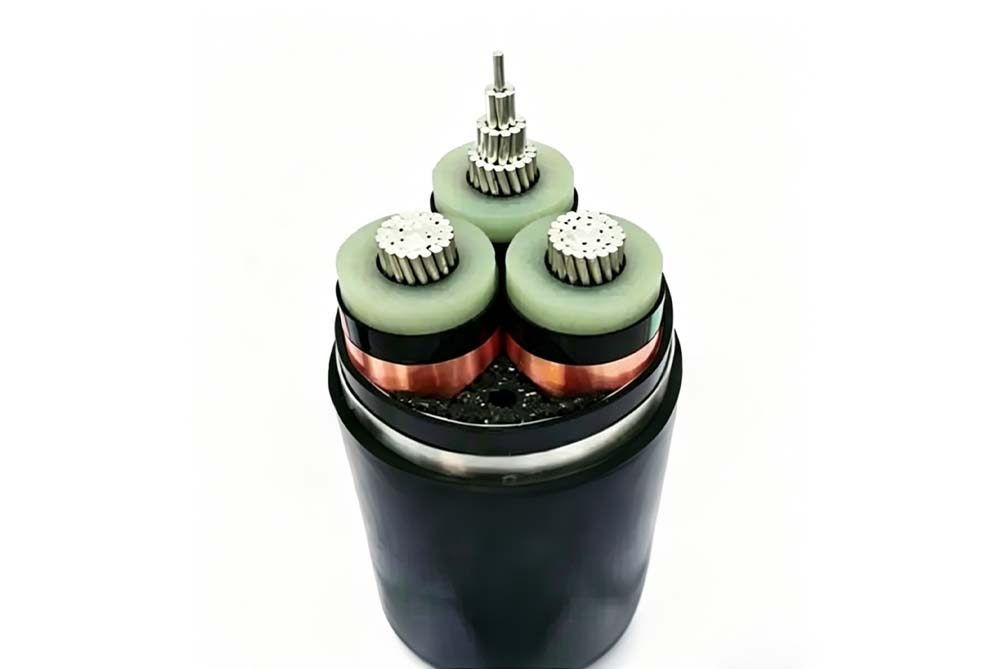

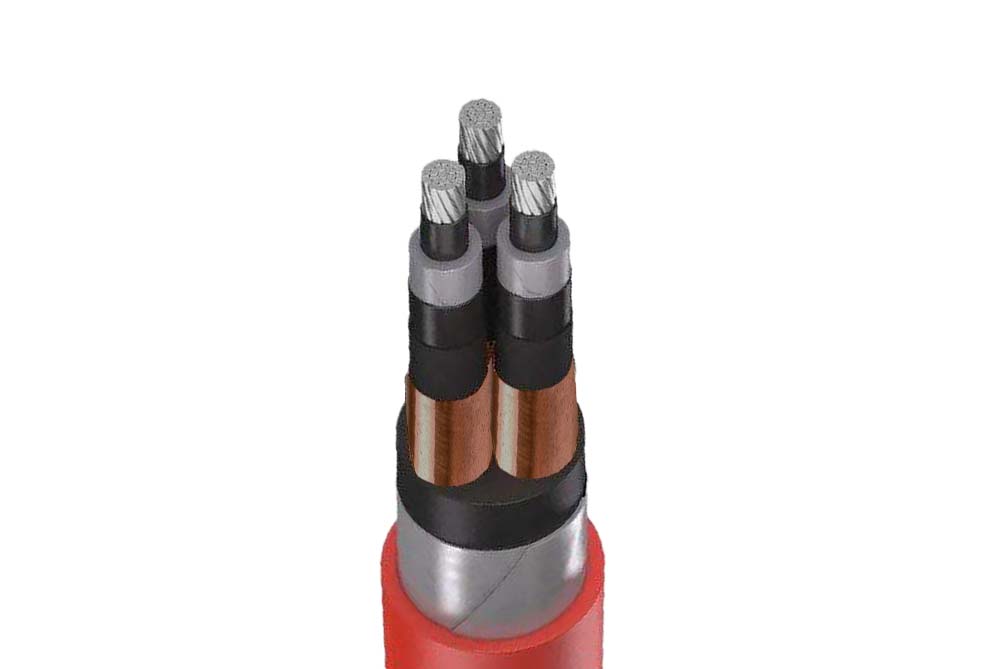

ARG7H1(O)R Cable
Voltage:

3.6/6 (7.2)kV, 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV

Structure:ConductorClass 2, compact stranded aluminium
InsulationHEPR (Hard Grade Ethylene Propylene Rubber) G7 quality, Pb free
ScreenPlain copper tapes wrapped
JacketPVC (Polyvinyl Chloride) compound, Rz quality
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Medium Voltage power cables suitable for energy transmission between transformer rooms and big power users. For laying on air, into tube or open pass. Suitable for buried installations, and installations complying with art. 4.3.11 of CEI 11-17 standard.

CHARACTERISTICS

Voltage

3.6/6 (7.2)kV,

6/10 (12)kV,

12/20 (24)kV,

18/30 (36)kV

Temperature Rating

-15°C to 90°C

Maximum temperature during short circuit: 250°C

Minimum installation temperature: 0°C

Minimum Bending Radius

12 x Outer diameter

Maximum Tensile Stress

30 N/mm²

STANDARDS

CEI 20-13, IEC 60502, CEI 20-16, IEC 60885-3,

EN 60332-1-2, EN 60754-1

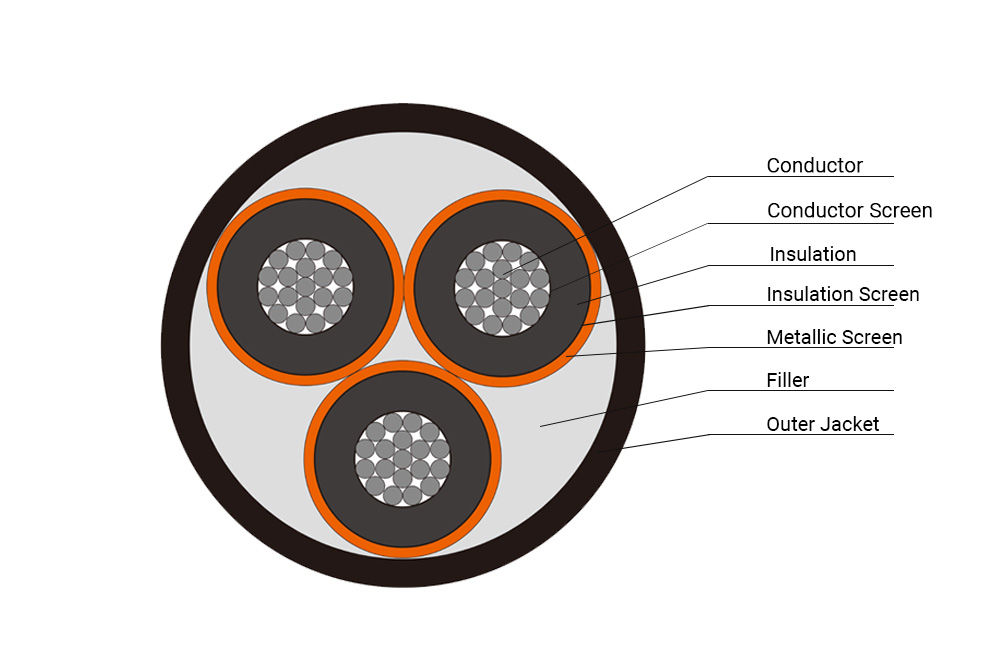

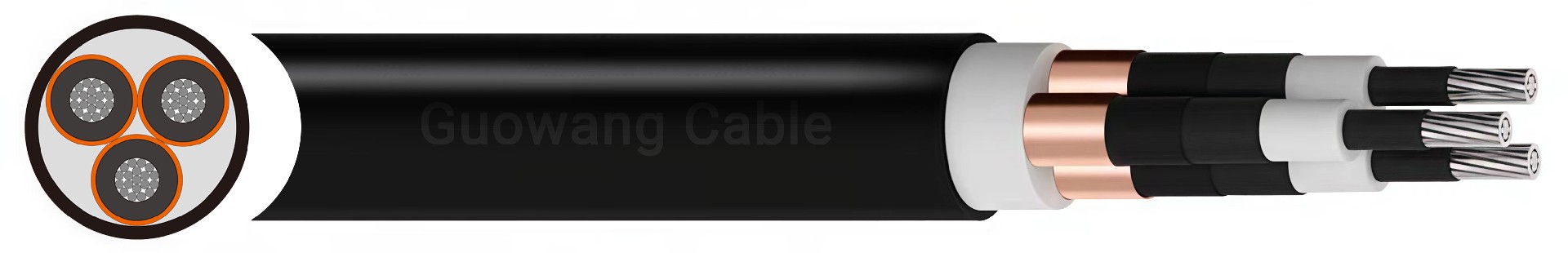

CONSTRUCTION

Conductor

Class 2, compact stranded aluminium

Conductor Screen

Extruded compound (only cables ≥ 6/10 kV)

Insulation

HEPR (Hard Grade Ethylene Propylene Rubber) G7 quality, Pb free

Insulation Screen

Extruded compound (only cables ≥ 6/10 kV)

Metallic Screen

Plain copper tapes wrapped

Filler

Extruded, penetrating between the cores

Outer Sheath

PVC (Polyvinyl Chloride) compound, Rz quality



DIMENSIONS 3.6/6 KV
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL CONDUCTOR DIAMETER
mm
NOMINAL INSULATION THICKNESS
mm
NOMINAL OUTER DIAMETER
mm
NOMINAL WEIGHT
kg/km
3256.103.031.801425
3357.103.034.061635
3508.203.036.751925
3709.903.040.502365
39511.403.044.452885
312013.103.048.003405
315014.403.051.003880
318516.203.055.154535
324018.403.061.005560
330020.653.065.956525
340023.603.073.258505


ELECTRICAL CHARACTERISTICS 3.6/6 KV
MAXIMUM CONDUCTOR DC RESISTANCE AT 20OC
/Km
CONDUCTOR RESISTANCE AT 90°C AND 50Hz
/Km
PHASE REACTANCE
/Km
CAPACITANCE AT 50Hz
µF/km
CURRENT RATING
A
In AirBuried
1.201.2700.150.14125125
0.8681.1130.140.15150145
0.6410.8220.130.17164163
0.4430.5680.130.19205204
0.3200.4110.120.21250245
0.2530.3250.120.23288280
0.2060.2650.110.25326312
0.1640.2110.110.27372354
0.1250.1610.100.30438408
0.1000.1300.0960.34502460
0.07780.1020.0930.38572520


DIMENSIONS 6/10 KV
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL CONDUCTOR DIAMETER
mm
NOMINAL INSULATION THICKNESS
mm
NOMINAL OUTER DIAMETER
mm
NOMINAL WEIGHT
kg/km
3256.103.438.101985
3357.03.440.502250
3508.13.442.902545
3709.73.447.103105
39511.43.450.803670
312012.93.454.604275
315014.33.457.604785
318516.03.461.905537
324018.33.468.206765
330021.03.473.207825
340023.63.481.3010100


ELECTRICAL CHARACTERISTICS 6/10 KV
MAXIMUM CONDUCTOR DC RESISTANCE AT 20OC
/Km
CONDUCTOR RESISTANCE AT 90°C AND 50Hz
/Km
PHASE REACTANCE
/Km
CAPACITANCE AT 50Hz
µF/km
CURRENT RATING
A
In AirBuried
1.201.2220.120.21113116
0.8681.1130.110.23137139
0.6410.8220.110.26162164
0.4430.5680.100.29203200
0.3200.4110.0970.32246239
0.2530.3250.0940.36285273
0.2060.2650.0910.38317304
0.1640.2110.0880.42366343
0.1250.1610.0850.47429398
0.1000.1300.0840.52491452
0.07780.1020.0820.57562511


DIMENSIONS 12/20 KV
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL CONDUCTOR DIAMETER
mm
NOMINAL INSULATION THICKNESS
mm
NOMINAL OUTER DIAMETER
mm
NOMINAL WEIGHT
kg/km
3256.105.548.102980
3357.05.550.403290
3508.15.552.803645
3709.75.556.454210
39511.45.560.704905
312012.95.564.955675
315014.35.568.056180
318516.05.572.207100
324018.35.578.908490
330021.05.583.959685
340023.65.591.4011975


ELECTRICAL CHARACTERISTICS 12/20 KV
MAXIMUM CONDUCTOR DC RESISTANCE AT 20OC
/Km
CONDUCTOR RESISTANCE AT 90°C AND 50Hz
/Km
PHASE REACTANCE
/Km
CAPACITANCE AT 50Hz
µF/km
CURRENT RATING
A
In AirBuried
1.201.2220.210.17125115
0.8681.1130.200.17150145
0.6410.8220.190.18175175
0.4430.5680.190.21220210
0.3200.4110.180.23265255
0.2530.3250.180.25305290
0.2060.2650.170.27345320
0.1640.2110.170.29406360
0.1250.1610.160.32470420
0.1000.1300.160.35590500
0.07780.1020.160.39640543


DIMENSIONS 18/30 KV
NOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL CONDUCTOR DIAMETER
mm
NOMINAL INSULATION THICKNESS
mm
NOMINAL OUTER DIAMETER
mm
NOMINAL WEIGHT
kg/km
18516.08.085.509680


ELECTRICAL CHARACTERISTICS 18/30 KV
MAXIMUM CONDUCTOR DC RESISTANCE AT 20OC
/Km
CONDUCTOR RESISTANCE AT 90°C AND 50Hz
/Km
PHASE REACTANCE
/Km
CAPACITANCE AT 50Hz
µF/km
CURRENT RATING
A
In AirBuried
0.1640.2110.120.22406361
