BS7870-4.10 19/33kV Copper Single Core Unarmoured LSZH Cable
Voltage:	19/33kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires - number/diameter of wires dependent on required earth fault rating Optional copper equalising tapes applied helically
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage cable for power distribution and power supply stations used in Utility and Industrial applications, for the rated voltage of 19/33 (36)kV. Optional conductor waterblocking and longitudinal waterblocking available.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

19/33 (36)kV

Temperature Rating

Conductor maximum operating temperature: 90°C

Maximum short-circuit temperature: 250°C

Minimum Bending Radius

10 x overall diameter

STANDARDS

IEC 60502-2, BS 7870-4.10, BS EN 60754-1/2,

BS EN 61034-1/2, BS EN 60332-1-2

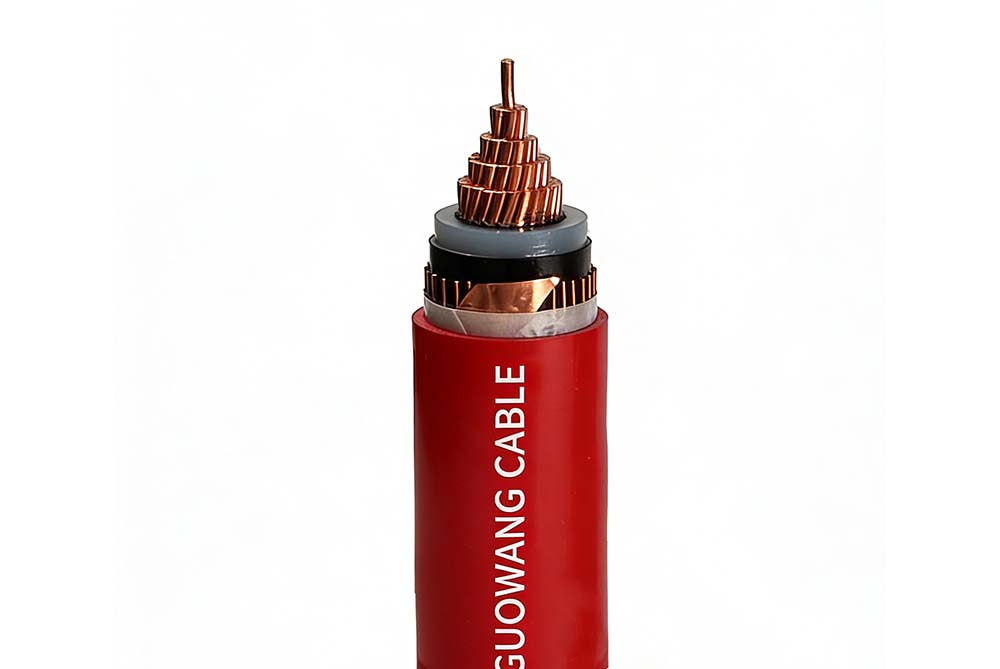

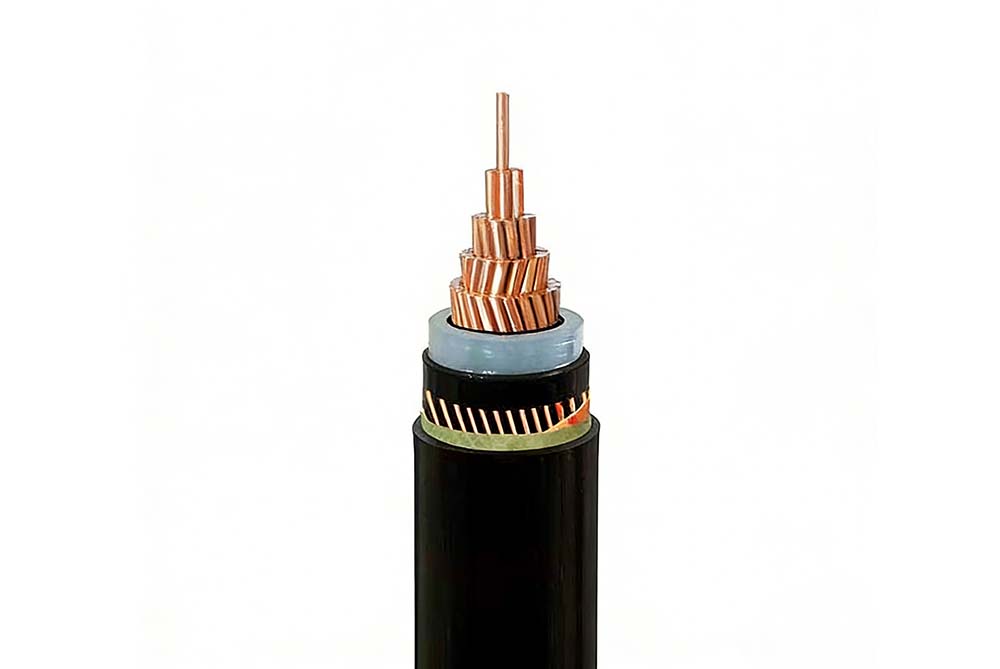

CONSTRUCTION

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene) - Fully bonded Paper separation tapes

Metallic Screen

Copper wires - number/diameter of wires dependent on required earth fault rating

Optional copper equalising tapes applied helically

Sheath

LSZH (Low Smoke Zero Halogen)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF SEMI CONDUCTIVE LAYER mm			MAXIMUM PULLING TENSION ON CABLE	NOMINAL WEIGHT
NO. OF CORES	mm2	Over Conductor	Over Insulation	Overall	kg	kg/km
1	70	9.8	27.0	34.1	350	1560
1	95	11.5	28.7	36.1	475	1880
1	120	12.8	30	37.5	600	2160
1	150	14.3	31.5	39.3	750	2480
1	185	15.9	33.1	41.0	925	2860
1	240	18.4	35.6	43.8	1200	3530
1	300	20.5	38.1	46.6	1500	4220
1	400	23.2	41.2	50.2	2000	5150
1	500	26.2	44.2	53.4	2500	6250
1	630	30.3	48.3	58.0	3150	7740
1	800	34.7	52.7	66.0	4000	9630
1	1000	38.0	57.3	71.0	5000	12200
