BS 7870-4.10 MDPE 6.35/11 (12)kVCable-BS7870-4.10-Medium Voltage Cable Manufacturers

BS 7870-4.10 MDPE 6.35/11 (12)kVCable
Voltage:	6.35/11 (12)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires And Open Helix Copper Tape
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage cable for power distribution and power supply stations used in Utility and Industrial applications, for the rated voltage of 6.35/11 (12)kV.

CHARACTERISTICS

Voltage Rating Uo/U

6.35/11 (12)kV

Temperature Rating

Maximum conductor operating temperature: +90ºC

Initial temperature at S.C.C for metallic screen: +80°C

Maximum conductor temperature during S.C: +250ºC

Maximum screen temperature during S.C: +150ºC

Minimum Bending Radius

20 x overall diameter

STANDARDS

BS 7870-4.10, BS EN 60228, HD620 S2 Part 10O / 11O

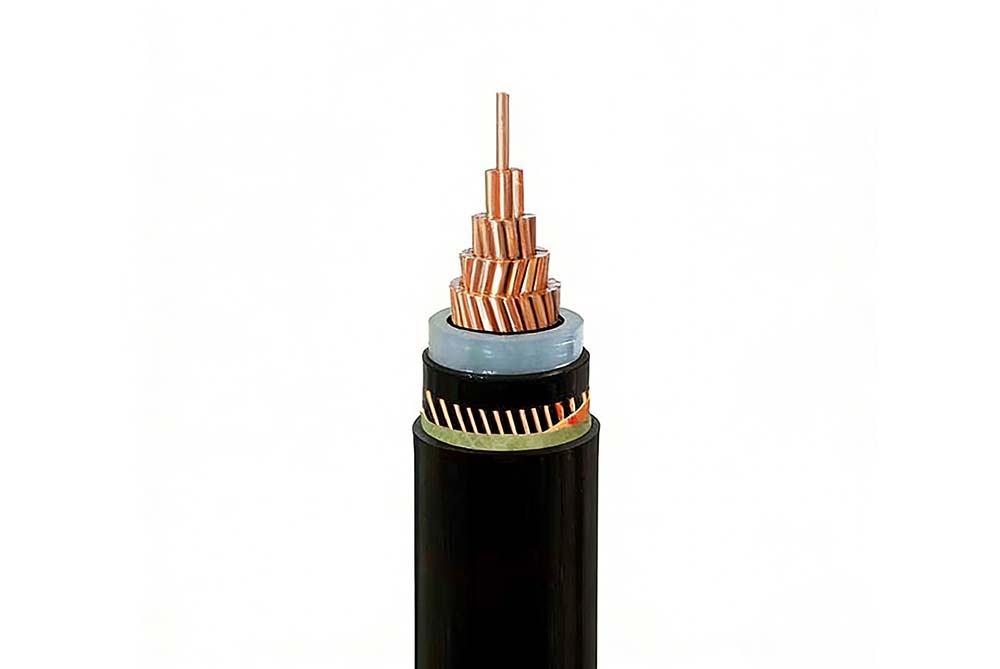

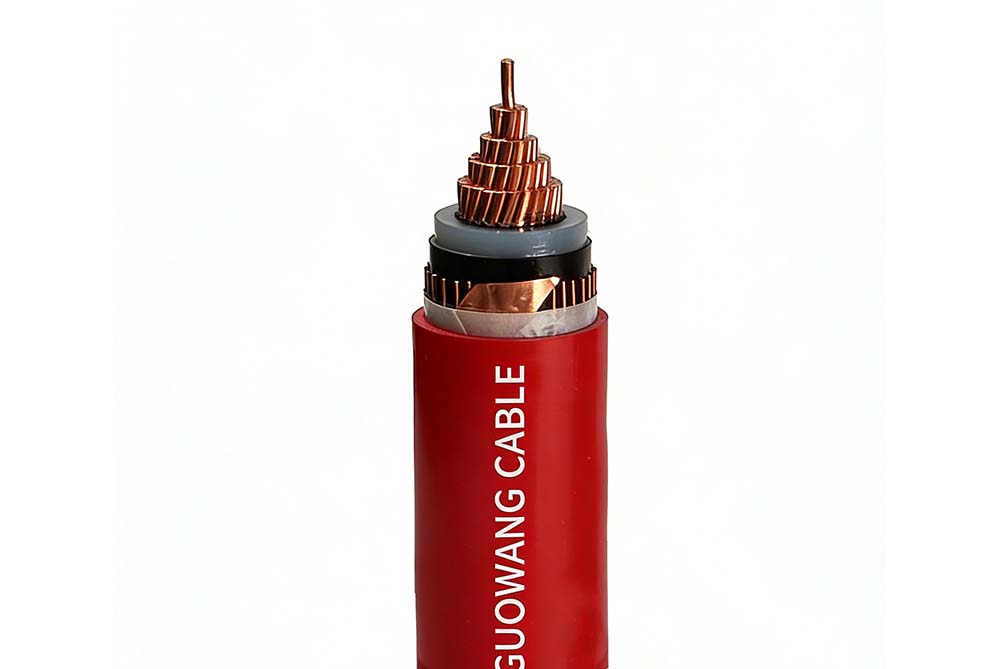

CONSTRUCTION

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Bonded)

Insulation

XLPE (Cross Linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Strippable)

Longitudinal Waterblock

Semi-conductive waterblocking tape

Metallic Screen

Copper Wires And Open Helix Copper Tape

Longitudinal Waterblock

Non-conductive waterblocking tape

Outer Sheath

MDPE (Medium Density Polyethylene)

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL INSULATION THICKNESS	NOMINAL SCREEN SECTIONAL AREA	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORE	mm2	mm	mm2	mm	mm	kg/km
1	70	3.4	35	1.34	27.6	917
1	95	3.4	35	1.43	29.3	1020
1	120	3.4	35	1.43	30.7	1122
1	150	3.4	35	1.51	33.1	1260
1	185	3.4	35	1.51	34.0	1378
1	240	3.4	35	1.6	36.6	1581
1	300	3.4	35	1.68	39.1	1810
1	400	3.4	35	1.77	42.0	2143
1	500	3.4	35	1.85	45.5	2521
1	630	3.4	35	1.94	49.8	3067
1	800	3.4	35	2.02	54.8	3749

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

THE CABLE TEST

We have world-class testing facility, and made rigorous testing regime, every meter of cable before leaving the factory must go through strict testing, testing qualified products will be shipped to customers, effectively ensure product quality and meet customer requirements.
