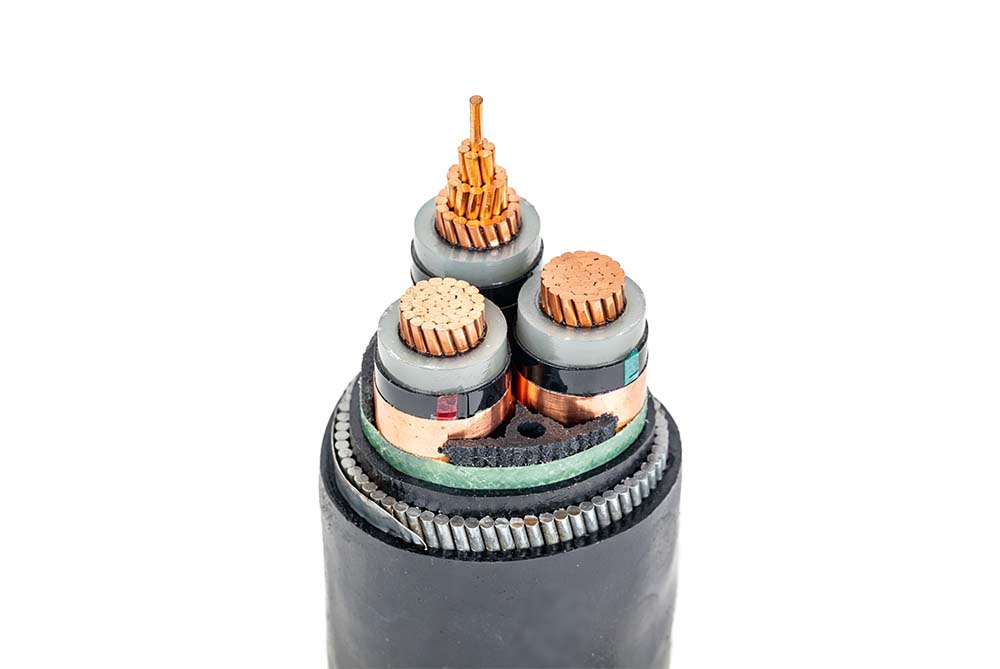

BS 7835 XLPE / LSZH Medium Voltage 19/33 (36)kV Cable | ||
Voltage: | 19/33 (36)kV | |
Structure: | Conductor | Class 2 stranded copper conductor |
Insulation | XLPE (Cross-Linked Polyethylene) | |
Armour | Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured) | |
Jacket | LSZH (Low Smoke Zero Halogen) |
Power cables for power networks, underground and in cable ducting, in installations with potential threat to life and equipment in the event of fire, smoke and toxic fumes emissions.
19/33 (36)kV
Fixed: 0°C to +90°C
Single core - Fixed: 15 x overall diameter
3 core - Fixed: 12 x overall diameter
BS 7835, IEC/EN 60228, IEC/EN 60502-2
Flame Retardant according to IEC/EN 60332-1-2,
IEC/EN 60332-3-24, EN 50266-2-4
Oxygen index: 35
0.5% HCL in accordance with BS EN 50267-2-1
Low smoke in accordance with IEC/EN 60754-1/2, IEC/EN
61034-1/2
Class 2 stranded copper conductor according to BS EN 60228 (previously BS 6360)
Semi-conductive XLPE (Cross-Linked Polyethylene)
XLPE (Cross-Linked Polyethylene) Type GP8 according to BS 7655
Semi-conductive XLPE (Cross-Linked Polyethylene)
Individual or overall copper tape screen according to BS 7835
PET (Polyethylene Terephthalate) fibres
Binding tape
LSZH (Low Smoke Zero Halogen)

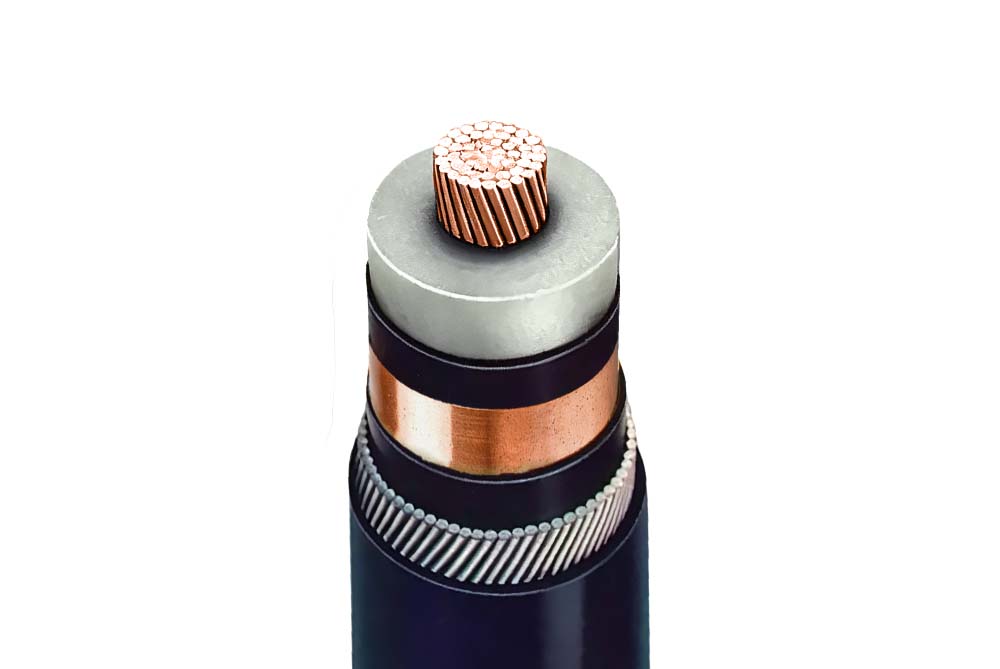

Single core: AWA (Aluminium Wire Armoured)

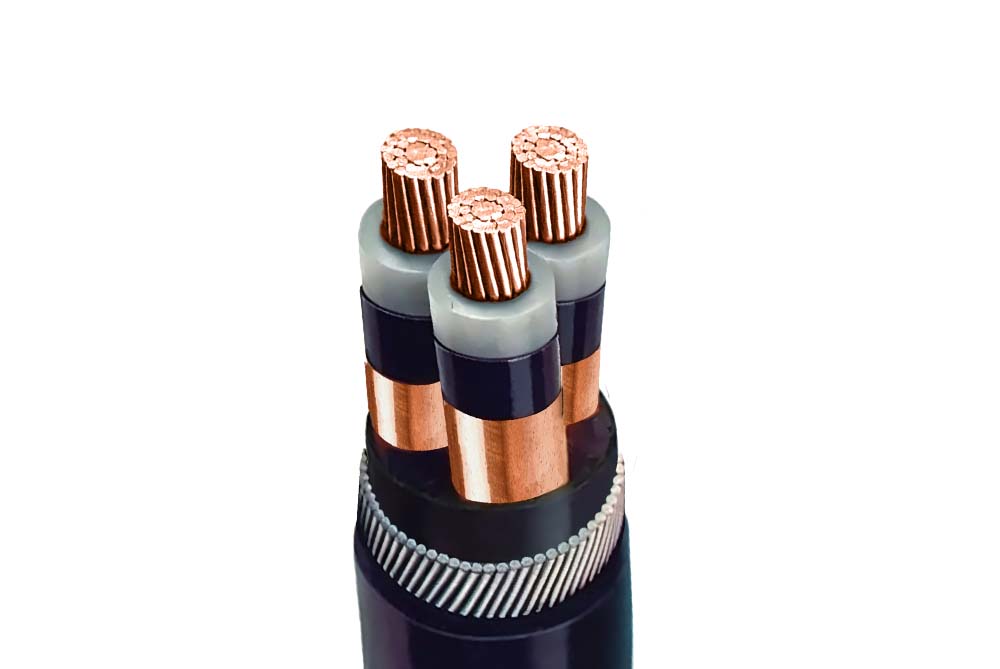

Multi-core: SWA (Steel Wire Armoured)
LSZH (Low Smoke Zero Halogen)
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | MINIMUM THICKNESS mm | NOMINAL THICKNESS OF SEMI CONDUCTIVE LAYER mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT | |||
mm2 | Insulation | Outer Sheath | Inner | Outer | Over Insulation | Overall | kg/km | |
1 | 50 | 3.95 | 1.32 | 0.50 | 0.80 | 19.50 | 29 | 1300 |
1 | 70 | 3.95 | 1.40 | 0.50 | 0.80 | 21.10 | 31 | 1600 |
1 | 95 | 3.95 | 1.48 | 0.50 | 0.80 | 22.80 | 34 | 2000 |
1 | 120 | 3.95 | 1.48 | 0.50 | 0.80 | 24.10 | 35 | 2250 |
1 | 150 | 3.95 | 1.56 | 0.50 | 0.80 | 26.00 | 37 | 2600 |
1 | 185 | 3.95 | 1.56 | 0.50 | 0.80 | 27.30 | 39 | 3000 |
1 | 240 | 3.95 | 1.64 | 0.50 | 0.80 | 30.00 | 42 | 3600 |
1 | 300 | 3.95 | 1.72 | 0.50 | 0.80 | 32.10 | 45 | 4500 |
1 | 400 | 3.95 | 1.80 | 0.50 | 0.80 | 35.00 | 48 | 5400 |
1 | 500 | 3.95 | 1.88 | 0.50 | 0.80 | 38.00 | 51 | 6500 |
1 | 630 | 3.95 | 1.96 | 0.50 | 0.80 | 42.10 | 56 | 8000 |
3 | 50 | 3.95 | 2.12 | 0.50 | 0.80 | 19.50 | 57 | 5250 |
3 | 70 | 3.95 | 2.20 | 0.50 | 0.80 | 21.10 | 61 | 6250 |
3 | 95 | 3.95 | 2.28 | 0.50 | 0.80 | 22.80 | 65 | 7300 |
3 | 120 | 3.95 | 2.36 | 0.50 | 0.80 | 24.10 | 68 | 8300 |
3 | 150 | 3.95 | 2.52 | 0.50 | 0.80 | 26.00 | 74 | 10250 |
3 | 185 | 3.95 | 2.60 | 0.50 | 0.80 | 27.30 | 77 | 11500 |
3 | 240 | 3.95 | 2.76 | 0.50 | 0.80 | 30.00 | 83 | 13800 |
3 | 300 | 3.95 | 2.84 | 0.50 | 0.80 | 32.10 | 88 | 16200 |
3 | 400 | 3.95 | 3.08 | 0.50 | 0.80 | 35.00 | 95 | 19300 |
3 | 500 | 3.95 | 3.24 | 0.50 | 0.80 | 38.00 | 103 | 23100 |
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Generally, we can deliver regular machines to customers immediately within 7-30 days.
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

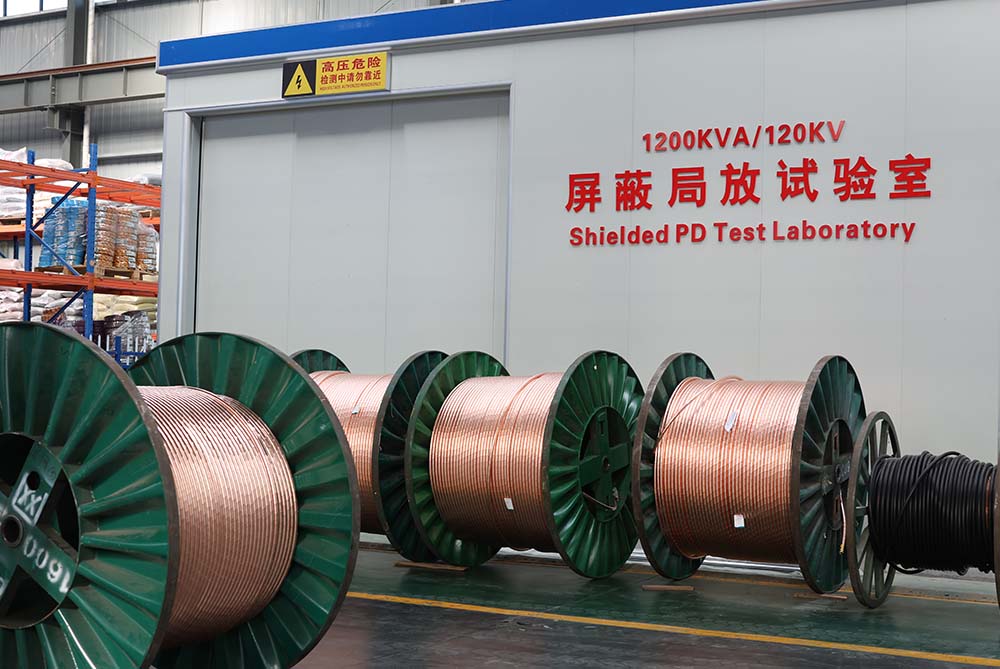

We have world-class testing facility, and made rigorous testing regime, every meter of cable before leaving the factory must go through strict testing, testing qualified products will be shipped to customers, effectively ensure product quality and meet customer requirements.
