BS 7835 XLPE LSZH 12.7/22kV Cable
Voltage:	12.7/22kV
Structure:	Conductor	Class 2 stranded copper conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Armour	Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured)
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage LSZH power cables for power networks, underground and in cable ducting.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

12.7/22kV

Temperature Rating

Fixed: 0°C to +90°C

Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

STANDARDS

BS 7835, IEC/EN 60228

Flame Retardant according to IEC/EN 60332-1-2

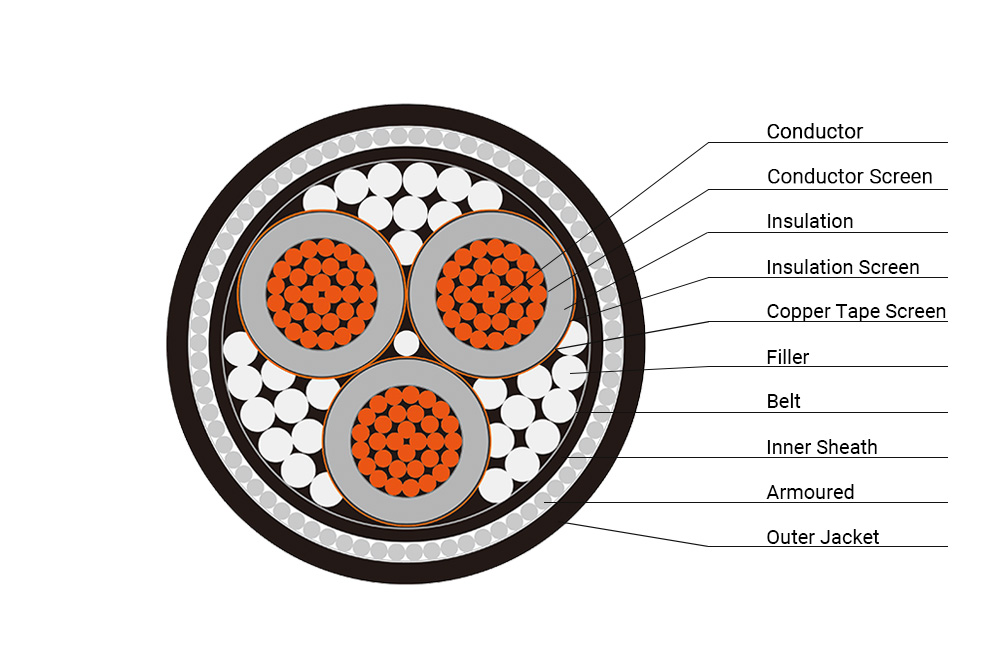

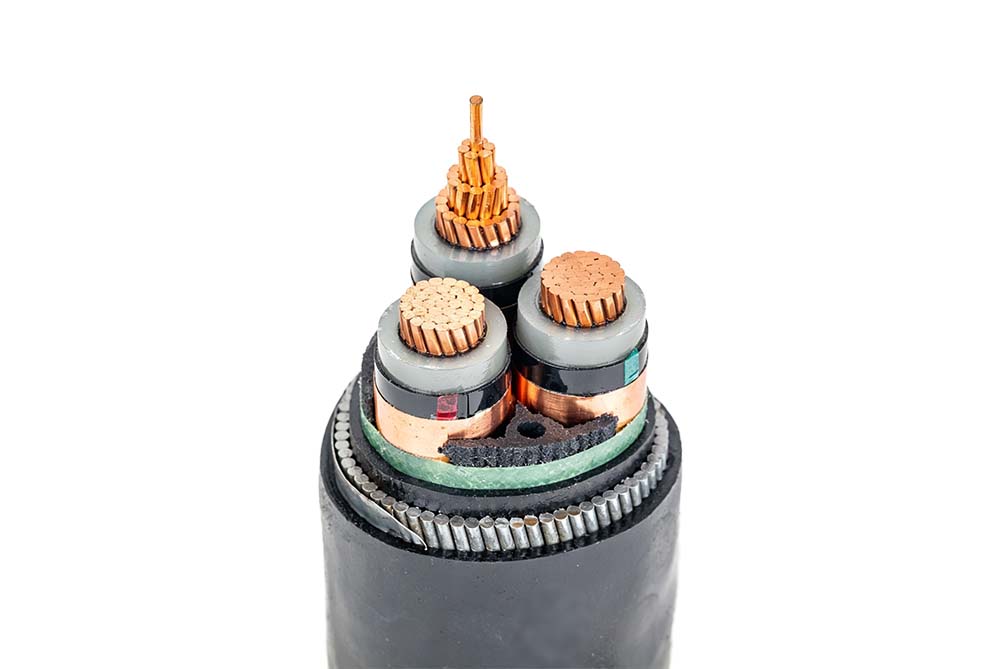

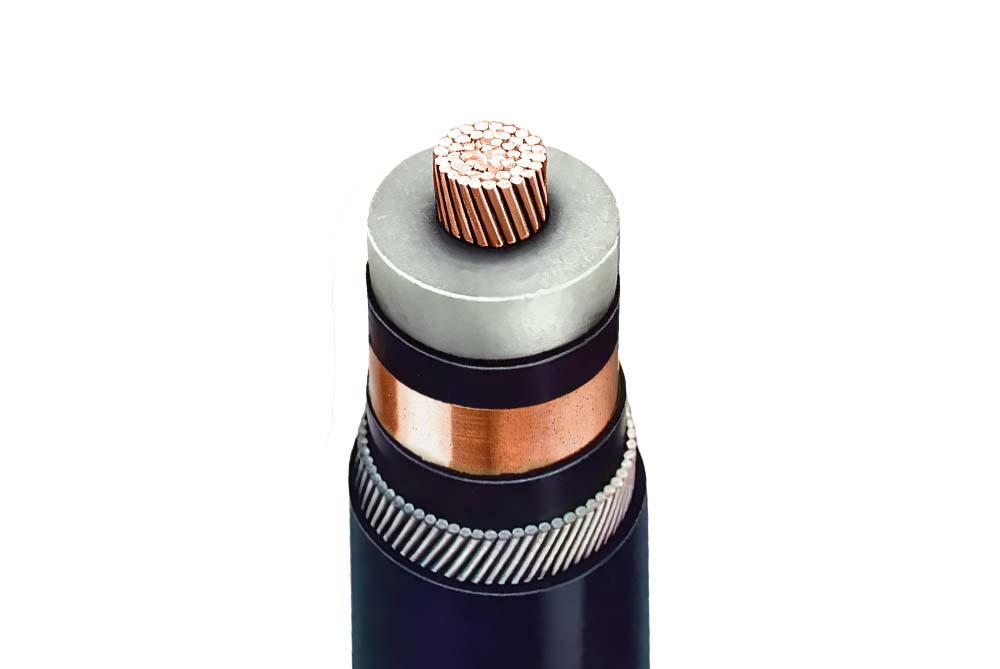

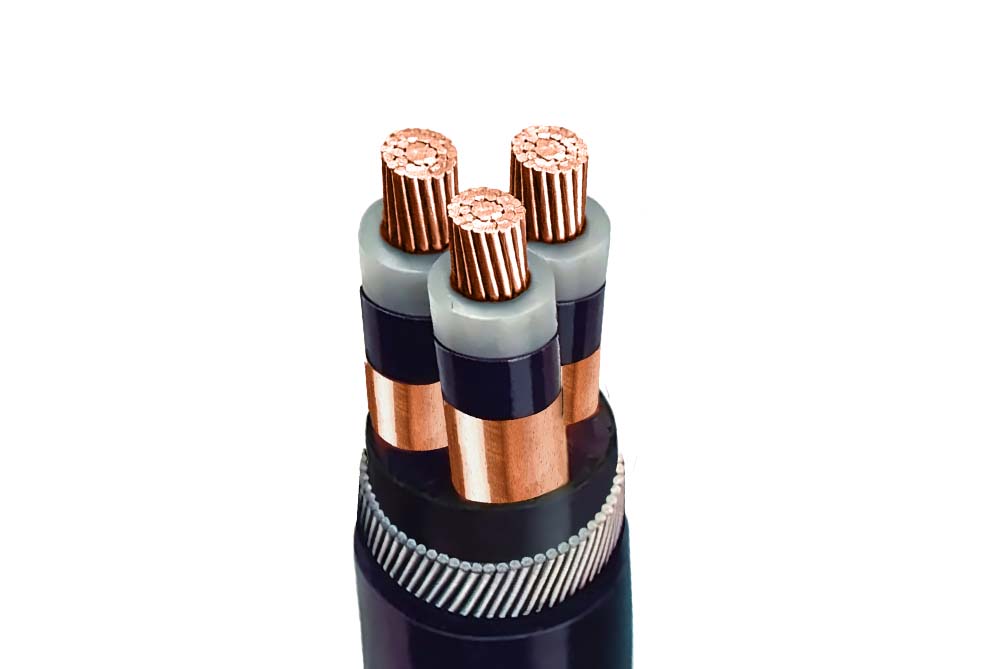

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen

Individual or collective overall copper tape screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

Sheath

LSZH (Low Smoke Zero Halogen)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	MINIMUM THICKNESS mm		NOMINAL THICKNESS OF SEMI CONDUCTIVE LAYER mm		NOMINAL DIAMETER mm		NOMINAL WEIGHT
NO. OF CORES	mm2	Insulation	Outer Sheath	Inner	Outer	Over Insulation	Overall	kg/km
1	50	4.85	1.40	0.50	0.80	21.30	32	1500
1	70	4.85	1.48	0.50	0.80	23.00	34	1800
1	95	4.85	1.48	0.50	0.80	24.60	36	2100
1	120	4.85	1.56	0.50	0.80	26.00	37	2500
1	150	4.85	1.56	0.50	0.80	27.70	40	2750
1	185	4.85	1.64	0.50	0.80	29.30	41	3100
1	240	4.85	1.72	0.50	0.80	31.80	45	4000
1	300	4.85	1.80	0.50	0.80	34.00	47	4600
1	400	4.85	1.88	0.50	0.80	36.70	50	5600
1	500	4.85	1.96	0.50	0.80	39.70	53	6750
1	630	4.85	2.04	0.50	0.80	44.00	58	8200
3	50	4.85	2.20	0.50	0.80	21.30	61	5800
3	70	4.85	2.28	0.50	0.80	23.00	65	6800
3	95	4.85	2.44	0.50	0.80	24.60	69	8000
3	120	4.85	2.52	0.50	0.80	26.00	74	9700
3	150	4.85	2.68	0.50	0.80	27.70	78	10900
3	185	4.85	2.76	0.50	0.80	29.10	81	12250
3	240	4.85	2.84	0.50	0.80	31.80	87	14500
3	300	4.85	3.00	0.50	0.80	24.00	93	16900
3	400	4.85	3.24	0.50	0.80	36.70	100	20200
3	500	4.85	3.40	0.50	0.80	39.70	107	24000
