BS 7835 XLPE LSZH 6.35/11 (12)kV Cable
Voltage:	6.35/11 (12)kV
Structure:	Conductor	Class 2 stranded copper conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Armour	Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured)
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Power cables for power networks, underground, outdoors and in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

6.35/11 (12)kV

Temperature Rating

Fixed: 0°C to +90°C

Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

STANDARDS

BS 7835, EN 60228, IEC/EN 60502-2,

Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/

EN 61034-1/2

Flame Retardant according to BS EN/IEC 60332-1-2, BS EN/IEC

60332-3-24

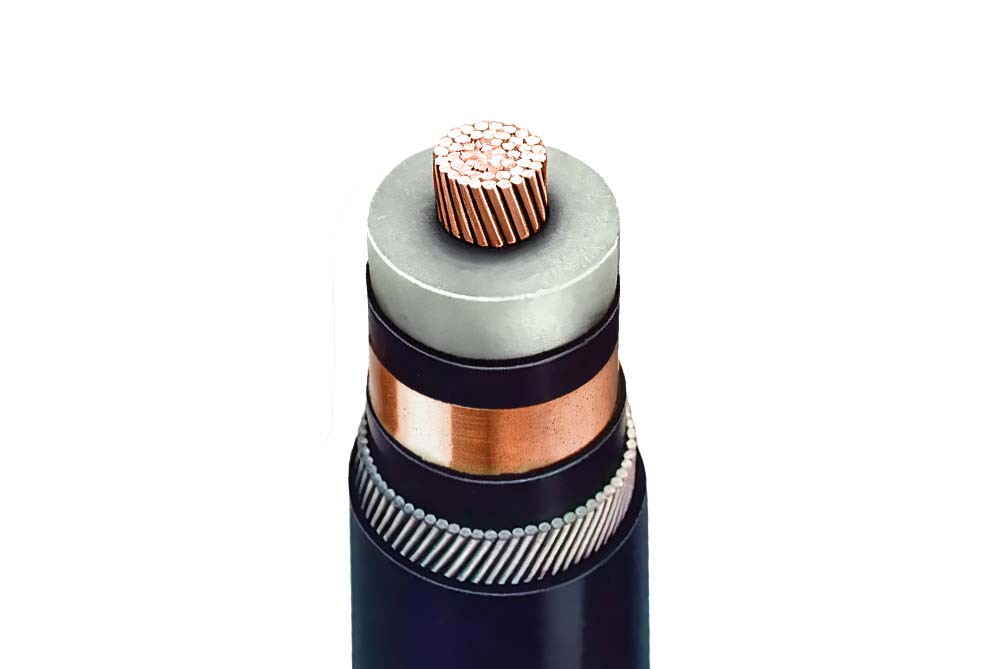

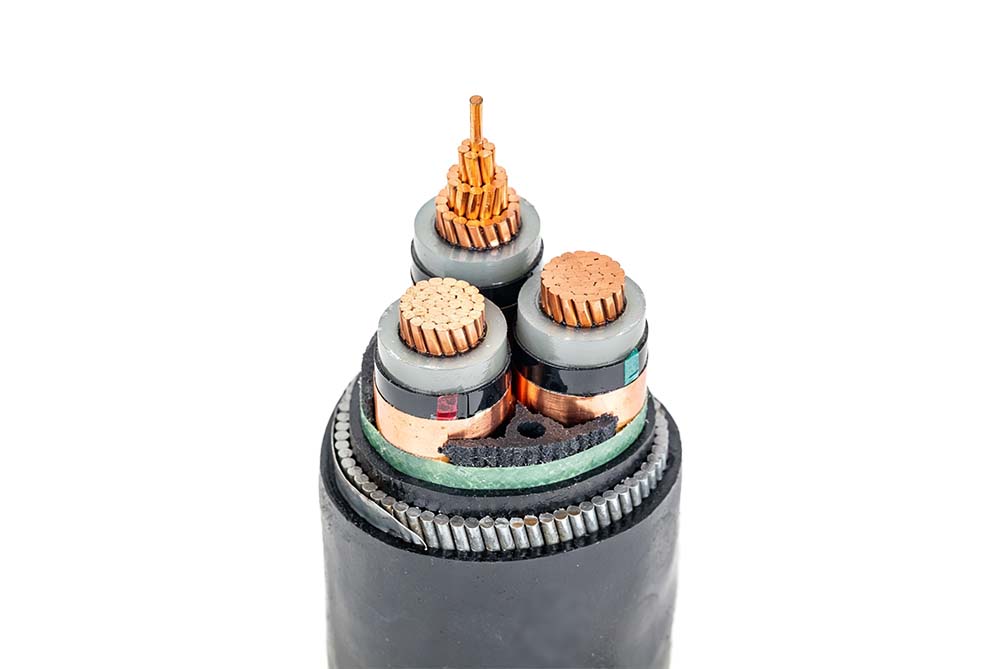

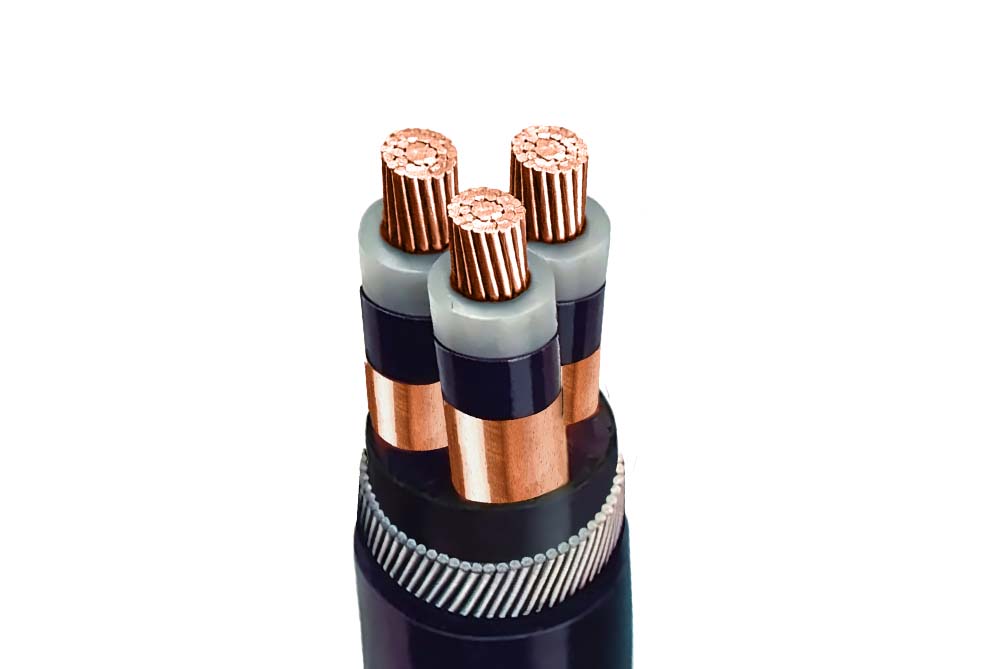

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen

Individual or overall copper tape screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Steel Wire Armoured)

Sheath

LSZH (Low Smoke Zero Halogen)

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER mm			NOMINAL WEIGHT
NO. OF CORE	mm2	Under Armour	Over Armour	Overall	kg/km
1	50	21.7	24.9	28.5	1200
1	70	23	26.20	30.0	1500
1	95	24.7	27.9	31.7	1600
1	120	26.7	29.9	33.9	2100
1	150	27.5	31.5	35.7	2500
1	185	29.3	33.3	37.5	2900
1	240	31.6	35.6	40.0	3600
1	300	34.6	38.6	43.0	4300
1	400	37	41	45.8	5200
1	500	40.5	45.5	50.5	6500
1	630	44.6	49.6	54.8	8000
1	800	48.8	53.8	59.2	9850
1	1000	53.5	58.5	64.3	12100
3	35	41.6	46.6	51.6	4700
3	50	44.4	49.4	54.6	5300
3	70	48.1	53.1	58.5	6300
3	95	52	57	62.6	7300
3	120	55.6	60.6	66.6	8400
3	150	58.6	63.60	69.8	9600
3	185	62.7	67.7	74.1	11000
3	240	68.1	74.4	81.2	14000
3	300	73.5	79.8	87.0	16600
3	400	78.3	84.6	92.2	20000

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

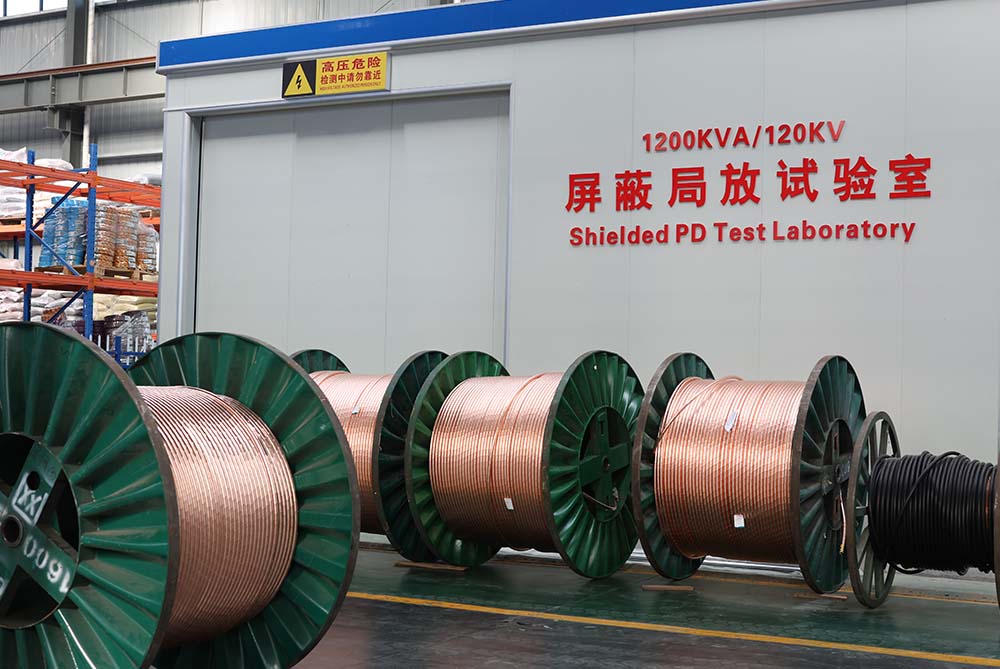

THE CABLE TEST
