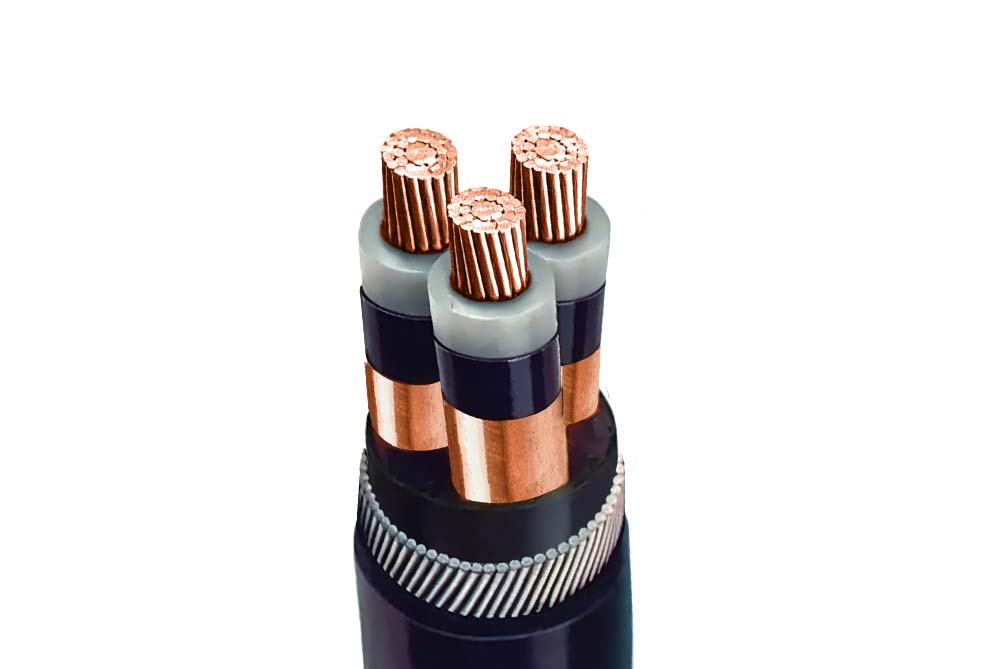

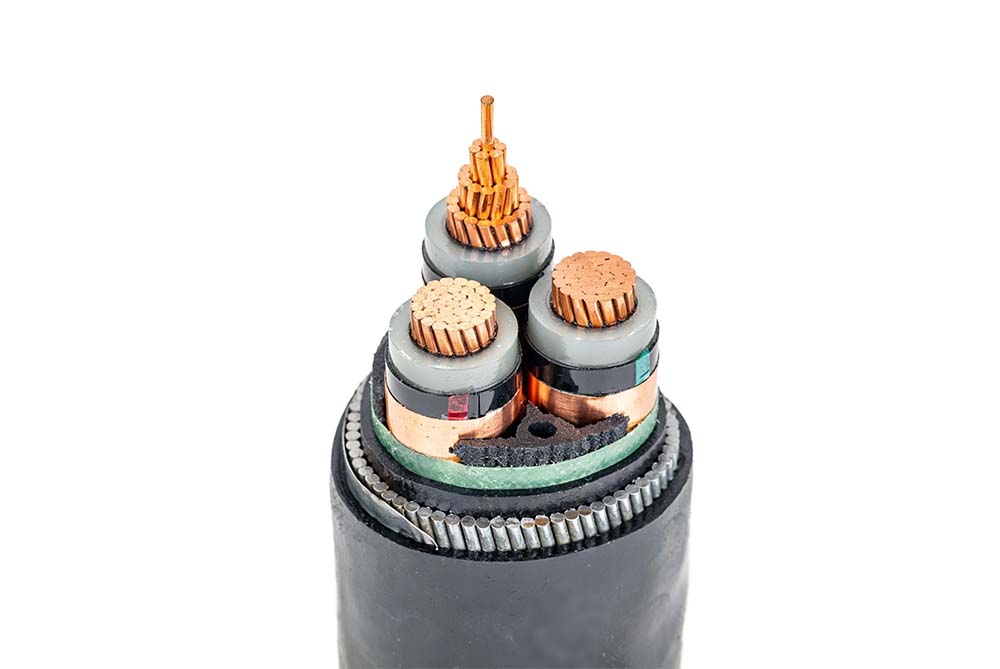

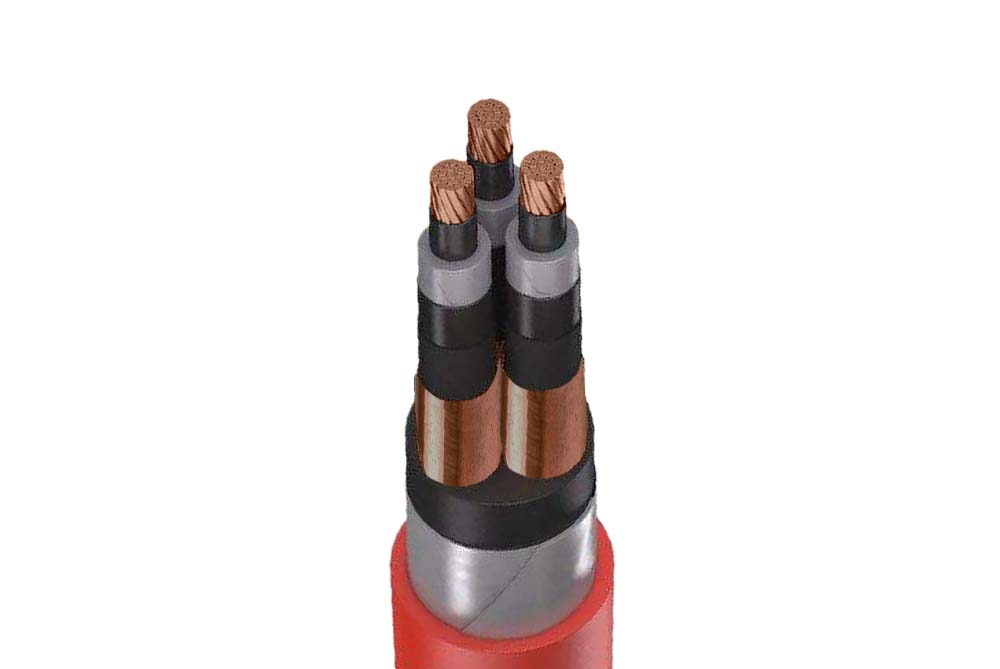

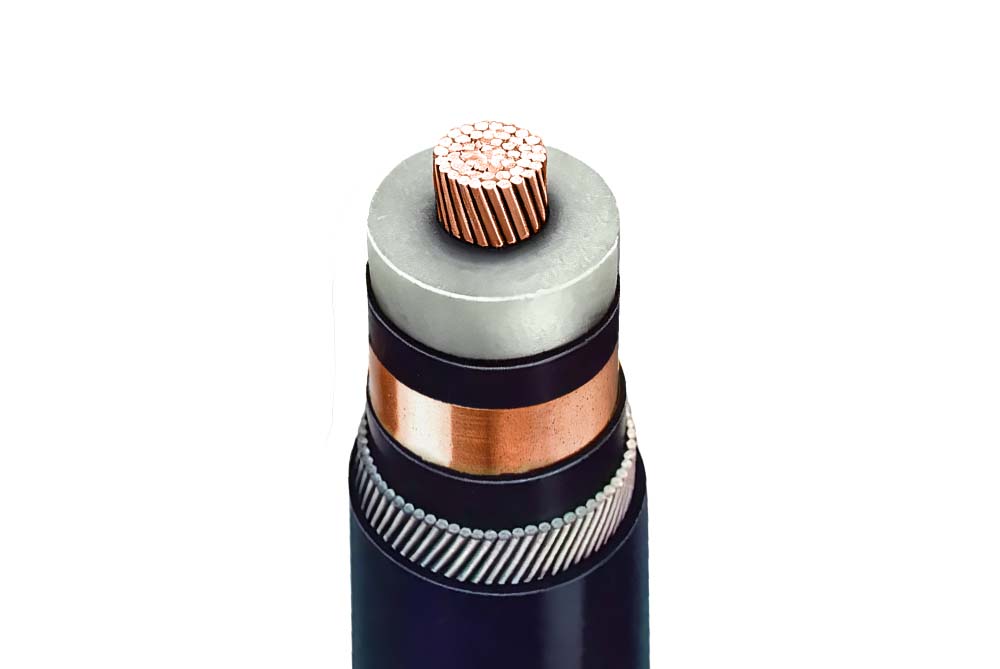

| BS 6622 XLPE PVC 12.7/22kV Cable | ||
| Voltage: | 12.7/22kV | |
| Structure: | Conductor | Class 2 Stranded Copper |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Armour | Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured | |
| Jacket | PVC (Polyvinyl Chloride) | |
Medium voltage PVC power cables for power networks, underground and in cable ducting.
12.7/22 (24) kV
Fixed: 0°C to +90°C
Initial temperature at S.C.C for metallic screen: 80°C
Maximum conductor temperature during S.C: 250°C
Fixed: 15 x overall diameter
BS 6622, IEC/EN 60228
Flame Retardant according to IEC/EN 60332-1-2
Class 2 stranded copper
Semi-conductive XLPE (Cross-Linked Polyethylene)
XLPE (Cross-Linked Polyethylene)
Semi-conductive XLPE (Cross-Linked Polyethylene)
Individual or collective overall copper tape screen
PET (Polyethylene Terephthalate) fibres
Binding tape
PVC (Polyvinyl Chloride)
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
PVC (Polyvinyl Chloride)
Red Black
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 | 70 | 5.5 | 2.1 | 33.6 | 1717 |
| 1 | 95 | 5.5 | 2.1 | 34.9 | 2013 |
| 1 | 120 | 5.5 | 2.2 | 36.5 | 2318 |
| 1 | 150 | 5.5 | 2.2 | 38.1 | 2646 |
| 1 | 185 | 5.5 | 2.3 | 39.8 | 3048 |
| 1 | 240 | 5.5 | 2.3 | 42.2 | 3688 |
| 1 | 300 | 5.5 | 2.5 | 46.2 | 4515 |
| 1 | 400 | 5.5 | 2.6 | 49 | 5430 |
| 1 | 500 | 5.5 | 2.7 | 52.8 | 6593 |
| 1 | 630 | 5.5 | 2.8 | 57.7 | 8162 |
| 1 | 800 | 5.5 | 2.9 | 62 | 10092 |
| 3 | 70 | 5.5 | 3.1 | 64 | 6986 |
| 3 | 95 | 5.5 | 3.2 | 67.2 | 8072 |
| 3 | 120 | 5.5 | 3.4 | 72.4 | 10002 |
| 3 | 150 | 5.5 | 3.5 | 76.1 | 11266 |
| 3 | 185 | 5.5 | 3.6 | 79.7 | 12665 |
| 3 | 240 | 5.5 | 3.8 | 85.5 | 15126 |
| 3 | 300 | 5.5 | 3.9 | 90.9 | 17436 |
| 3 | 400 | 5.5 | 4.2 | 97.1 | 20706 |
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Generally, we can deliver regular machines to customers immediately within 7-30 days.
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；The sheathed average thickness and thinnest point
Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
